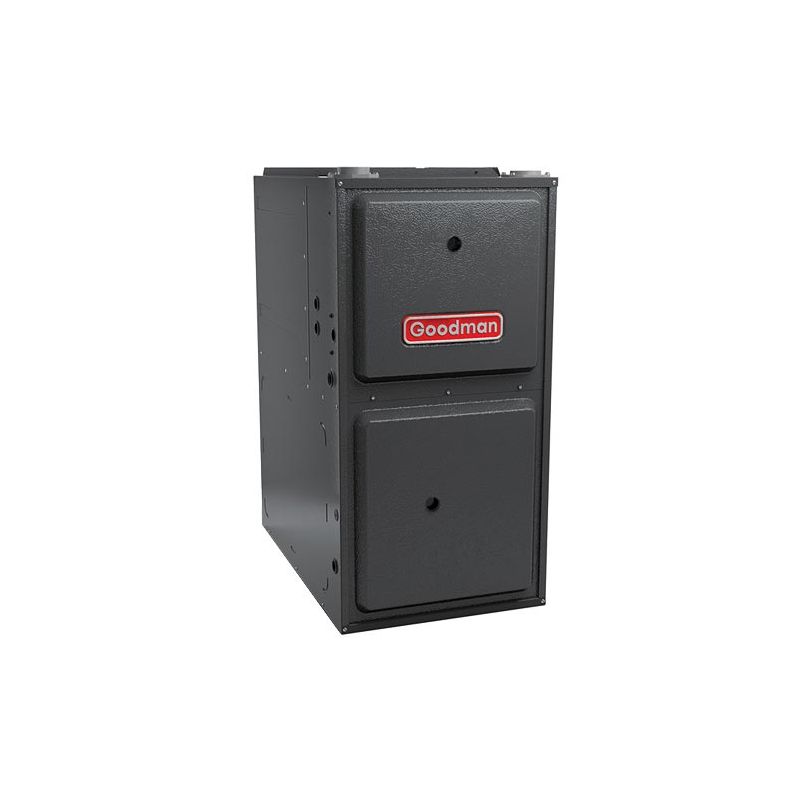

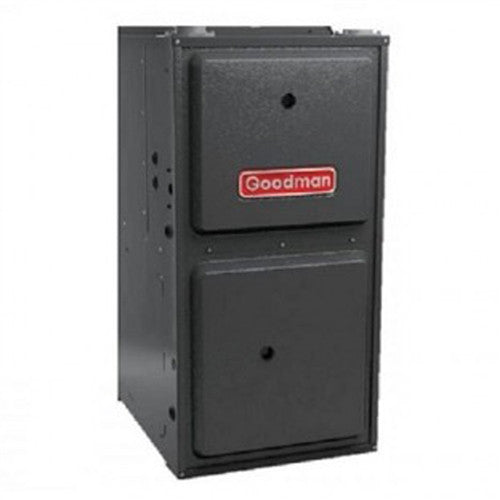

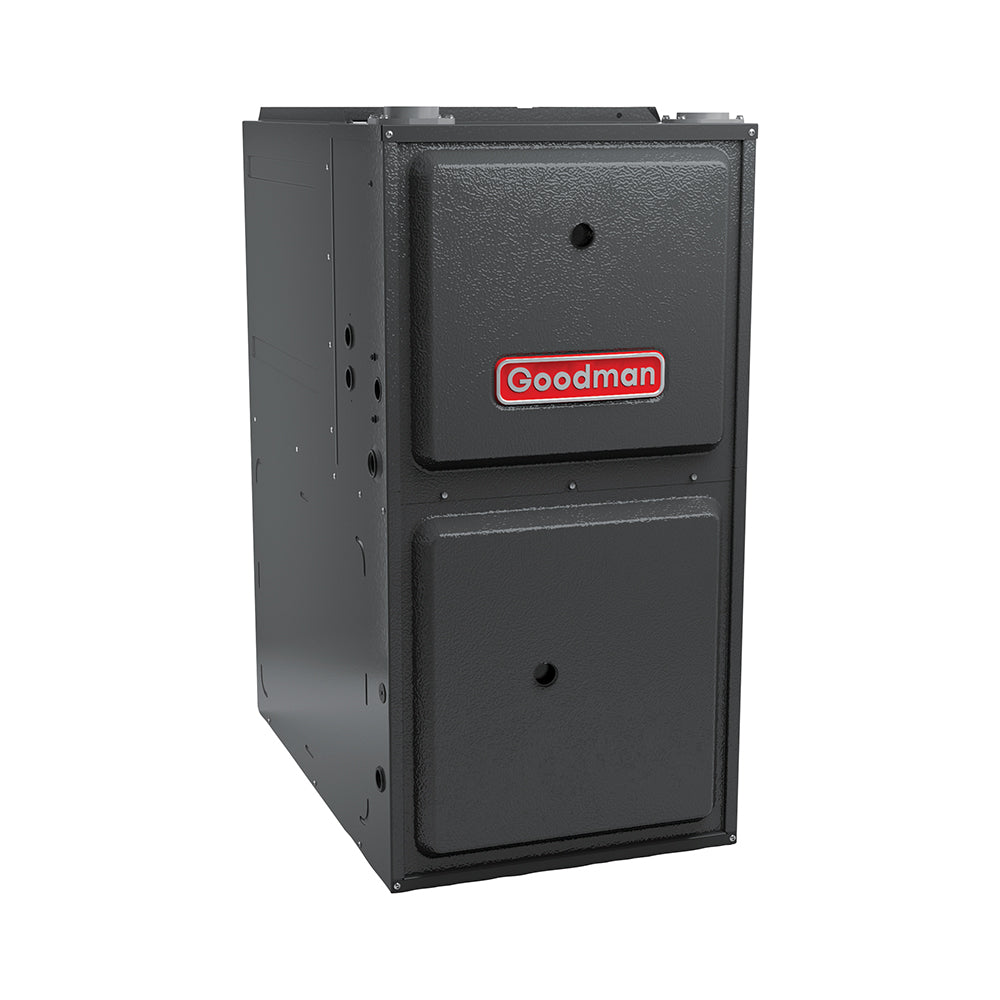

Goodman GMEC960403AN 96% AFUE Gas Furnace Multi Speed ECM, Two Stage 40000 BTU

Product Description

The Goodman GMEC960403AN 96% AFUE gas furnace features a multi-speed ECM and a two-stage operation. Designed for upflow or horizontal installation, this indoor unit provides 40000 BTU/H. It features a heavy-duty aluminized-steel tubular heat exchanger and a stainless-steel sloped secondary heat exchanger. The unit is AHRI certified and ETL listed.

• Heavy-duty aluminized-steel tubular heat exchanger
• Stainless-steel sloped secondary heat exchanger
• Silicon Nitride igniter

Product Highlights

This Goodman gas furnace offers efficient and reliable heating with its two-stage gas valve and multi-speed ECM blower motor.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GMEC960403AN
• Country of Origin: USA

Technical Specifications

• AFUE: 96 %
• Class: Gas Furnace
• Family: GMEC96
• Category: Gas Furnace
• Keywords: GMEC960403AN
• Unit Type: Indoor
• Unit Depth: 29 in
• Unit Width: 14 in
• Power Phase: 1 Ph
• Unit Height: 34-1/2 in
• Power Voltage: 115 V
• Power Frequency: 60 Hz
• Model Efficiency: 0.96
• Motor Speed Type: Multi Speed ECM
• Prop65 Label Required: TRUE
• High-Fire Input Capacity: 40000 Btu
• Airflow Rate High Heating: 1135 ft³/min
• High-Fire Output Capacity: 38440
• Air Flow Capacity: 1200 Cubic Feet Per Minute
• Size: 40K BTU (Heating), 14" (Cabinet Width)
• Installation Type: Ducted
• Communication Feature: No
• FER Compliant: Yes
• Installation Configuration: Upflow/Horizontal
• Produced in US: Yes
• Heat Exchanger Type: Gas
• Number Of Burners: 2.0
• Temperature Rise Range High Fire: 20-50 °F
• Temperature Rise Range Low Fire: 20-50 °F
• Current Type: AC
• ANSI Certifed: Yes
• Blower Available AC Tonnage High: 3 Tonnage
• Blower Available AC Tonnage Low: 1.5 Tonnage
• Blower Motor RPM: 1200 r/min
• Dimensions - (Blower Diameter): 11 in
• Dimensions - (Blower Width): 6 in
• ETL Listed: Yes
• External Static Pressure - (Rated): 0.5
• Minimum Clearances to Combustible Materials: 1 ft
• Low-Fire Input Capacity: 28000
• Low-Fire Output Capacity: 26908
• Gas Valve Type: Two Stage
• Vent Diameter: 2 in;3 in
• Proposition 65 Label: Yes
• Heating Capacity: 40,000 BTU
• Stages: Two-Stage
• Motor Type: Multi-Speed ECM
• Voltage: 115 VAC
• Phase: 1 Phase
• Frequency: 60 Hz
• CFM: 1200 CFM
• Cabinet Width: 14"
• Energy Star: Yes
• Maximum CFM: 1,191
• Configuration: Upflow/Horizontal
• Height: 34.5"
• Depth: 28.75"
• Blower Motor HorsePower: 1/2 metric hp
• Amperage Rating: 8.6 A
• HP Rating: 1/2 hp at 1075 rpm
• Input BTU Rating: 40000 Btu/hr
• Connection Type: 1/2 in FPT Gas
• Fuse Rating: 15 A
• Material: Heavy Gauge Steel
• BtuH Input: 40000
• BtuH Output: 38,400
• CFM @ 0.5" ESP: 1,081
• LoNox: No
• Nom. CFM: 1,200
• Wt. Lbs.: 106
