Product Description

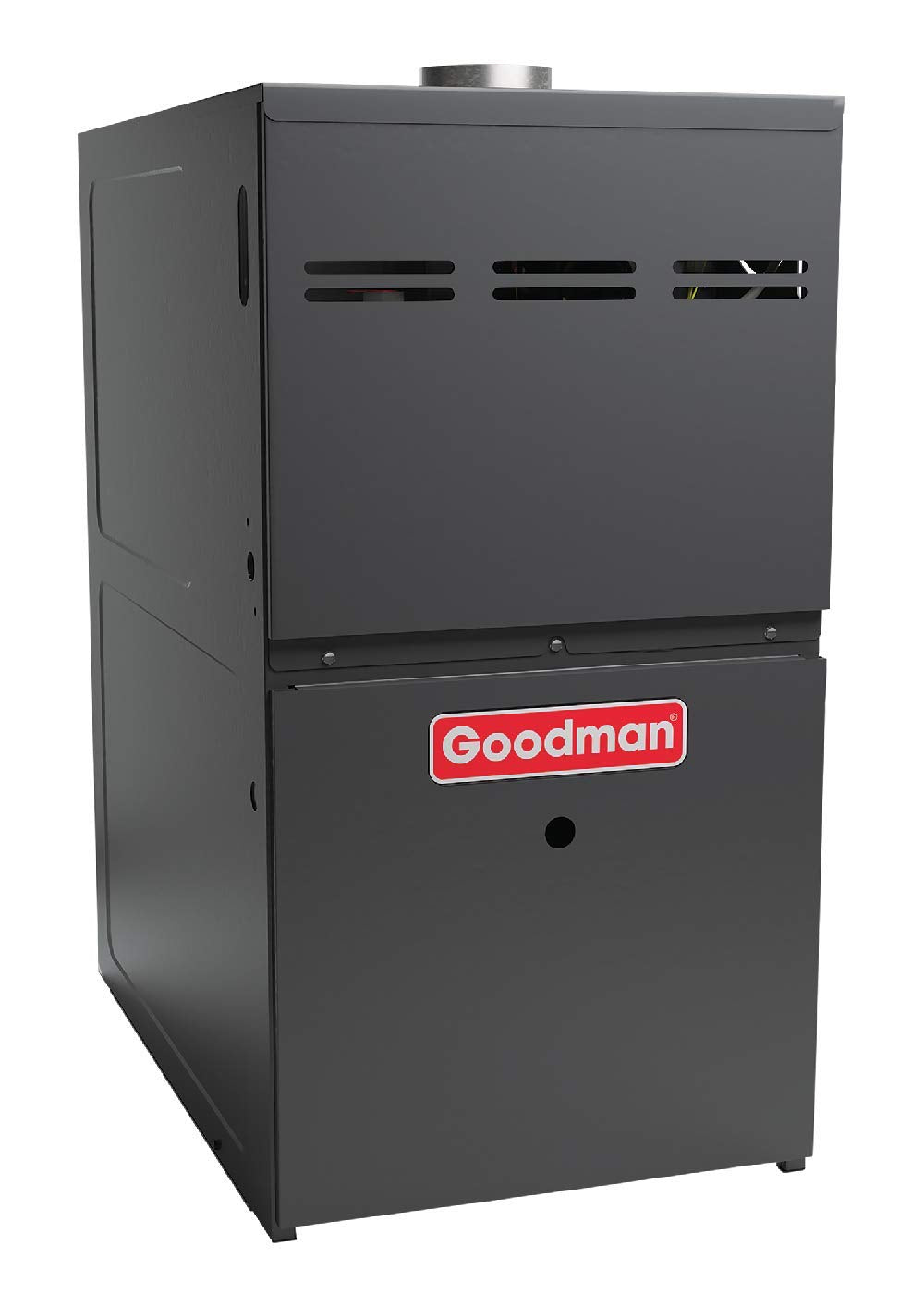

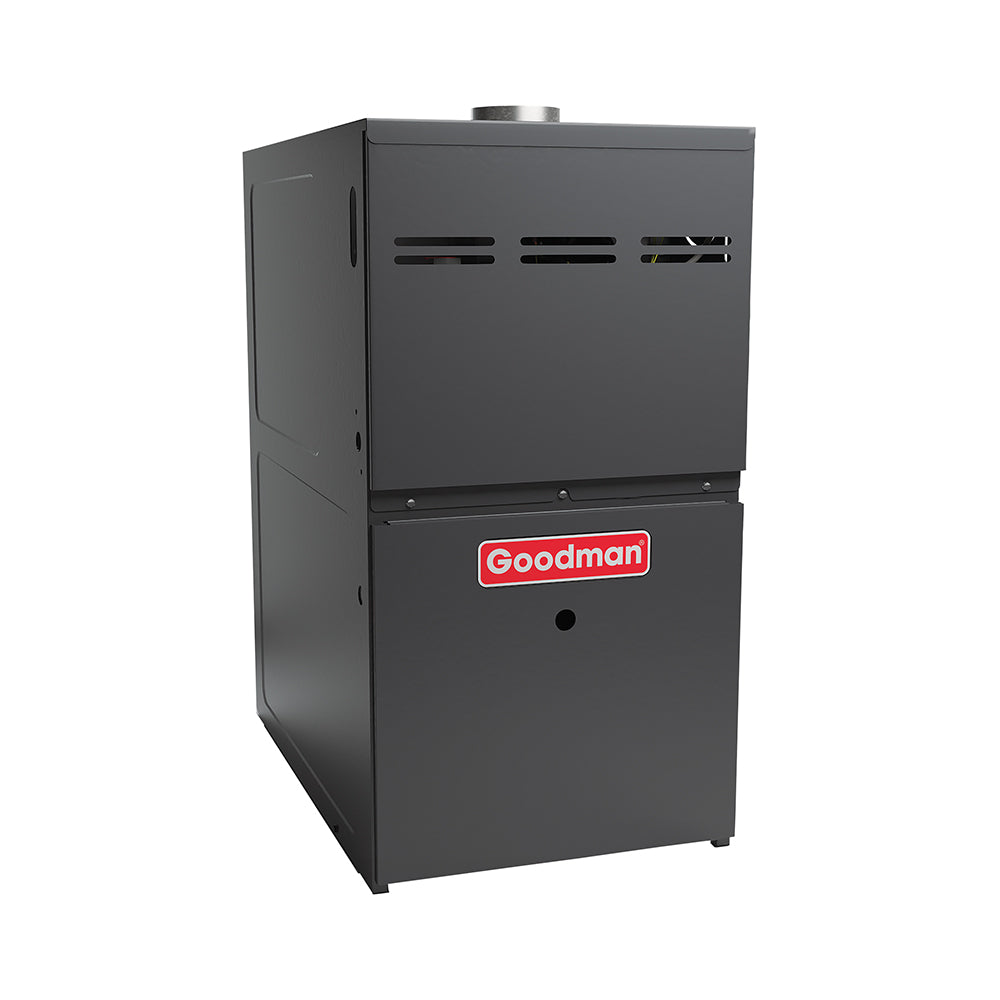

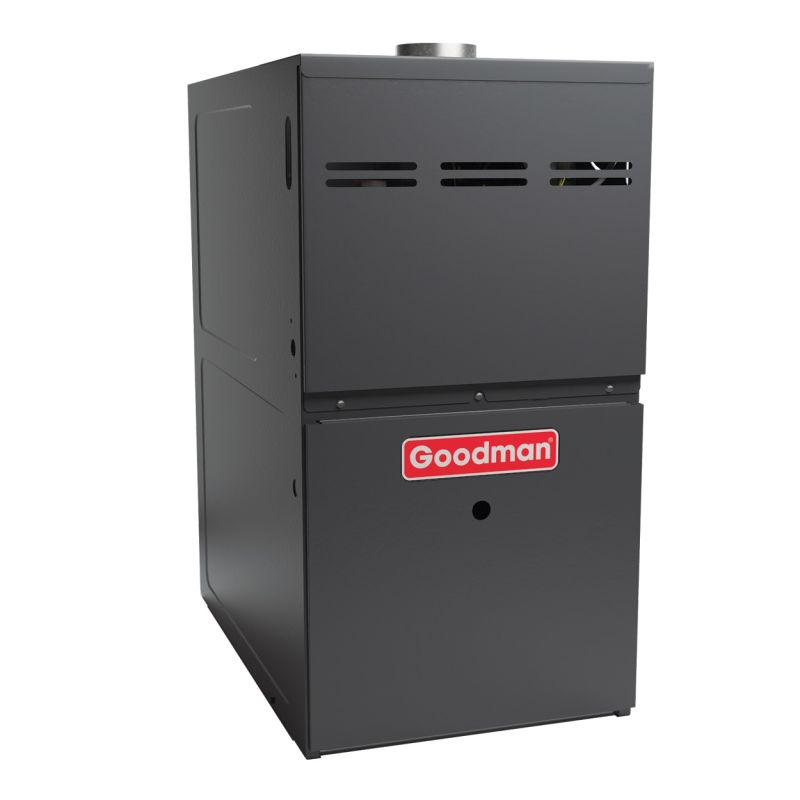

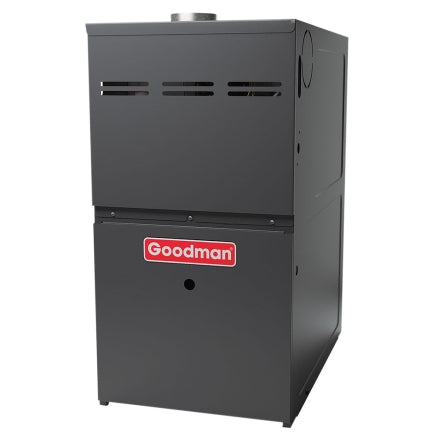

The GOODMAN GMEC800805CN gas furnace features a multi-speed ECM motor and a two-stage gas valve. Designed for upflow or horizontal installation, this indoor unit provides 80,000 BTU/H. The furnace has a fully insulated heat exchanger and blower section within a heavy-gage steel cabinet. It operates on 115V and 60 Hz.
- Equipped with a heavy-duty aluminized-steel tubular heat exchanger.
- Features a silicon nitride igniter for durability.
- Includes a self-diagnostic control board with constant memory.
Product Highlights
The Goodman GMEC800805CN gas furnace provides efficient and reliable heating with its two-stage operation and multi-speed ECM blower motor.
Product Information
Standard Information
-
Brand: GOODMAN
-
Manufacturer Part Number: GMEC800805CN
-
Country of Origin: USA
Technical Specifications
-
AFUE: 80 %
-
Class: Gas Furnace
-
Family: GMEC80
-
Category: Gas Furnace
-
Keywords: GMEC800805CN
-
Unit Type: Indoor
-
Unit Depth: 28 in
-
Unit Width: 21 in
-
Power Phase: 1 Ph
-
Unit Height: 33.5 in
-
Unit Weight: 129 Pounds
-
Min. Circuit Amps: 15.32 A
-
Power Voltage: 115 V
-
Power Frequency: 60 Hz
-
Model Efficiency: 0.8
-
Motor Speed Type: Multi Speed ECM
-
Product ID Bar Code: GMEC800805CN
-
Prop65 Label Required: TRUE
-
High-Fire Input Capacity: 80000 Btu
-
Airflow Rate High Heating: 2020 ft³/min
-
High-Fire Output Capacity: 64,000
-
Noise: 56 dB
-
Voltage: 120
-
Model Info: GMEC800805CN
-
Noise Level: 56 dB
-
Power Source: Corded Electric
-
Material Type: Silicon
-
Control Method: Remote
-
Controller Type: Remote Control
-
Installation Type: Ducted
-
Batteries Required?: No
-
Brand: Goodman
-
Product Category: Unitary
-
Product Class - (PIM): Gas Furnace
-
System Family: Unitary Split System
-
Function Category: Heating Only
-
Product Type: Equipment
-
Market Type: Residential-Single Family
-
Product Family: GMEC80
-
Series Name: GMEC80
-
Installation Configuration: Upflow/Horizontal
-
Produced in US: Yes
-
Heat Exchanger Type: Gas
-
Gas Valve Type: Two Stage
-
ANSI Certifed: Yes
-
ETL Listed: Yes
-
Number Of Burners: 4.0
-
Blower Motor RPM: 1200 r/min
-
Dimensions - (Blower Diameter): 10 in
-
Dimensions - (Blower Width): 10 in
-
Filter Quantity: 1.0
-
Filter Size - (Min): 16X25
-
Minimum Clearances to Combustible Materials: 1 ft
-
Max Overcurrent Protection: 20 A
-
Air Flow Rate (Low) - Heating: 667 ft³/min
-
Blower Available AC Tonnage High: 5 Tonnage
-
Blower Available AC Tonnage Low: 2.5 Tonnage
-
Low-Fire Input Capacity: 56,000
-
Low-Fire Output Capacity: 44,800
-
Vent Diameter: 4 in
-
US HTS Code: 7322.90.0015
-
Canadian HTS Code: 7322.90.00.21
-
SKU: GMEC800805CN
-
Weight (in lbs): 118.000000
-
Airflow Direction: Upflow/Horizontal
-
Exhaust Flue Requirement: Metal
-
Brand/Manufacturer: Goodman
-
Heating BTU: 80,000
-
Maximum CFM: 2000
-
Burner Stages: Two
-
Fuel Type: Propane, Natural Gas
-
Height: 33 3/8"
-
Depth: 28"
-
Product Line: GMEC80
-
Vent Type: Chimney Vent
-
Modulating/Staging: Two Stage
-
Gas Conversion Kit: Available
-
DOE Regional Compliance: Nationwide (Except CA)
-
High Fire Input: 80000 BTU
-
High Fire Output: 64000 BTU
-
Low Fire Input: 56000 BTU
-
Low Fire Output: 44800 BTU
-
Ultra Low NOx Emissions: No
-
Low NOx Emissions: No
-
Recommended Breaker Size: 20 Amps
-
Flue Connection Size: 4 Inches
-
Cabinet Width: 21 Inches
-
Product Height: 33 1/2 Inches
-
Product Width: 21 Inches
-
Product Depth: 28 Inches
-
Shipping Weight: 129 Pounds
-
AHRI Certified: Yes
-
ISO Certified: Yes
-
AHRI Reference Number: 203692614
-
AFUE %: 80
-
BTUs: 80,000
-
Model: GMEC800805CN
-
UPC: 663051590397
-
Product Length (in): 28
-
Avg Coverage Area: 1,250 - 1,500 Sq Ft
-
Blower Motor: High Efficiency
-
Cooling Compatibility (up to): 5 Ton
-
Electrical Phase: 1-Phase
-
Exhaust Pipe: Metal
-
Gas Valve: Two Stage
-
Weight (lbs): 129.000000
-
Primary Heating Capacity: 75,001 - 80,000 BTU
-
System Application Type: Central Split Systems
-
Vent Connection: 4 inches
