Goodman GMEC800603BX 80% AFUE Gas Furnace Multi Speed ECM, Two Stage

Product Description

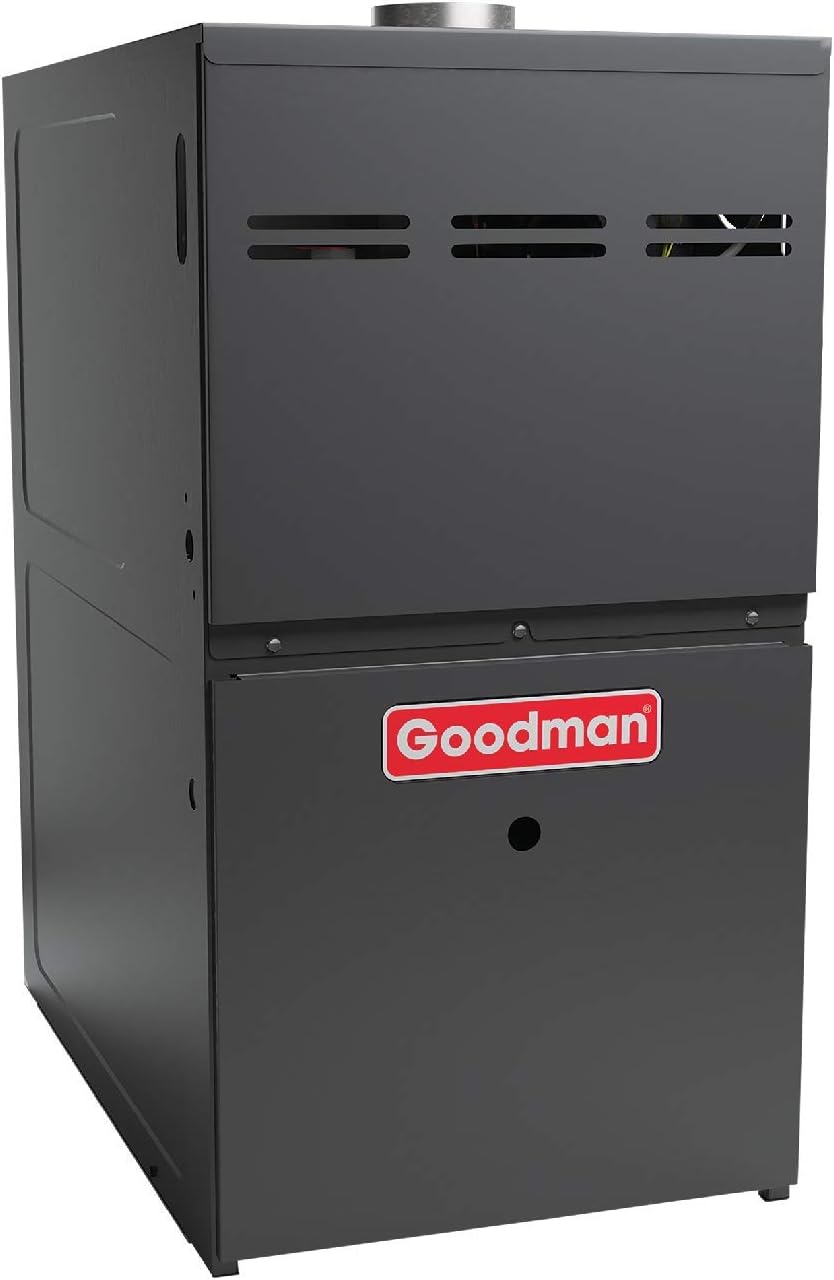

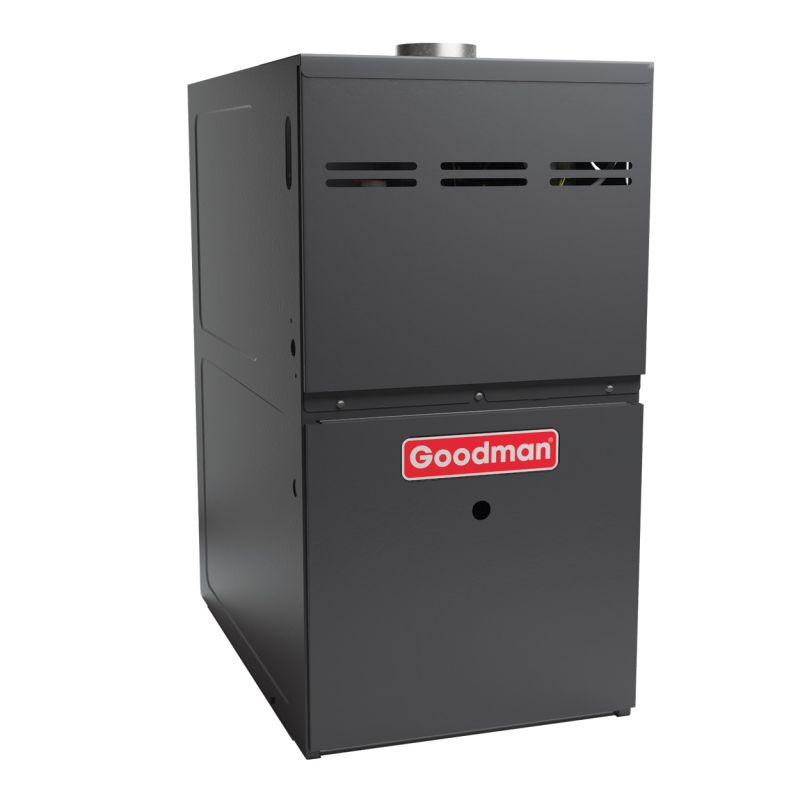

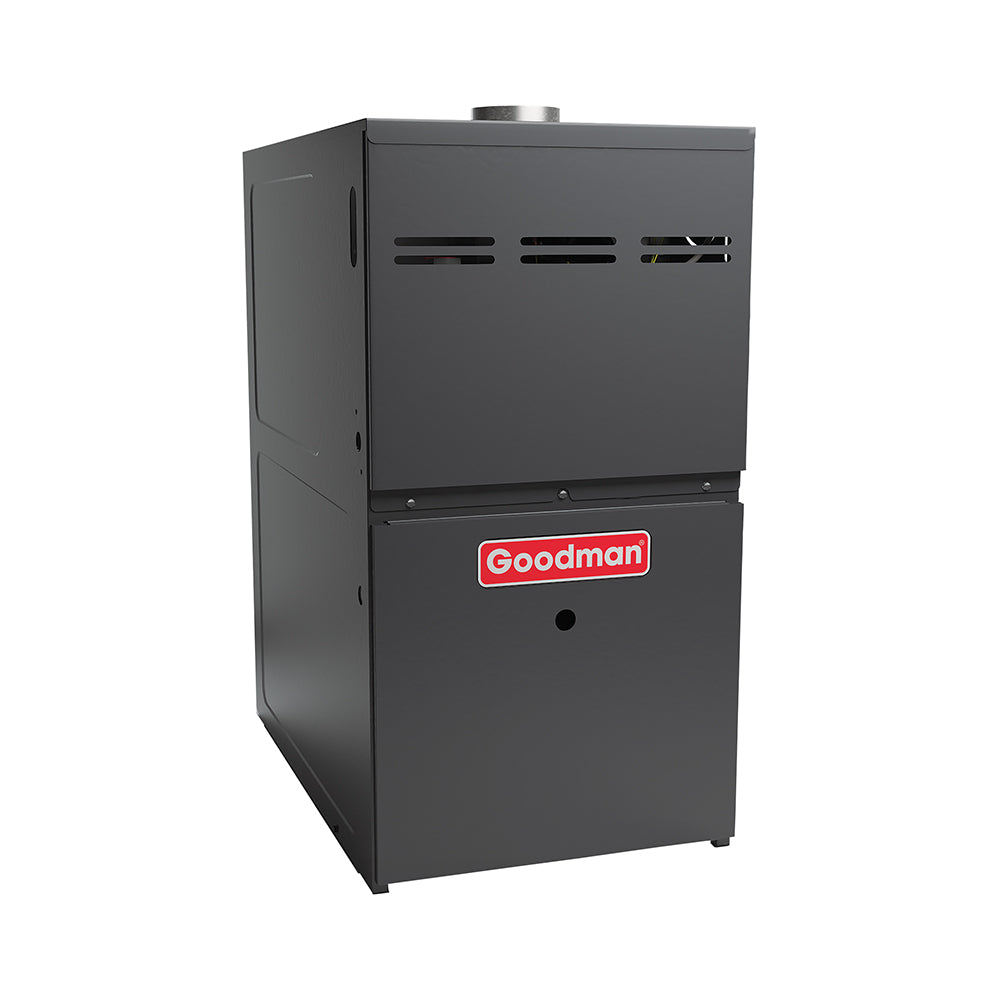

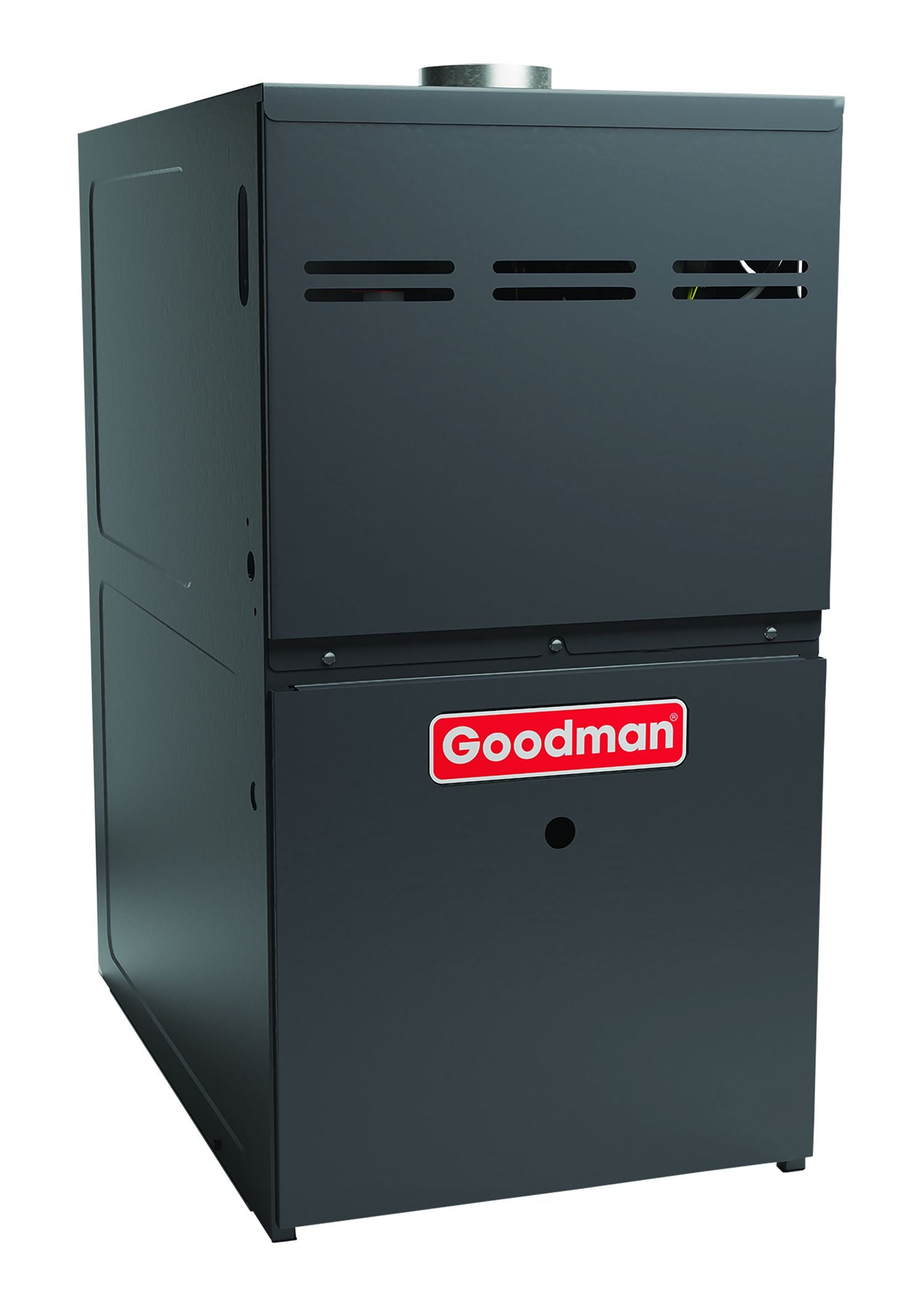

The Goodman GMEC800603BX 80% AFUE Gas Furnace is a multi-speed ECM, two-stage, upflow/horizontal unit with 60,000 BTUH/H and Low NOx. It features a heavy-duty aluminized-steel tubular heat exchanger and a silicon nitride igniter. The furnace has color-coded low-voltage terminals and a two-stage gas valve. The multi-speed ECM blower motor offers continuous fan speed.

• Heavy-duty aluminized-steel tubular heat exchanger
• Silicon Nitride igniter
• Color-coded low-voltage terminals
• Two-Stage gas valve

Product Highlights

This Goodman gas furnace provides efficient, reliable heating with a superior heat exchanger design and a self-diagnostic control board for easy maintenance.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GMEC800603BX
• Country of Origin: USA

Technical Specifications

• AFUE: 80 %
• Class: Gas Furnace
• Family: GMEC80
• Category: Gas Furnace
• Unit Type: Indoor
• Unit Depth: 28 in
• Unit Width: 17-1/2 in
• Power Phase: 1 Ph
• Unit Height: 33.5 in
• Min. Circuit: 8.7 A
• Power Voltage: 115 V
• NOX Burner Type: Low NOx
• Power Frequency: 60 Hz
• Cabinet Features: 1. Multi-position installation: upflow, horizontal left or right 2. Convenient left or right connection for gas and electrical service 3. Cabinet air leakage (Qleak) less than or equal to 2% 4. Fully insulated heat exchanger and blower section 5. Bottom or side return air applications 6. Heavy-gage steel cabinet with durable finish
• Model Efficiency: 0.8
• Motor Speed Type: Multi Speed ECM
• Family Description: Two-Stage Multi-Speed ECM Gas Furnace up to 80% AFUE
• High-Fire Input Capacity: 60000 Btu
• Airflow Rate High Heating: 589 ft³/min
• High-Fire Output Capacity: 48,000
• Voltage: 115V
• Installation Type: Ducted
• System Family: Unitary Split System
• Function Category: Heating Only
• Product Type: Equipment
• Market Type: Residential-Single Family
• Product Family: GMEC80
• Series Name: GMEC80
• Installation Configuration: Upflow/Horizontal
• Current Type: AC
• Max Overcurrent Protection: 15 A
• Air Flow Rate (High) - Heating: 1299 ft³/min
• Air Flow Rate (Low) - Heating: 589 ft³/min
• ANSI Certifed: Yes
• Blower Available AC Tonnage High: 3 Tonnage
• Blower Available AC Tonnage Low: 1.5 Tonnage
• Blower Motor RPM: 1200 r/min
• Dimensions - (Blower Diameter): 10 in
• Dimensions - (Blower Width): 8 in
• ETL Listed: Yes
• External Static Pressure - (Rated): 0.5
• Filter Quantity: 1.0
• Heat Exchanger Type: Gas
• Minimum Clearances to Combustible Materials: 1 ft
• Number Of Burners: 3.0
• Vent Diameter: 4 in
• Blower Motor HorsePower: 1/2 metric hp
• Low-Fire Input Capacity: 42,000
• Low-Fire Output Capacity: 33,600
• Gas Valve Type: Two Stage
• Heating BTU: 60,000
• Gas Valve: Two-Stage
• Indoor Fan Blower Motor: Multi-speed blower
• Fuel Type: Natural Gas
• Vent Type: Chimney Vent
• Modulating/Staging: Two Stage
• Blower Motor Type: ECM Multi-Speed
• Gas Conversion Kit: Available
• Ultra Low NOx Emissions: No
• Minimum Circuit Ampacity: 8.7 Amps
• Recommended Breaker Size: 15 Amps
• Flue Connection Size: 4 Inches
• Product Height: 33 1/2 Inches
• Product Width: 17 1/2 Inches
• Product Depth: 28 Inches
• Airflow Direction: Upflow/Horizontal
• Exhaust Flue Requirement: Metal
• Furnace Efficiency / AFUE: 80%
• Blower Motor: Multi Speed - ECM
• Maximum CFM: 1400
• Electrical: 115 V. 1 Phase 60 Hz
• Low NOx: Low NOx
• Burner Stages: Two
• Height: 33 3/8"
• Width: 17.5"
• Depth: 28"
• Amp(s): 15
• Heating Input Btu: 60,000
• Heating Output Btu: 48,000
• Heating Stage(s): 2
• Furnace Configuration: Up-Flow
