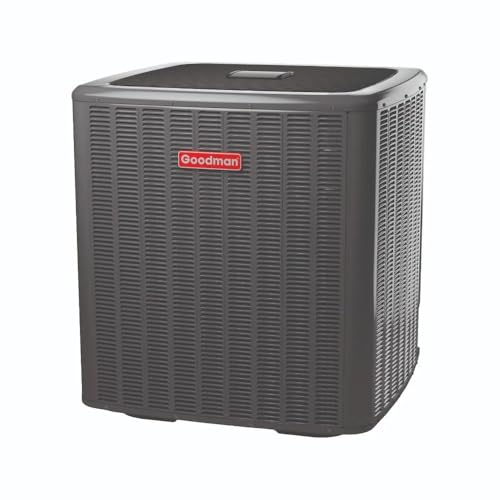

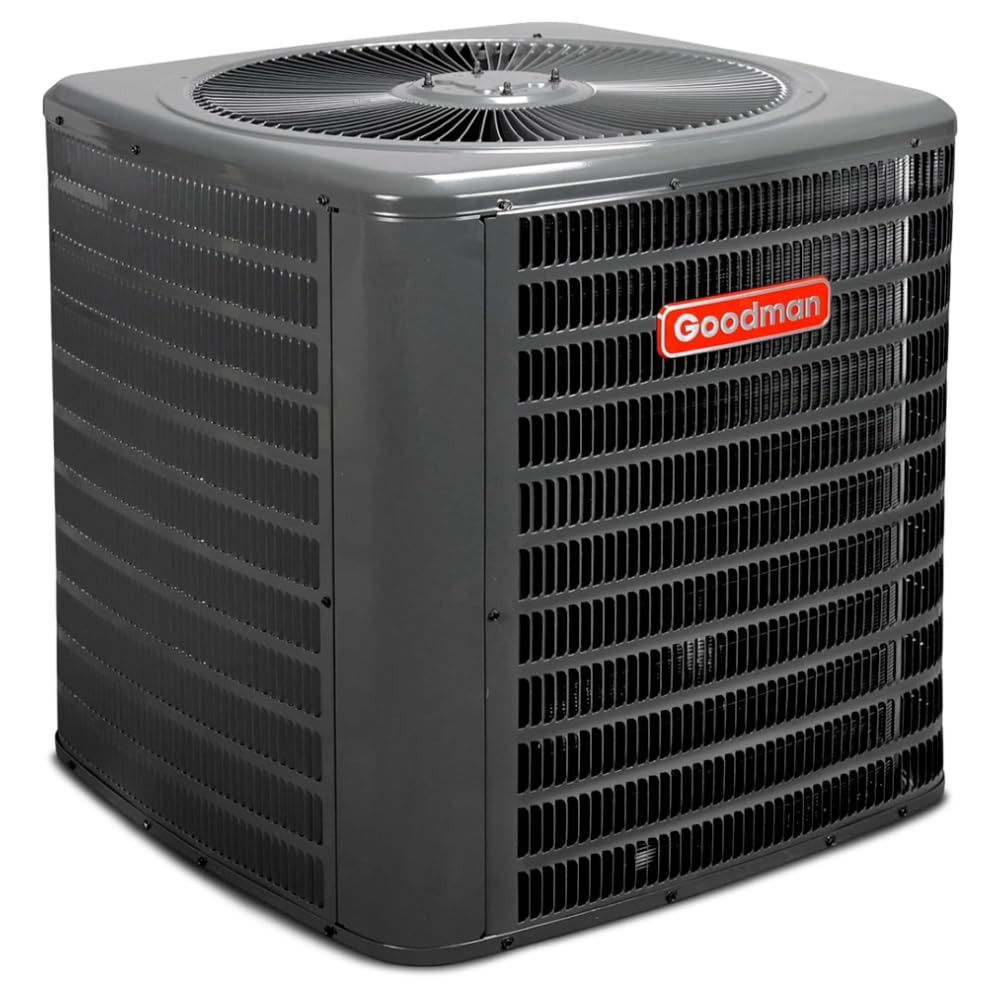

Goodman GLZS4BA3610 Split Heat Pump 15.2 SEER2, Single Stage (3.0 Ton)

Product Description

The Goodman GLZS4BA3610 is a split heat pump with 15.2 SEER2 and single stage operation. This energy-efficient standard family R-32 split system heat pump is designed to meet the 2023 M1 Test Standards. It is equipped with a high-efficiency compressor and SmartShift technology for quiet, reliable defrost. Ideal for residential single-family use.

• Features a high-efficiency compressor
• Equipped with SmartShift technology for reliable defrost
• Compliant with UL 60335-2-40 and meets 2023 Florida Building Code requirements when anchored

Product Highlights

Energy-efficient heat pump with SmartShift technology and durable construction for reliable heating and cooling.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GLZS4BA3610
• Country of Origin: USA

Technical Specifications

• Class: Split Heat Pump
• Family: GLZS4B
• Category: Split Heat Pump
• Keywords: GLZS4BA3610
• Unit Type: Outdoor
• Unit Depth: 35.5 in
• Unit Width: 35.5 in
• Power Phase: 1 Ph
• Refrigerant: R-32
• Unit Height: 35.75 in
• Min. Circuit: 21.5 A
• Power Voltage: 208/230 V
• Compressor Type: Scroll
• Power Frequency: 60 Hz
• Cabinet Features: Removable grille style top design compliant with UL 60335-2-40 Steel louver coil guard Heavy-gauge galvanized-steel cabinet Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval Top and side maintenance access When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available
• Model Efficiency: 15.2 SEER2
• Compressor Stages: Single Stage
• Family Description: Energy-Efficient Standard Family R-32 Split System Heat Pump, up to 15.2 SEER2 and 7.8 HSPF2, 1-1/2 to 5Tons
• Product ID Bar Code: GLZS4BA3610
• Prop65 Label Required: TRUE
• Heating Capacity Rated: 35000 Btu/H
• Suction Valve Outside Diameter: 7/8 in
• Product Category: Unitary
• System Family: Unitary Split System
• Function Category: Heat Pump
• Product Type: Equipment
• Market Type: Residential-Single Family
• Series Name: GLZS4B
• Installation Type: Ducted
• Communication Feature: No
• ISO Certified: Yes
• Product Notes: R32 Outdoor
• Item Stocking Unit of Measure (UOM): EA
• Pallet Qty: 1
• EER2 (HSVTC): 12.5
• ENERGY STAR® Certified: No
• Heating Capacity - (Nominal): 36000 Btu/H
• HSPF 2 (HSVTC): 7.5
• SEER 2 (HSVTC): 15.0
• Cooling Operation Range - (Std. Max): 125 °F
• Cooling Operation Range - (Std. Min): 55 °F
• Heating Operation Range - (Std.Max): 70 °F
• Heating Operation Range - (Std.Min): -20 °F
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Heating Condition - (Ambient DB): 47 °F
• Rated Heating Condition - (Ambient WB): 43 °F
• Max Overcurrent Protection: 35 A
• Rated Load Amps: 16.4 A
• Expansion Device: TXV
• Sound Pressure (High) - Cooling: 75 dBA
• Heating Capacity - (Rated): 35000 Btu/H
• Additional Refrigerant Charge - (oz/ft): 0.58
• Factory Std. Refrigerant Charge: 83 oz
• Refrigerant Pre-Charged Line Length: 15 ft
• Standard Line Set Length - (Max): 200 ft
• Standard Line Set Length - (Vertical): 79 ft
• Valve Size Suction (O.D.): 7/8 in
• Proposition 65 Label: Yes
• Carton Type: CTN
• Case Qty: 1
• Pipe Size Liquid: 3/8 in
• Brand: Goodman
