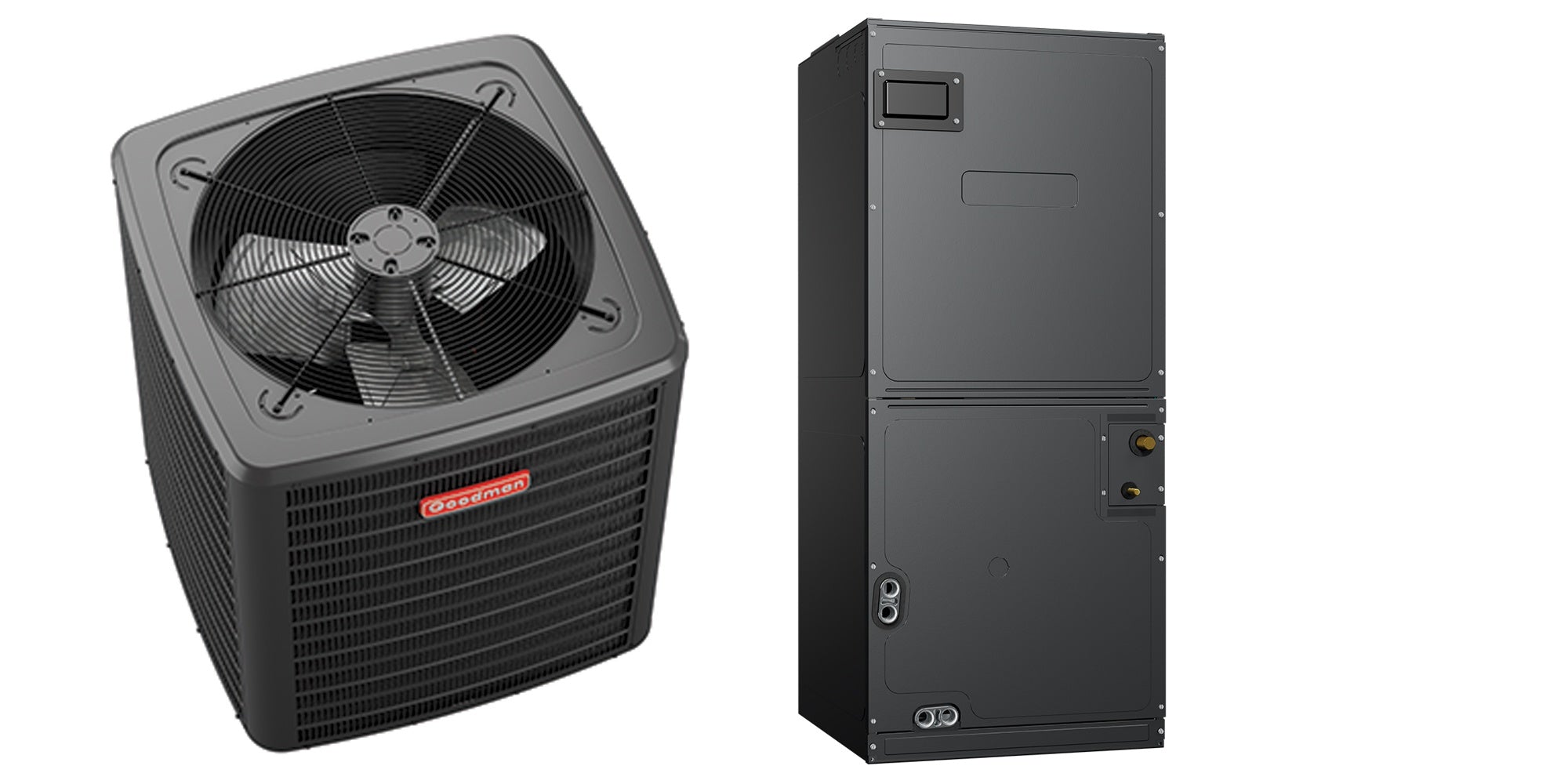

Goodman - GLZS4BA3010 Split Heat Pump 15.2 SEER2 (2.5 Ton) + AMST30BU1300 Air Handler, Nine Speed ECM Motor, 2.5 Ton

Product Description

The Goodman Split Heat Pump GLZS4BA3010 features advanced technology for efficient heating and cooling. This unit is designed for residential use with a SEER2 rating of 15.2 and an HSPF of 7.8. It covers an outdoor configuration ideal for various climates.

• High-efficiency compressor with SmartShift technology
• Equipped with a factory-installed suction-line accumulator
• R32 refrigerant for environmentally friendly operation

Product Highlights

This heat pump meets the 2023 M1 standards, ensuring performance and reliability in various conditions.

Product Information

Standard Information

• Manufacturer: Goodman
• Model Number: GLZS4BA3010

Technical Specifications

• Cooling Capacity: 30000 BTU/h
• Heating Capacity: 28600 BTU/h
• Efficiency Ratings: 15.2 SEER2 and 7.8 HSPF2
• Dimensions: 29 inches (width) x 29 inches (depth) x 39.5 inches (height)
• Weight: 174 lb
• Voltage: 208/230 V
• Power Supply Frequency: 60 Hz
• Refrigerant Type: R-32
• Sound Pressure Level: 77 dBA

Product Description

The Goodman AMST30BU1300 is a AMST Ducted Multi-position Air Handler, Nine Speed ECM Motor, 2.5 Ton, 17-9/16 in Cabinet with TXV Expansion. It is suitable for both cooling and heating applications. The design features an internal thermal expansion valve and is optimized for HVAC systems using R-32 refrigerant.

• 2.5 ton capacity for efficient climate control.

• Nine-speed ECM motor for tailored airflow.

• All-aluminum evaporator coil for durability and performance.

Product Highlights

This air handler meets high standards for energy efficiency and is designed for ease of installation in various configurations, including horizontal and vertical orientations.

Product Information

Standard Information

• Brand: Goodman

• MPN: AMST30BU1300

Technical Specifications

• Cooling Capacity: 36000 BTU/h

• Voltage Rating: 208/230 V

• Drain Connection: 3/4 inch

• Liquid Line Size: 3/8 inch

• Suction Line Size: 3/4 inch

• Depth: 21 inches

• Width: 17-9/16 inches

• Height: 53-7/16 inches

• Weight: 129 pounds
