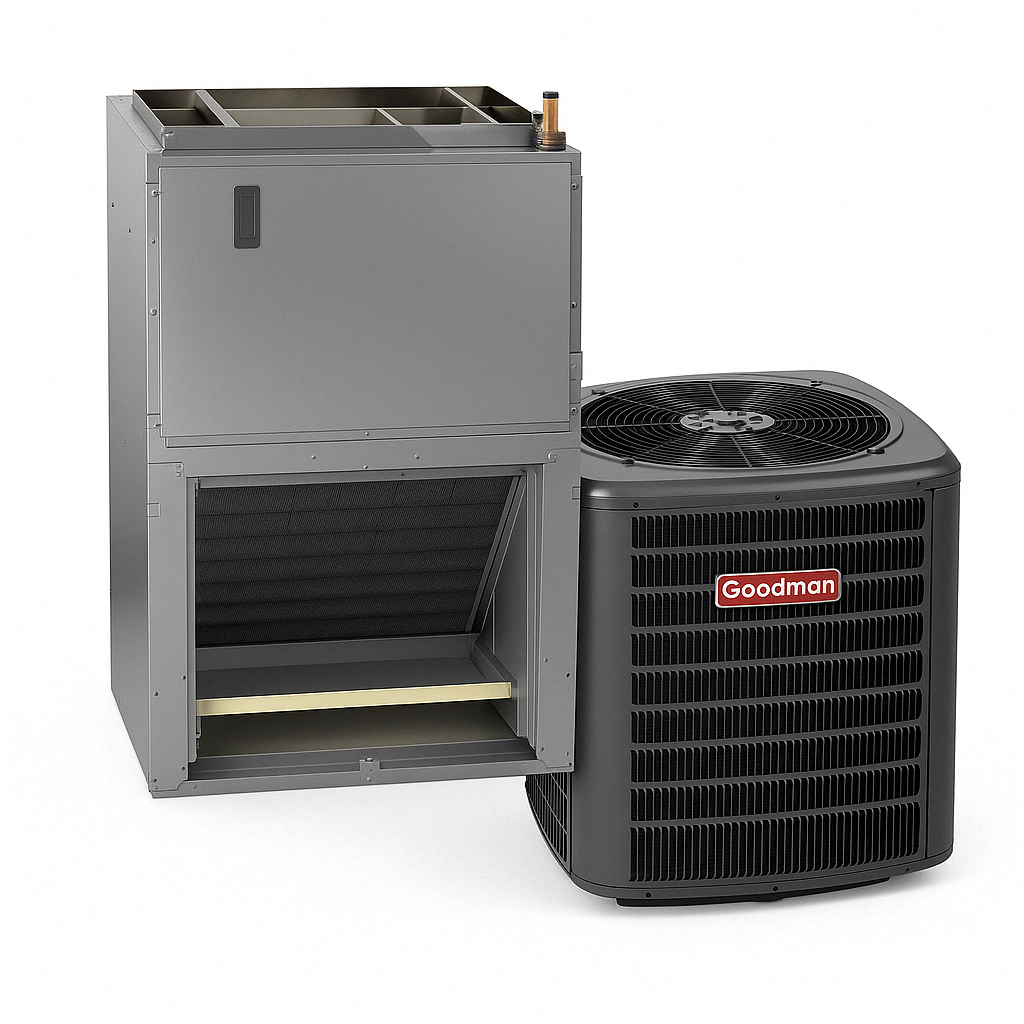

Goodman GLXS4BA3610+AWST36LU1308 3 Ton Air Conditioner Split System R-32

Product Description

A Goodman combination system is a smart, reliable way to keep your home comfortable year-round. Designed for efficiency and built to last, this bundle includes an indoor, outdoor, and furnace unit giving you everything you need for consistent heating and cooling.

Product Description

The Goodman GLXS4BA3610 is a single-stage split air conditioner designed for residential use. This efficient unit offers reliable cooling and is suitable for various applications. It comes fully charged for a fifteen-foot tubing length, making installation straightforward.

• High-efficiency scroll compressor
• Factory-installed filter drier for easy maintenance
• AHRI certified for efficiency and reliability

Product Highlights

This air conditioner is built with advanced technology, including Copeland CoreSense Technology, which helps in precise performance monitoring. The corrosion-resistant aluminum fin coil enhances durability.

Product Information

Standard Information

• Brand: Goodman
• Part Number: GLXS4BA3610

Technical Specifications

• Class: Split Air Conditioner
• Unit Type: Outdoor
• Dimensions: 39.5 inches (Height) x 29 inches (Width) x 29 inches (Depth)
• Weight: 158.475 lbs
• Refrigerant: R-32
• Power Voltage: 208/230
• Compressor Type: Scroll
• Cooling Capacity Rated: 34600 BTU

Product Description

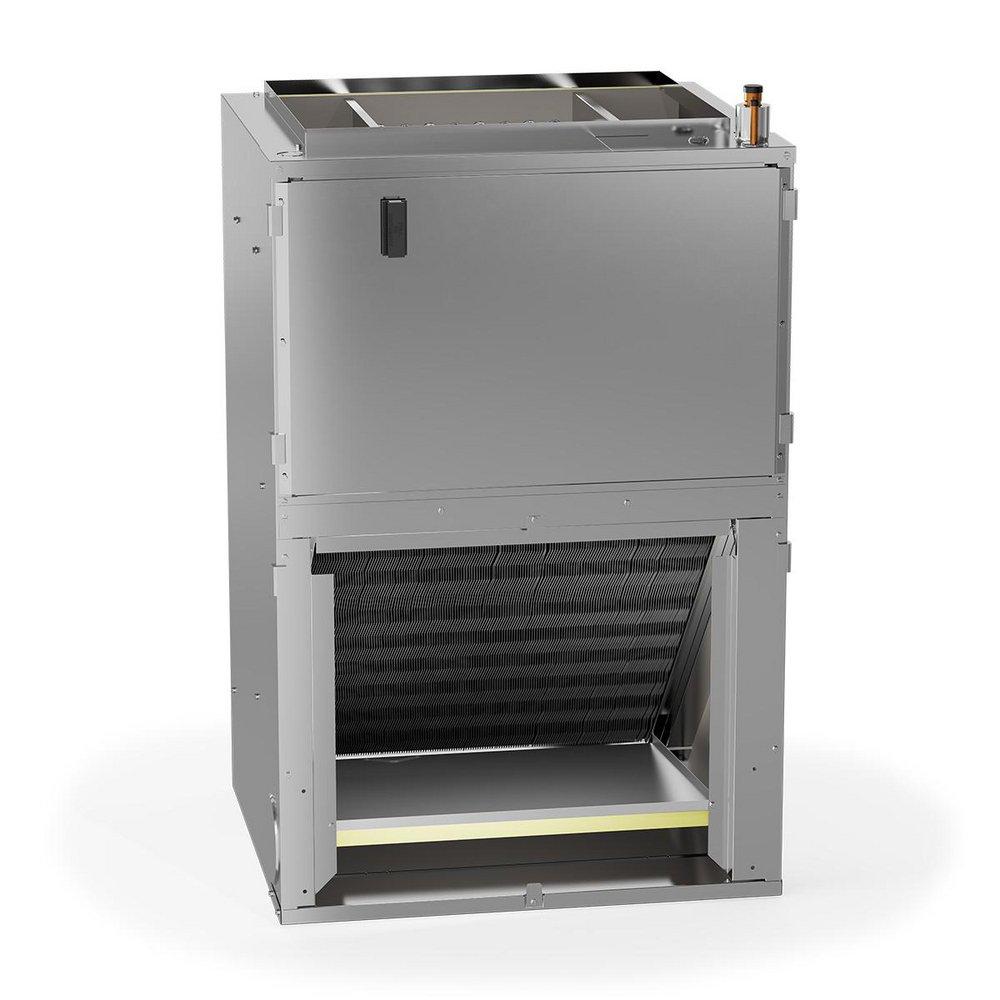

The Goodman AWST36LU1308 is an air handler designed for residential indoor use. It features a multi-speed ECM motor for efficient heating and cooling operation. This unit accommodates a range of 1.5 to 3 tons and is equipped with a twenty-four inch cabinet size, making it suitable for various installations.

• Multi-speed operation for customized airflow.
• Factory-installed TXV for quick and efficient refrigerant metering.
• Durable aluminum coil for better reliability.

Product Highlights

The Goodman AWST36LU1308 air handler offers efficient performance and an integrated TXV for reliable operation. Its robust cabinet design ensures superior air leakage control and is built for easy installation.

Product Information

Standard Information

• Model Efficiency: Not specified.
• Operating Voltage: 208/230 V.

Technical Specifications

• Cooling Capacity: 36000 Btu/H.
• Dimensions: 24 in width, 36 in height, 21 in depth.
• Weight: 109 lb.
• Power Phase: 1 Ph.
• Indoor Blower Amps: 3.8 A.
• Max Voltage: 253 V.
• Installation Type: Ducted Wall Mounted.
• Energy Source: Electric.
