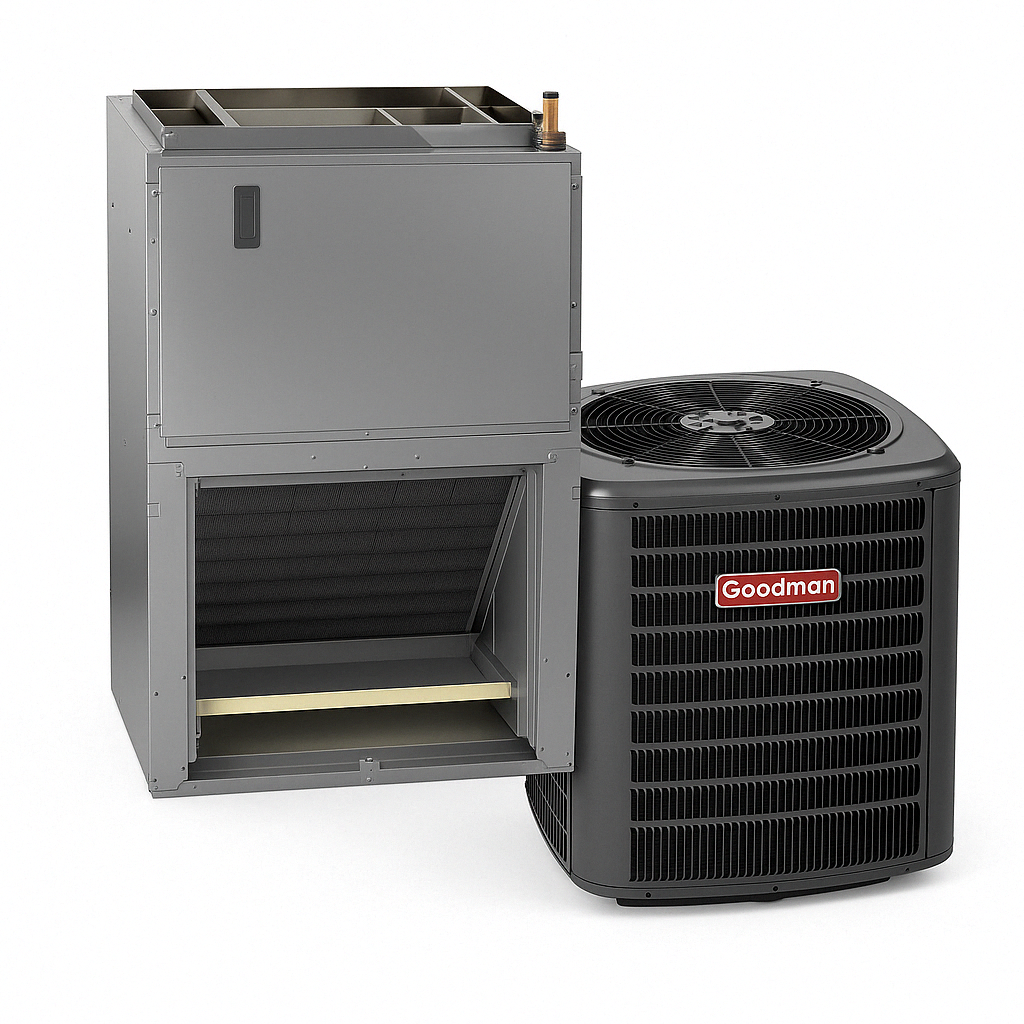

Goodman GLXS4BA3610+AWST36LU1305 3 Ton Air Conditioner Split System R-32

Product Description

A Goodman combination system is a smart, reliable way to keep your home comfortable year-round. Designed for efficiency and built to last, this bundle includes an indoor, outdoor, and furnace unit giving you everything you need for consistent heating and cooling.

Product Description

The Goodman GLXS4BA3610 is a single-stage split air conditioner designed for residential use. This efficient unit offers reliable cooling and is suitable for various applications. It comes fully charged for a fifteen-foot tubing length, making installation straightforward.

• High-efficiency scroll compressor
• Factory-installed filter drier for easy maintenance
• AHRI certified for efficiency and reliability

Product Highlights

This air conditioner is built with advanced technology, including Copeland CoreSense Technology, which helps in precise performance monitoring. The corrosion-resistant aluminum fin coil enhances durability.

Product Information

Standard Information

• Brand: Goodman
• Part Number: GLXS4BA3610

Technical Specifications

• Class: Split Air Conditioner
• Unit Type: Outdoor
• Dimensions: 39.5 inches (Height) x 29 inches (Width) x 29 inches (Depth)
• Weight: 158.475 lbs
• Refrigerant: R-32
• Power Voltage: 208/230
• Compressor Type: Scroll
• Cooling Capacity Rated: 34600 BTU

Product Description

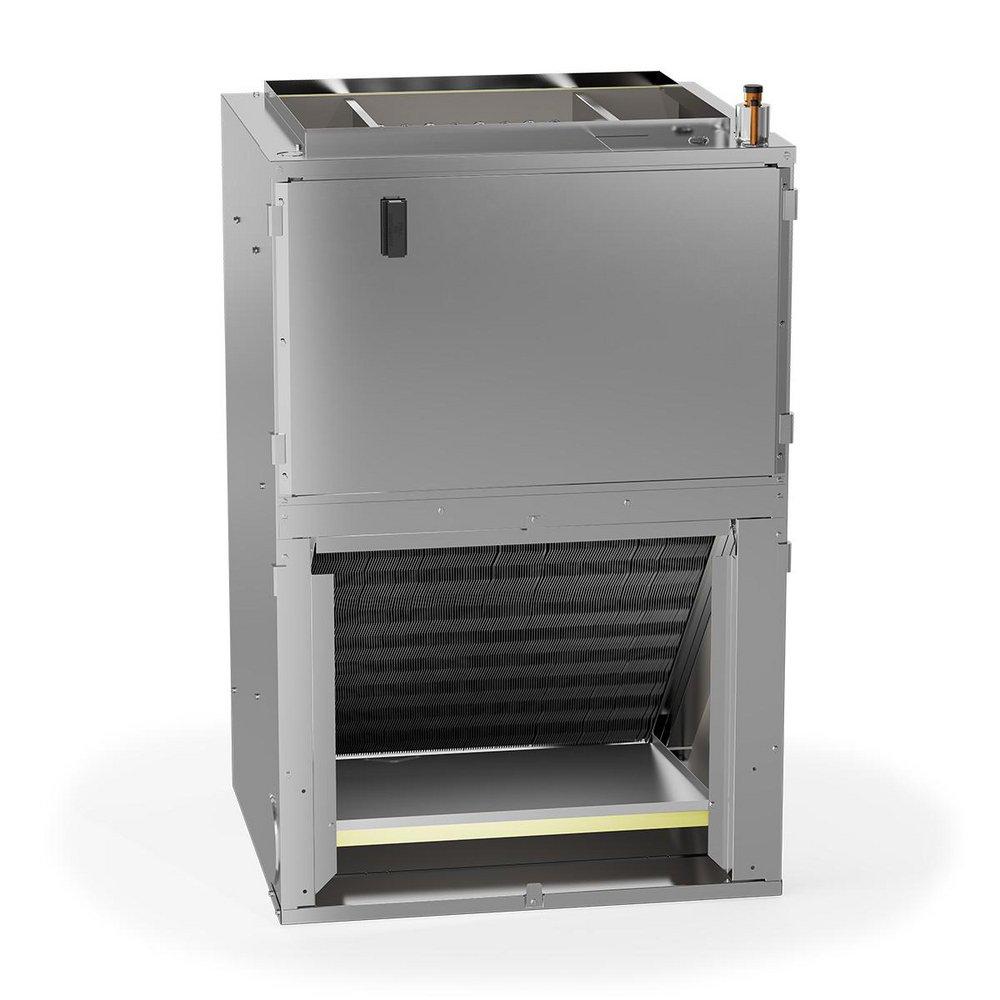

The Goodman AWST36LU1305 is an indoor air handler designed for residential applications. This unit features a multi-speed ECM motor, suitable for cooling capacities up to thirty-six thousand BTU per hour. The design allows for effective heating and cooling operation with a compact cabinet size of twenty-four inches.

• Multi-speed ECM motor for variable air volume adjustment.
• Factory-installed TXV expansion device enhances refrigerant efficiency.
• Durable aluminum coil construction for improved reliability.

Product Highlights

This air handler is equipped with a highly efficient multi-speed motor that provides optimal airflow for your heating and cooling needs.

Product Information

Standard Information

• Product Type: Indoor Air Handler
• Installation Type: Ducted Wall Mounted

Technical Specifications

• Cooling Capacity: 36000 Btu/H
• Tonnage: 3
• Dimensions (Unit): 24 in width x 21 in depth x 36 in height
• Indoor Blower FLA: 3.8 A
• Power Supply Voltage: 208/230 V
• Max Voltage: 253 V
• Min Circuit Amps: 26.4/29.8 A
• Weight: 109 lb
