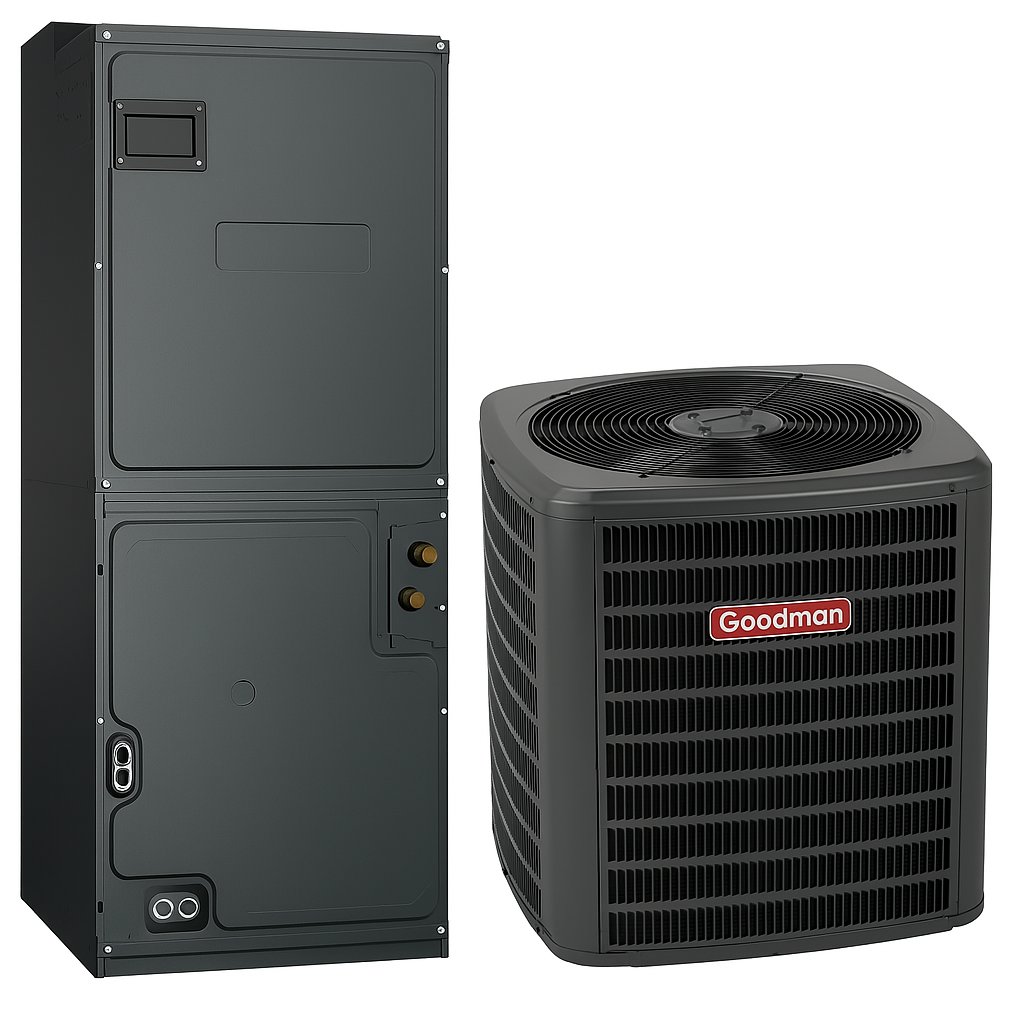

Goodman GLXS4BA3010+AMST30BU1300 2.5 Ton Air Conditioner Split System - Cooling Only - 14.3 SEER2 - R-32

Product Description

A Goodman combo system is a smart way to keep your home cool and comfortable all summer long. Packed with dependable performance and built for value, it�s the ideal solution for reliable, efficient cooling�season after season

Product Description

The Goodman GLXS4BA3010 is a single-stage split air conditioner designed for residential applications. This air conditioning unit operates efficiently to provide cooling for your home. The unit's innovative technology helps maintain a comfortable indoor temperature while being energy efficient.

• High efficiency with a 14.3 SEER2 rating
• Integrated Copeland CoreSense Technology for enhanced diagnostics
• Quiet operation with a high-density foam sound blanket

Product Highlights

The Goodman GLXS4BA3010 is engineered for performance and reliability, using R-32 refrigerant and a rotary compressor that operates on a single stage. The cabinet features powder-paint finish and removable grilles for easy maintenance.

Product Information

Standard Information

• Brand: Goodman
• Unit Type: Outdoor

Technical Specifications

• Cooling Capacity Rated: 28600 BTU
• Unit Weight: 155.4 lbs
• Unit Height: 32 inches
• Unit Width: 29 inches
• Unit Depth: 29 inches
• Power Voltage: 208/230 volts
• Power Phase: 1
• Refrigerant: R-32
• Compressor Type: Rotary
• Compressor Stages: Single Stage
• Warranty: 5 years parts warranty

Product Description

The Goodman AMST30BU1300 is a AMST Ducted Multi-position Air Handler, Nine Speed ECM Motor, 2.5 Ton, 17-9/16 in Cabinet with TXV Expansion. It is suitable for both cooling and heating applications. The design features an internal thermal expansion valve and is optimized for HVAC systems using R-32 refrigerant.

• 2.5 ton capacity for efficient climate control.

• Nine-speed ECM motor for tailored airflow.

• All-aluminum evaporator coil for durability and performance.

Product Highlights

This air handler meets high standards for energy efficiency and is designed for ease of installation in various configurations, including horizontal and vertical orientations.

Product Information

Standard Information

• Brand: Goodman

• MPN: AMST30BU1300

Technical Specifications

• Cooling Capacity: 36000 BTU/h

• Voltage Rating: 208/230 V

• Drain Connection: 3/4 inch

• Liquid Line Size: 3/8 inch

• Suction Line Size: 3/4 inch

• Depth: 21 inches

• Width: 17-9/16 inches

• Height: 53-7/16 inches

• Weight: 129 pounds
