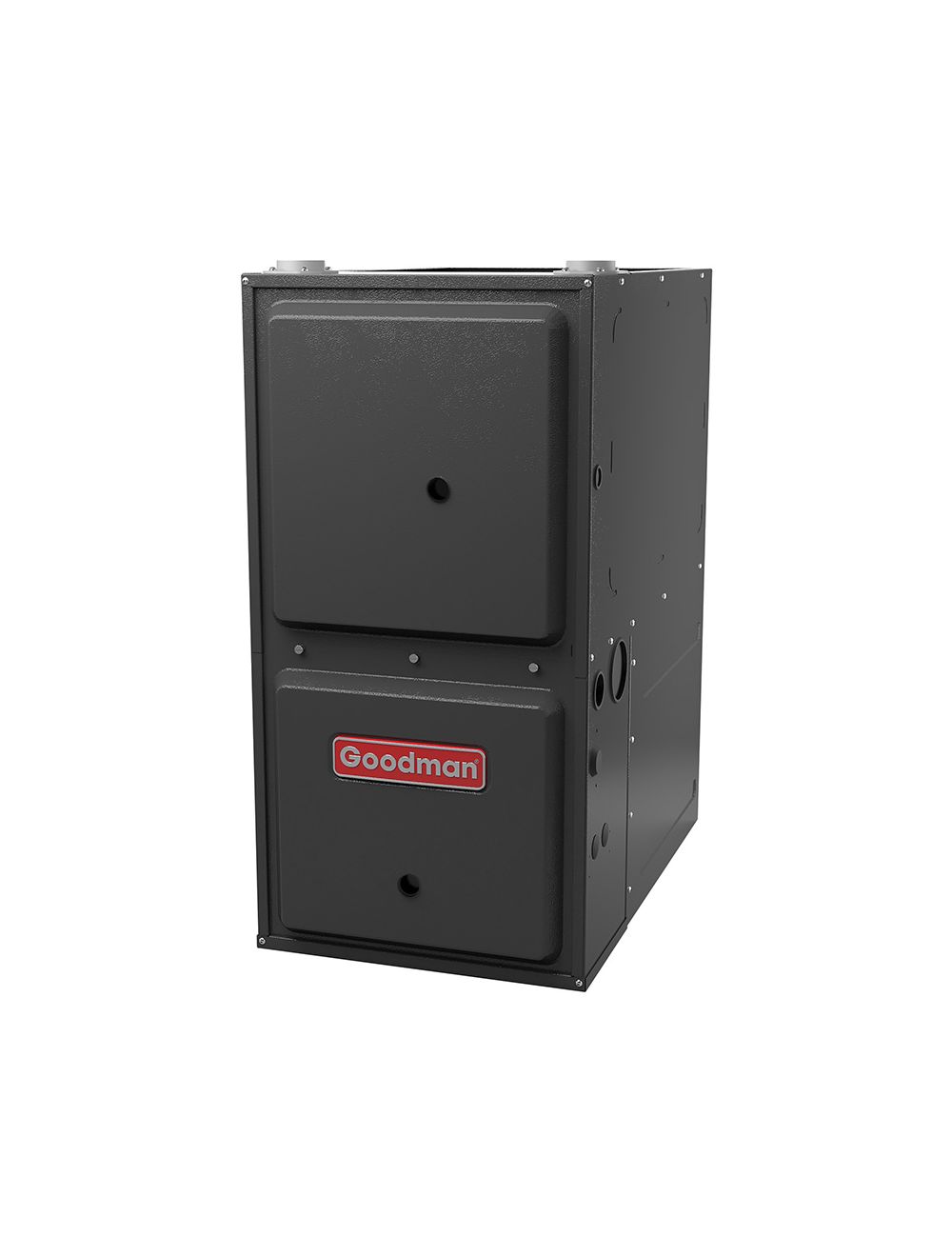

Goodman GD9S800603AN 80% AFUE Gas Furnace Multi Speed ECM Single Stage

Product Description

The Goodman GD9S800603AN is a gas furnace featuring an eighty percent Annual Fuel Utilization Efficiency (AFUE). This multi-speed ECM gas furnace operates efficiently for residential heating needs. It is designed for downflow or horizontal installation, delivering a heating capacity of sixty thousand BTU per hour.

• Multi-speed ECM blower motor allows for quieter operation.
• Stainless-steel tubular heat exchanger offers high durability.
• Self-diagnostic control board ensures ease of maintenance.

Product Highlights

This model provides reliable performance with features aimed at enhancing durability and efficiency.

Product Information

Standard Information

• Brand: Goodman
• Model: GD9S800603AN

Technical Specifications

• AFUE: 80%
• Unit Type: Indoor
• Unit Height: 33-3/8 inches
• Unit Width: 14 inches
• Unit Depth: 28 inches
• Unit Weight: 94 lbs
• High-Fire Input Capacity: 60,000 BTU
• High-Fire Output Capacity: 48,000 BTU
• Power Voltage: 115V
• Power Frequency: 60Hz
• Motor Speed Type: Multi Speed ECM
• Min. Circuit: 8.7 amps
• Warranty: Standard parts - 5 years; Heat exchanger - 20 years
