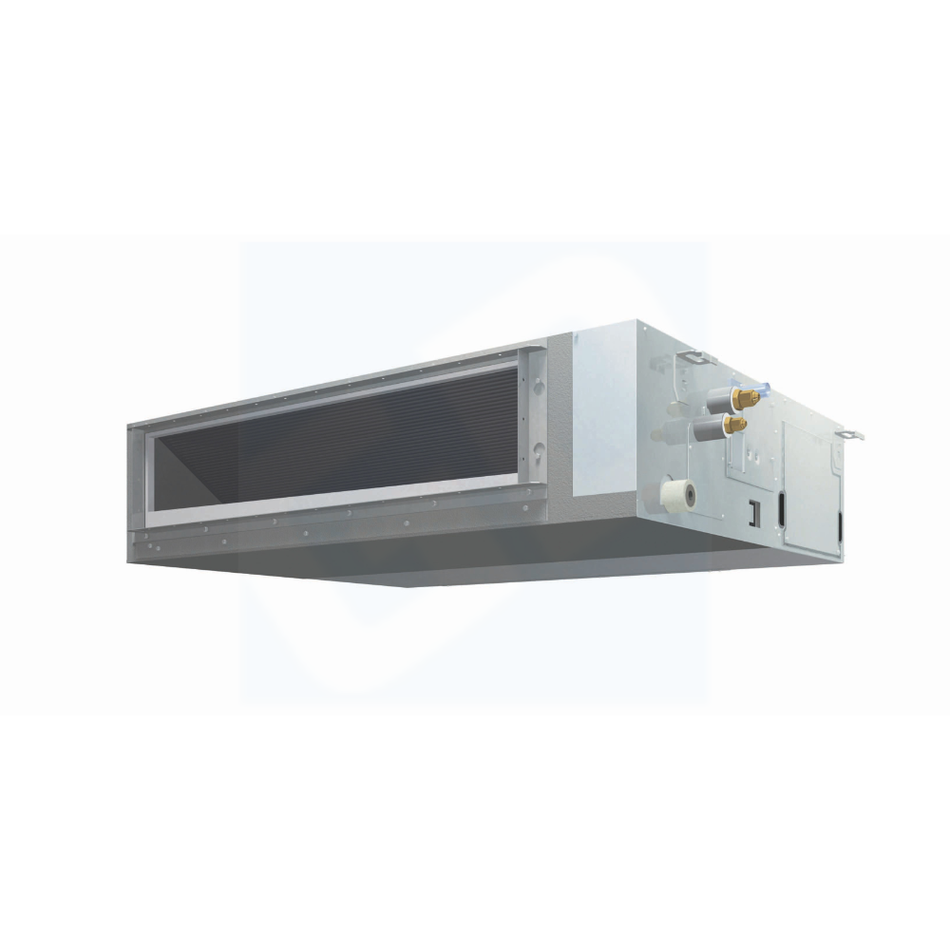

Goodman fdma12avju9 Ducted Indoor Unit 12000 Btu/h R32

Product Description

The GOODMAN fdma12avju9 is a concealed horizontal ducted indoor unit designed for ductless mini-split and multi-split systems using R32 refrigerant. Rated at 12,000 BTU/h nominal capacity, it delivers 10,800 BTU/h in cooling mode and 12,500 BTU/h in heating mode. Inverter-driven technology allows the unit to modulate output continuously, reducing energy consumption and maintaining stable space temperatures without the stop-start cycling of fixed-speed equipment. The low-profile concealed design mounts above finished ceilings and connects to existing ductwork, keeping the air handler out of sight. This unit is installed by licensed HVAC technicians in both residential and light commercial applications.

The fdma12avju9 suits applications where exposed wall cassettes or floor consoles are not appropriate, such as hotel rooms, offices, conditioned corridors, and residential spaces with drop ceilings or soffits. Its horizontal ducted configuration allows short duct runs to one or more supply registers, distributing conditioned air evenly without a conventional ducted air handler. The unit operates on R32 refrigerant, which carries a lower global warming potential than R410A. It is suitable for use as a dedicated zone in a multi-split system or paired with a compatible single-zone outdoor unit.

Key Features

• 12,000 BTU/h nominal capacity with 10,800 BTU/h cooling and 12,500 BTU/h heating output
• Inverter-driven operation for continuous capacity modulation and reduced energy use
• Concealed horizontal ducted design mounts above ceilings for discreet installation
• R32 refrigerant with lower global warming potential compared to R410A
• Built-in filtration removes airborne particulates before air enters the duct system
• Flexible installation orientation reduces structural constraints on unit placement

Compatibility

Designed for use in mini-split and multi-split system configurations requiring a concealed horizontal ducted indoor unit rated at 12,000 BTU/h with R32 refrigerant. Verify outdoor unit compatibility with the equipment manufacturer before installation.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician familiar with R32 refrigerant handling procedures. R32 is classified as mildly flammable (A2L) and requires adherence to applicable local mechanical codes and manufacturer safety guidelines during brazing, leak testing, and system commissioning. Disconnect and lock out all electrical power and confirm the system is recovered and depressurized before servicing the refrigerant circuit. Structural supports must be adequate to carry the weight of the unit plus associated ductwork and condensate piping.

Technical Specifications

• Nominal Capacity: 12,000 BTU/h
• Cooling Capacity: 10,800 BTU/h
• Heating Capacity: 12,500 BTU/h
• Refrigerant Type: R32
• Unit Configuration: Concealed Horizontal Ducted
• Drive Type: Inverter

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: fdma12avju9
