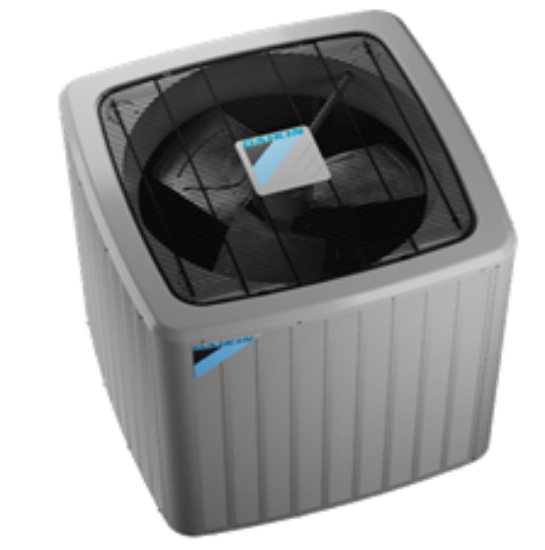

Goodman dh4sea3640 Heat Pump Condenser 14.3 SEER2 3 Ton 460V

Product Description

The GOODMAN dh4sea3640 is a 3-ton, single-stage scroll compressor heat pump condenser rated at 14.3 SEER2 and 12.5 EER2, designed for residential outdoor installation on triple-phase, 460-volt electrical systems. Using R-32 refrigerant, this unit is A2L compatible and delivers 36,000 BTU/h of cooling capacity and 34,400 BTU/h of heating capacity with an HSPF2 rating of 7.5. The top-discharge configuration features a removable grille-style top compliant with UL 60335-2-40 and a Venturi design that increases airflow velocity for efficient heat exchange. Licensed HVAC technicians handle installation and commissioning of this unit.

This condenser is rated for residential applications and is intended for outdoor installation in split-system heat pump configurations. The DH4SEA 4 Series platform accommodates field-installed accessories through single-panel control access, making it suitable for both new construction and equipment replacement projects where triple-phase 460-volt power is available on site. The 3/8-inch liquid line and 7/8-inch suction line connections are sized to standard residential split-system specifications.

Key Features

• 14.3 SEER2 and 12.5 EER2 efficiency ratings for triple-phase 460V residential systems
• R-32 refrigerant with A2L compatibility, meeting current low-GWP requirements
• Single-stage scroll compressor with top-discharge, Venturi-enhanced airflow
• Removable grille-style top design compliant with UL 60335-2-40
• Custom Nickel Gray powder-coat finish with 500-hour salt-spray approval for corrosion resistance
• Steel louver coil guard with rust-resistant screws and side and top maintenance access

Compatibility

Designed as an OEM-style replacement or new-installation condenser for residential split-system heat pump applications requiring triple-phase 460-volt power and R-32 refrigerant; verify indoor air handler compatibility and refrigerant line sizing before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle A2L refrigerants per applicable local codes and ASHRAE 15 guidelines. Disconnect and lock out all electrical power before servicing or making refrigerant connections. Confirm that suction and liquid line diameters, indoor coil match, and electrical supply voltage and ampacity meet the unit requirements prior to start-up. Do not operate the unit without verifying proper refrigerant charge using manufacturer-specified procedures.

Technical Specifications

• BTU Cooling Capacity: 36,000 BTU/h
• BTU Heating Capacity: 34,400 BTU/h
• SEER2: 14.3
• EER2: 12.5
• HSPF2: 7.5
• Voltage: 460 volts
• Phase: Triple Phase
• Amperage: 10 / 6.7 amps
• Compressor Type: Scroll
• Stages: Single
• Blower Speed: 1 Speed
• Refrigerant Type: R-32
• A2L Compatible: Yes
• Configuration: Top Discharge
• Liquid Line OD: 3/8 inches
• Suction Line OD: 7/8 inches
• Width: 35.5 inches
• Depth: 35.5 inches
• Height: 36.6 inches
• Weight: 199 pounds
• Application: Residential Outdoor
• Energy Star Compliant: No
• Style Series: DH4SEA 4 Series

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: dh4sea3640
