Goodman daq12033 Air Handler 10 Ton 208/230V 3-phase R-32

Product Description

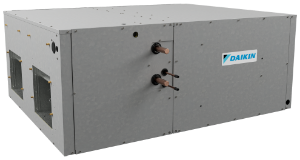

The GOODMAN daq12033 is a 10-ton, three-phase commercial air handler designed for large-capacity HVAC systems using R-32 refrigerant. Rated at 208/230 volts, 60 Hz, 3-phase power, it delivers high-volume airflow through a 1 HP blower motor. The unit ships with an RDS (refrigerant distribution system) included and accepts sweat-type refrigerant line connections. At 430 pounds and measuring 48.25 inches wide by 24.25 inches deep by 60.5 inches tall, this is a substantial cabinet built for demanding commercial or large residential split-system installations. Licensed HVAC technicians and commercial mechanical contractors are the primary installers of this equipment.

This air handler is suited for commercial and large-scale residential applications requiring three-phase electrical service and R-32 refrigerant compatibility. The unit supports two filter configurations: 16 x 20 x 2 inches or 20 x 20 x 2 inches, providing flexibility across different plenum and duct configurations. Full-load amperage is rated at 15.5/15.5 amps, and the recommended fuse size is 20 amps. The liquid line connection is 3/8 inch and the suction line is 1-1/8 inch, both sweat-type, matching standard commercial split-system refrigerant piping practice.

Key Features

• 10-ton nominal cooling capacity for large-load applications
• R-32 refrigerant compatible with sweat-type liquid and suction line connections
• 208/230V, 60 Hz, 3-phase power input with 15.5/15.5A full-load amperage
• 1 HP blower motor for high-volume air distribution
• Accepts 16 x 20 x 2 inch or 20 x 20 x 2 inch filter sizes
• RDS included for streamlined refrigerant circuit integration

Compatibility

Designed for use in commercial and large residential split-system configurations requiring R-32 refrigerant and three-phase electrical service. No additional specific compatible model numbers were provided in product data.

Installation Notes

Installation must be performed by a licensed HVAC technician qualified to work with R-32 refrigerant and three-phase electrical systems. Disconnect and lock out all electrical power before beginning any installation or service work, and isolate the refrigerant circuit before opening line connections. Sweat all refrigerant connections per standard brazing practice and pressure-test the system before charging. Local mechanical and electrical codes, including applicable sections of the IMC and NEC, govern installation requirements for units of this size and power class.

Technical Specifications

• Nominal Capacity: 10 ton
• Voltage Rating: 208/230 V, 60 Hz, 3-Phase
• Full-Load Amperage: 15.5/15.5 A
• Fuse Size: 20 A
• Refrigerant Type: R-32
• Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Suction Line Size: 1-1/8 inch
• Filter Size: 16 x 20 x 2 inches or 20 x 20 x 2 inches
• Blower Motor: 1 HP
• Dimensions: 48.25 inches W x 24.25 inches D x 60.5 inches H
• Weight: 430 pounds

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: daq12033
