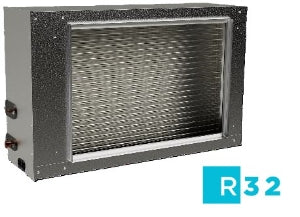

Goodman CSCT6012L3 Evaporator Coil, Horizontal Slab (4.0 - 5.0 Tons)

Product Description

The Goodman CSCT6012L3 is a cased slab evaporator coil intended for horizontal airflow settings. It features an all-aluminum construction that boosts durability and improves heat transfer efficiency. This evaporator coil is designed for use with R-32 refrigerant and comes with a factory-installed thermal expansion valve (TXV) suited for cooling applications. The design includes a rust-resistant, thermoplastic drain pan, and a foil-faced insulated cabinet that helps to minimize condensation.

• All-Aluminum Evaporator Coil

• Optimized for R-32 Refrigerant

• Factory-Installed Thermal Expansion Valve

Product Highlights

This evaporator coil operates efficiently in various settings and maintains effective cooling performance.

Product Information

Standard Information

• Brand: GOODMAN

• MPN: CSCT6012L3

• Type: Evaporator Coil

• Style: Slab Coil

• Configuration: Horizontal

Technical Specifications

• Refrigerant Type: R-32

• Casing: Cased

• Style: Slab Coil

• TXV Installed: Yes

• Capacity: 4.0 - 5.0 Tons

• Cooling BTU: 60000

• Nominal Minimum Cooling Capacity: 48000 BTU

• Suction Connection Size: 7/8 Inch

• Liquid Connection Size: 3/8 Inch

• Product Height: 25 Inches

• Product Width: 39 1/2 Inches

• Product Depth: 12 Inches

• Shipping Weight: 58 Pounds

• ETL Listed: Yes

• AHRI Certified: Yes

• ISO Certified: Yes
