GOODMAN CSCT2412S3 Goodman CSCT2412S3 1.5 - 2.0 Ton Horizontal Slab Coil

Product Description

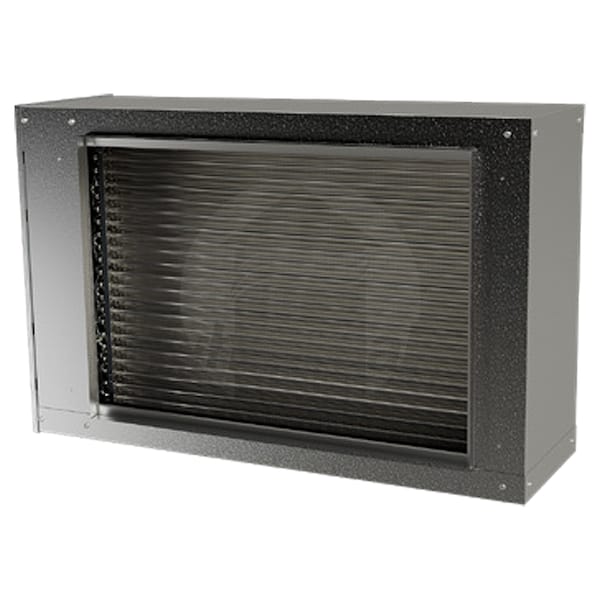

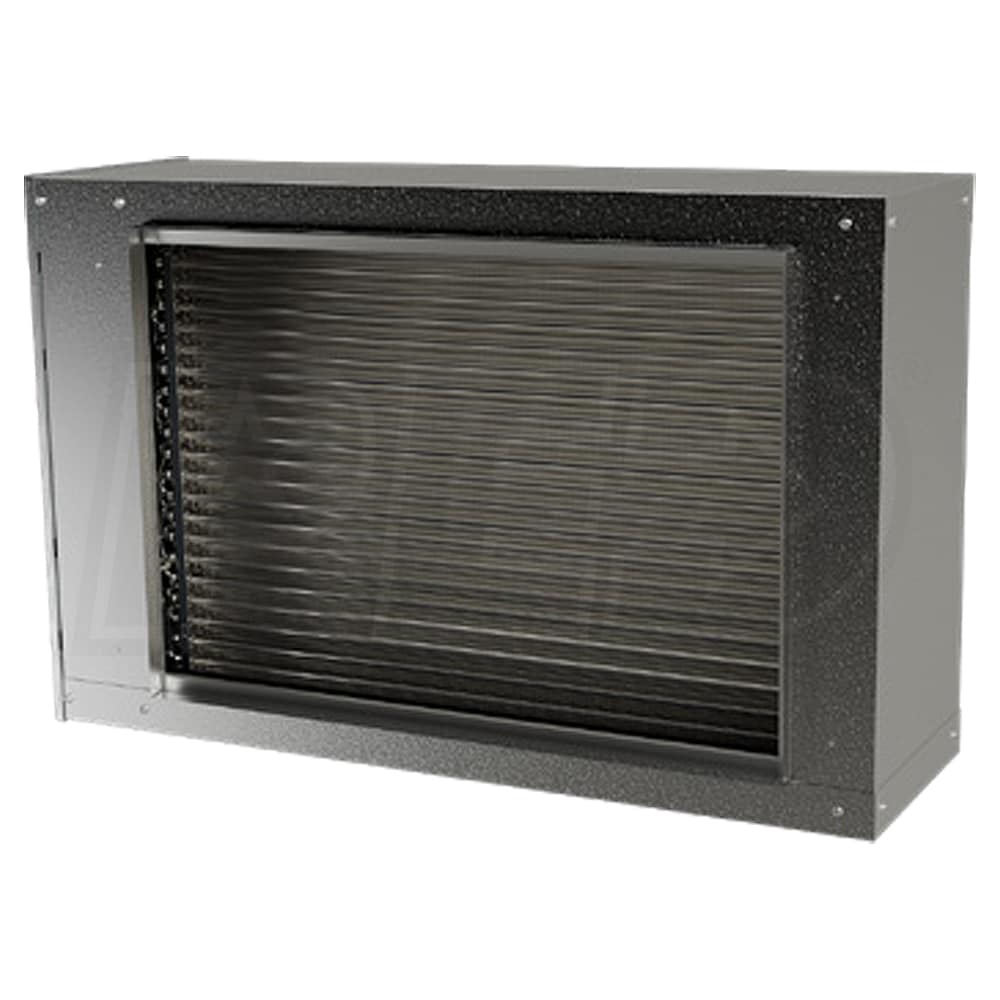

The Goodman CSCT2412S3 is a cased slab coil designed for horizontal airflow applications. This unit offers enhanced durability with an all-aluminum construction and features an internal thermostatic expansion valve (TXV). It is optimized for R-32 refrigerant and undergoes pressure testing before leaving the factory. This coil is suitable for both replacing existing coils and for new system installations.

• Cased slab coil designed for horizontal airflow.
• All-aluminum construction for durability.
• Includes internal thermostatic expansion valve (TXV).

Product Highlights

The Goodman CSCT2412S3 ensures efficient heat transfer and reliable performance. It is ideal for HVAC professionals in need of a robust evaporator coil solution.

Product Information

Standard Information

• Product Line: CSCT
• Product Category: Evaporator Coil

Technical Specifications

• Refrigerant Type: R-32
• Capacity: 1.5 - 2.0 Tons
• Cooling BTU: 24000
• Nominal Minimum Cooling Capacity: 18000 BTU
• Configuration: Horizontal
• Casing: Cased
• Style: Slab Coil
• TXV Installed: Yes
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Cabinet Width: 25.5 Inches
• Product Height: 25 Inches
• Product Width: 25.5 Inches
• Product Depth: 12 Inches
• Product Weight: 20 Pounds
• Shipping Weight: 35 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 12 Limited Years
