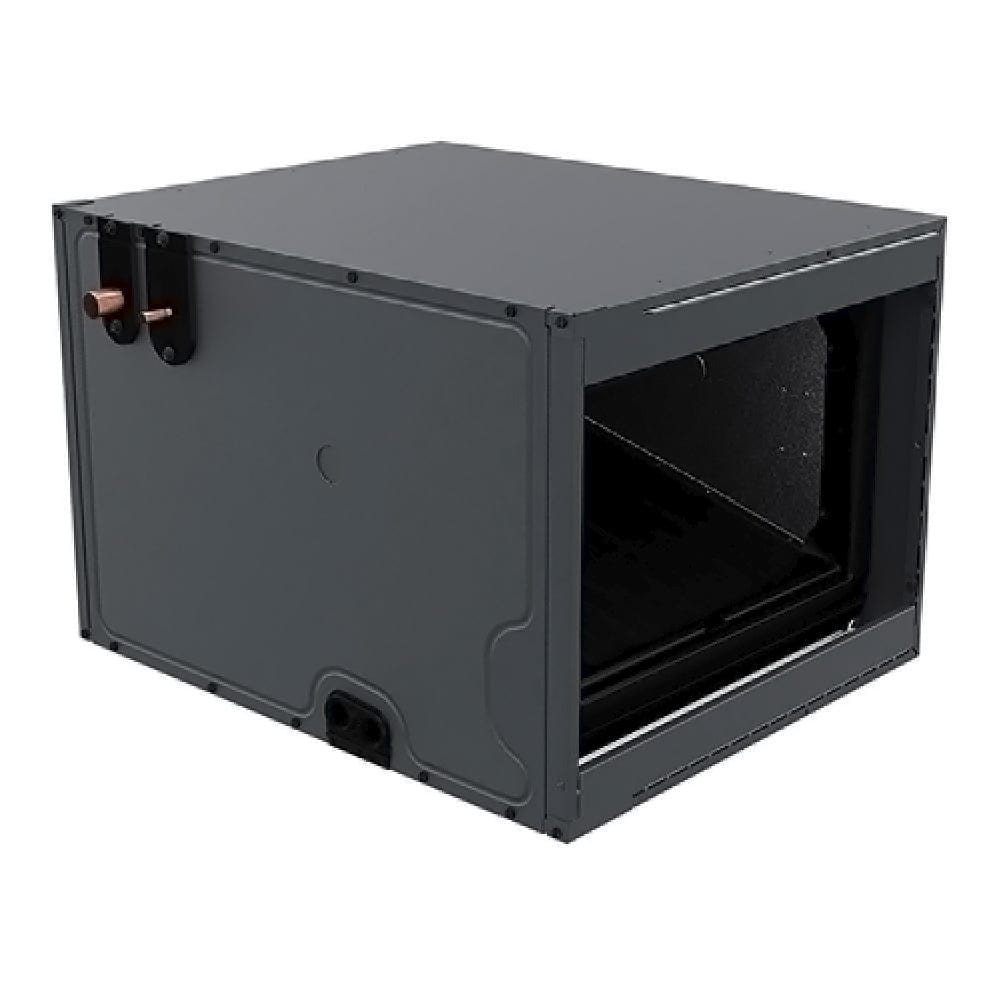

Goodman CHPTA4830C3 4.0 Ton Horizontal A Coil Evaporator

Product Description

The Goodman CHPTA4830C3 is a four-ton evaporator coil built for horizontal airflow applications. This all-aluminum cased A coil is compatible with R-32 refrigerant. It includes a factory-installed thermal expansion valve for efficient cooling. The unit features a thermoplastic drain pan that minimizes condensation issues, and its foil-faced insulated cabinet enhances overall efficiency.

• All-aluminum construction for durability.
• Optimized for R-32 refrigerant.
• Factory-installed thermal expansion valve included.

Product Highlights

The Goodman CHPTA4830C3 provides reliable cooling performance for residential and commercial applications.

Product Information

Standard Information

• Model Number: CHPTA4830C3
• Type: Evaporator Coil

Technical Specifications

• Product Line: CHPTA
• Refrigerant Type: R-32
• Casing: Cased
• Configuration: Horizontal
• Capacity: 4.0 Tons
• Cooling BTU: 48000
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Cabinet Width: 21 Inches
• Product Width: 30 Inches
• Product Depth: 21 Inches
• Product Height: 21 Inches
• Weight: 63 Pounds
• Certifications: AHRI, ETL, ISO
• Parts Warranty: 10 Limited Years
