Goodman CHPTA4230C3 3.5 Ton Horizontal A Coil

Product Description

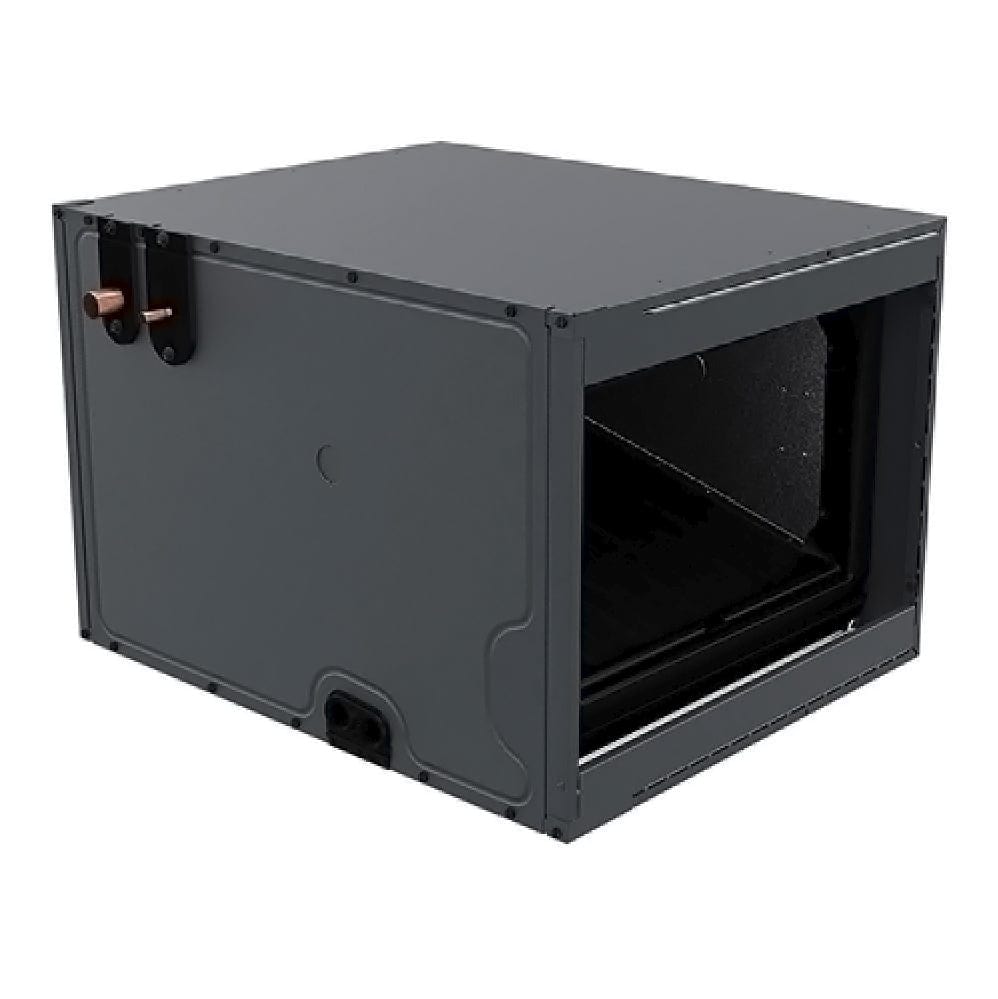

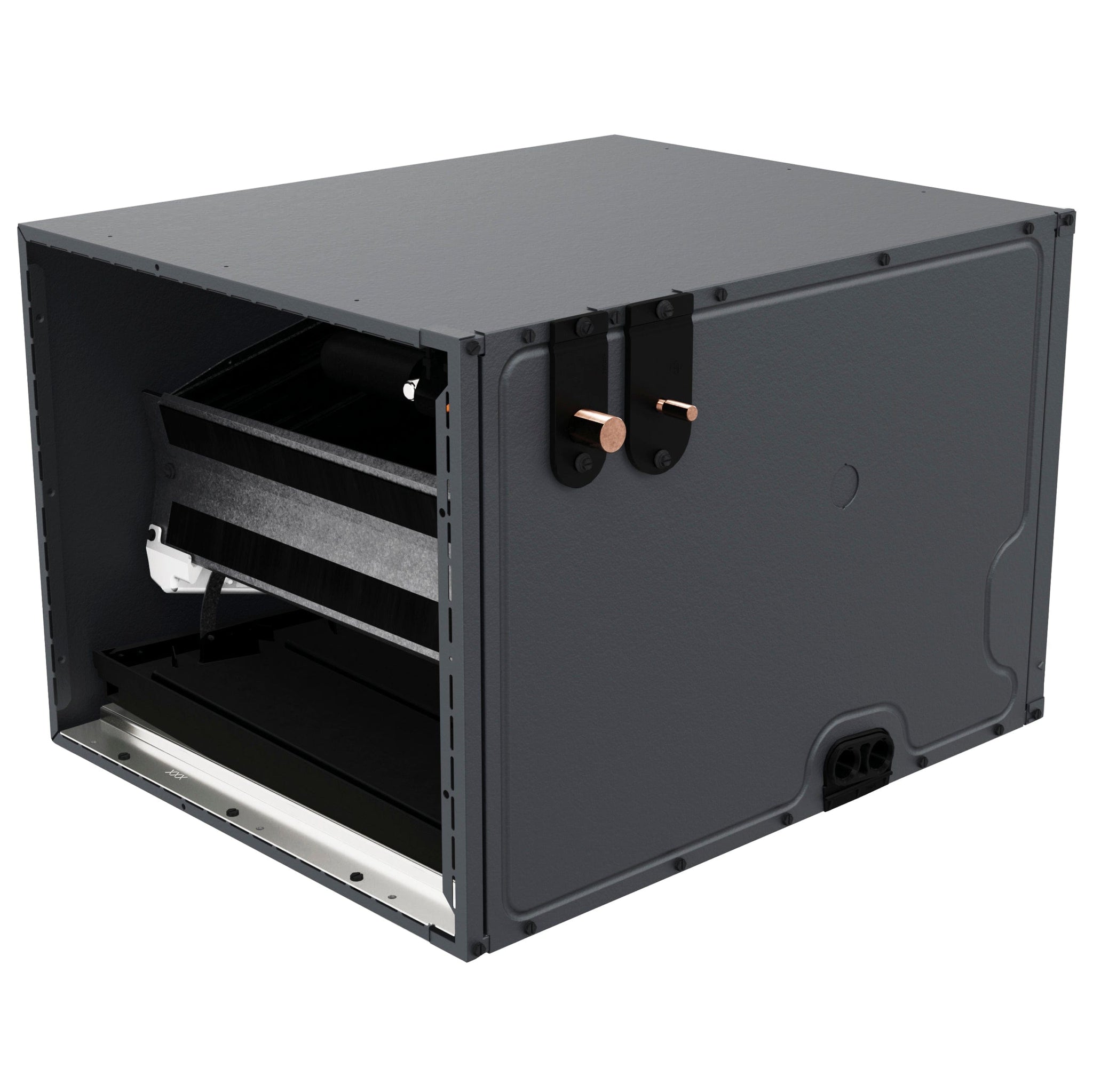

The Goodman CHPTA4230C3 is an evaporator coil designed for horizontal airflow in split system air conditioners and heat pumps. This coil features all-aluminum construction for enhanced durability and heat transfer efficiency. It is compatible with R-32 refrigerants and comes with a factory-installed thermal expansion valve (TXV).

• Designed specifically for horizontal airflow applications.
• Factory-installed TXV for optimal refrigerant control.
• Durable construction enhances product longevity.

Product Highlights

The Goodman CHPTA4230C3 effectively supports cooling loads of up to 42,000 BTUs, making it suitable for residential and commercial applications.

Product Information

Standard Information

• Brand: Goodman
• MPN: CHPTA4230C3

Technical Specifications

• Product Line: CHPTA
• Product Category: Evaporator Coil
• Configuration: Horizontal
• Cooling Capacity: 3.5 Tons
• Cooling BTU: 42000 BTU
• Refrigerant Type: R-32
• TXV Installed: Yes
• Suction Line Size: 7/8 Inch
• Liquid Line Size: 3/8 Inch
• Cabinet Width: 21 Inches
• Product Height: 21 Inches
• Product Width: 30 Inches
• Product Depth: 21 Inches
• Product Weight: 70 Pounds
• Certifications: AHRI, ETL, ISO
• Warranty: 10 Year Parts
• Plenum Opening Width: 19 Inches
• Plenum Opening Height: 20 Inches
