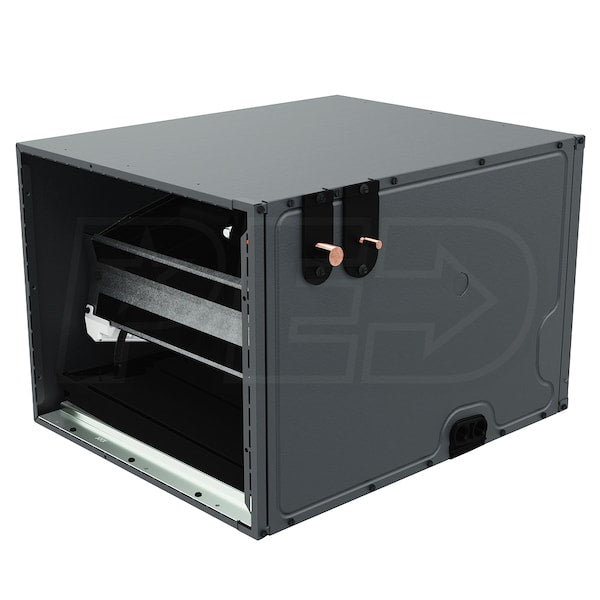

GOODMAN CHPTA2426C3 Goodman CHPTA2426C3 2 Ton Horizontal Cased Evaporator Coil with TXV

Product Description

The Goodman CHPTA2426C3 is a two-ton horizontal cased evaporator coil ideal for split system air conditioners and heat pumps. This unit features a durable all-aluminum coil optimized for R-32 refrigerant, enhancing its effectiveness and efficiency.

• Includes a factory-installed thermal expansion valve (TXV).
• Rust-resistant thermoplastic drain pan with secondary drain connections.
• Cabinet made of galvanized material with insulation.

Product Highlights

Designed for reliability and ease of installation, the Goodman evaporator coil enhances performance in cooling applications.

Product Information

Standard Information

• Model Number: CHPTA2426C3
• Product Line: CHPTA

Technical Specifications

• Configuration: Horizontal
• Refrigerant Type: R-32
• Capacity: 2.0 Tons
• Cooling Capacity: 24000 BTU
• TXV Installed: Yes
• Liquid Line Size: 3/8 Inch
• Suction Line Size: 7/8 Inch
• Cabinet Width: 21 Inches
• Dimensions: 21 Width x 26 Depth x 21 Height Inches
• Product Weight: 42 Pounds
• Shipping Weight: 57 Pounds
• Airflow Orientation: Horizontal
• Certifications: AHRI, ETL, ISO
• UPC: 663051688490
