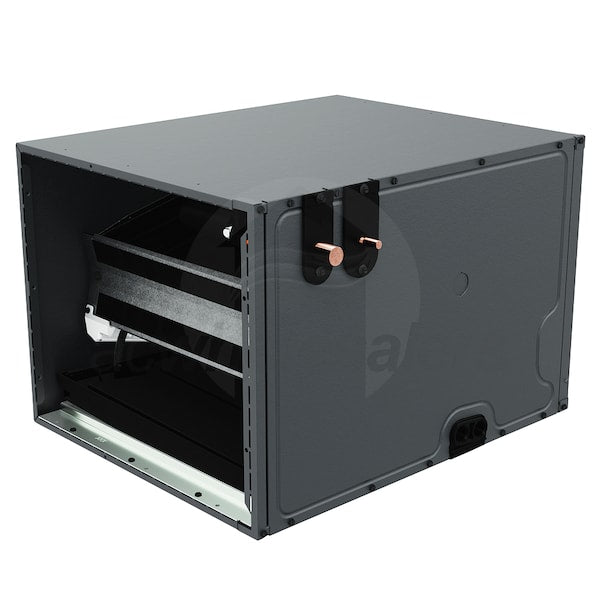

Goodman CHPTA1822B3 AlumaFin7™ Evaporator Coil, Horizontal A, Ton (1.5 Tons)

Product Description

The Goodman CHPTA1822B3 is a 1.5 Ton horizontal A coil designed for use in horizontal airflow applications. This cased coil features all-aluminum construction for improved durability and heat transfer efficiency. It is optimized for R-32 refrigerant and includes a factory-installed internal thermostatic expansion valve. The galvanized, embossed, and insulated cabinet protects the coil and prevents air leakage.

• All-aluminum evaporator coil maximizes surface area and optimizes heat transfer.
• Galvanized, embossed, and insulated cabinet prevents air leakage.
• Compatible with R-32 refrigerant.

Product Highlights

The Goodman CHPTA1822B3 ensures efficient and durable performance with its all-aluminum coil, secure cabinet, and R-32 refrigerant compatibility.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: CHPTA1822B3

Technical Specifications

• MPN: CHPTA1822B3
• Brand: GOODMAN
• Size: 1.5 TON
• Refrigerant: R-32
• Type: Evaporator Coil
• Product Line: CHPTA
• Product Category: Evaporator Coil
• Casing: Cased
• Style: A Coil
• Configuration: Horizontal
• TXV Installed: Yes
• Capacity: 1.5 Tons
• Cooling BTU: 18000
• Nominal Minimum Cooling Capacity: 18000 BTU
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Cabinet Width: 17 1/2 Inches
• Product Height: 17 1/2 Inches
• Product Width: 22 Inches
• Product Depth: 21 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Suction Valve Size (Inches): 3/4
• Liquid Valve Size (Inches): 3/8
• Height (Inches): 17 1/2
• Width (Inches): 22
• Depth (Inches): 21
• Model Number(s): CHPTA1822B3
• Category: Evaporator Coils
• Ton: 1.5 Ton
