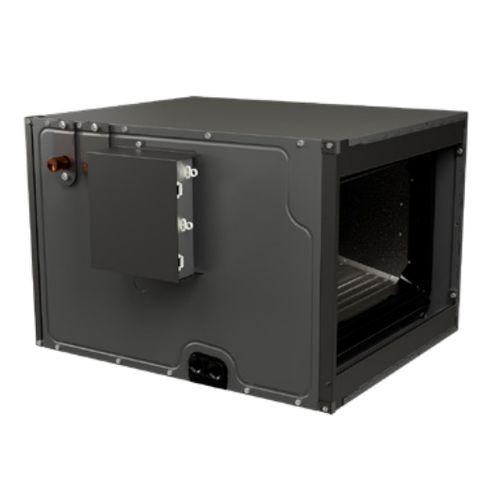

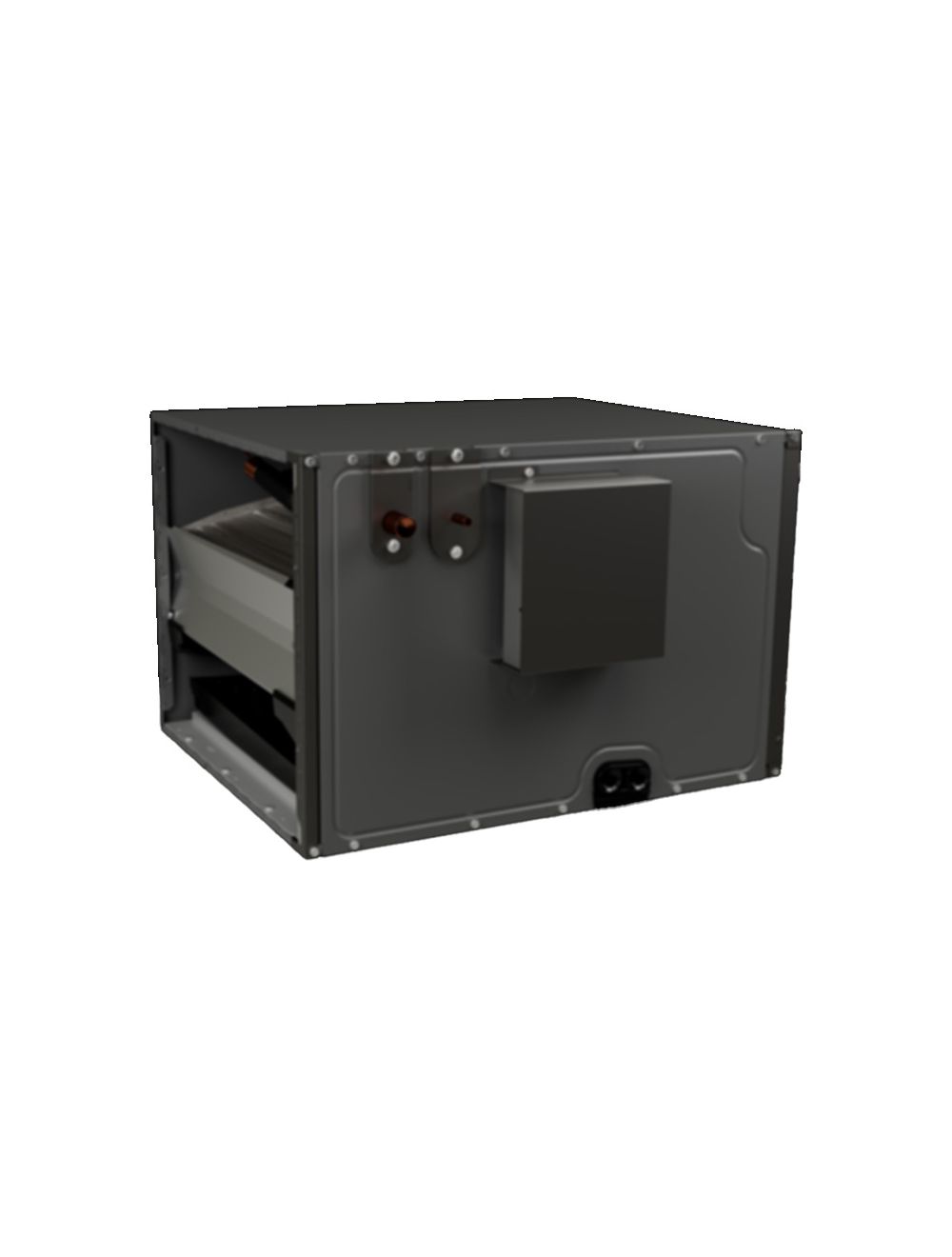

GOODMAN CHPEA4830D3 Goodman CHPEA4830D3 4 Ton Horizontal A Evaporator Coil

Product Description

The Goodman CHPEA4830D3 is a four-ton evaporator coil designed specifically for horizontal airflow applications. This evaporator coil features an all-aluminum construction and is optimized for compatibility with R-32 refrigerant. The unit comes equipped with a factory-installed electronic expansion valve (EEV) to enhance refrigerant control. Its casing includes foil-faced insulation to minimize cabinet condensation and features a thermoplastic drain pan with secondary drain connections.

• Optimized for R-32 refrigerant
• Includes a factory-installed electronic expansion valve
• Designed for horizontal airflow and cased installation

Product Highlights

This evaporator coil is ideal for HVAC systems requiring efficient cooling in residential or commercial settings.

Product Information

Standard Information

• Brand: GOODMAN
• MPN: CHPEA4830D3

Technical Specifications

• Unit Type: Indoor
• Product Type: Evaporator Coil
• Product Line: CHPEA
• Refrigerant Type: R-32
• Capacity: 4.0 Tons
• Cooling BTU: 48000
• Configuration: Horizontal
• Style: A Coil
• Casing: Cased
• TXV Installed: Yes
• Suction Connection Size: 1 1/8 Inches
• Liquid Connection Size: 3/8 Inch
• Dimensions: 30 W x 21 D x 24-1/2 H
• Cabinet Width: 30 Inches
• Product Weight: 63 Pounds
• Shipping Weight: 78 Pounds
• Certifications: AHRI Certified; ETL Listed; ISO Certified
• Parts Warranty: 12 Limited Years
