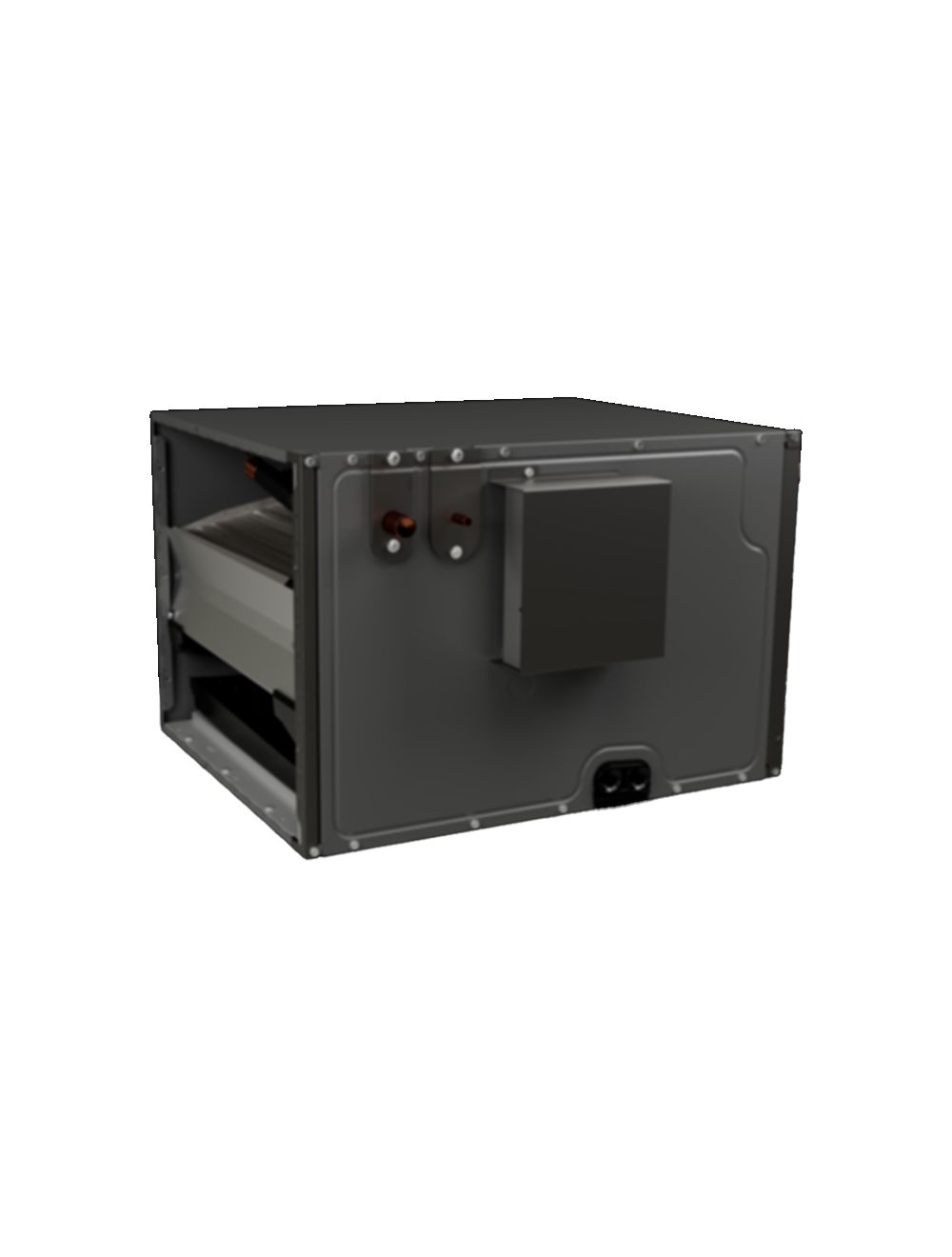

GOODMAN CHPEA3026B3 Goodman CHPEA3026B3 3.0 Ton Horizontal A Coil Evaporator

Product Description

The Goodman CHPEA3026B3 is a three-ton evaporator coil ideal for horizontal airflow setups. This A coil is built with all-aluminum materials for durability and efficient heat transfer. Designed for R-32 refrigerant, it includes a factory-installed electronic expansion valve for precise refrigerant control.

• Cased A coil suitable for horizontal configuration.
• Constructed entirely from aluminum for enhanced reliability.
• Equipped with a factory-installed electronic expansion valve.

Product Highlights

This evaporator coil is optimized for effective cooling in various HVAC applications.

Product Information

Standard Information

• Type: Evaporator Coil
• Product Line: CHPEA

Technical Specifications

• Model Number: CHPEA3026B3
• Refrigerant Type: R-32
• Casing: Cased
• Style: A Coil
• Configuration: Horizontal
• TXV Installed: Yes
• Cooling Capacity: 36000 BTU
• Cabinet Width: 26 Inches
• Product Height: 17 1/2 Inches
• Product Width: 26 Inches
• Product Depth: 21 Inches
• Product Weight: 48 Pounds
• Shipping Weight: 63 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 12 Limited Years
