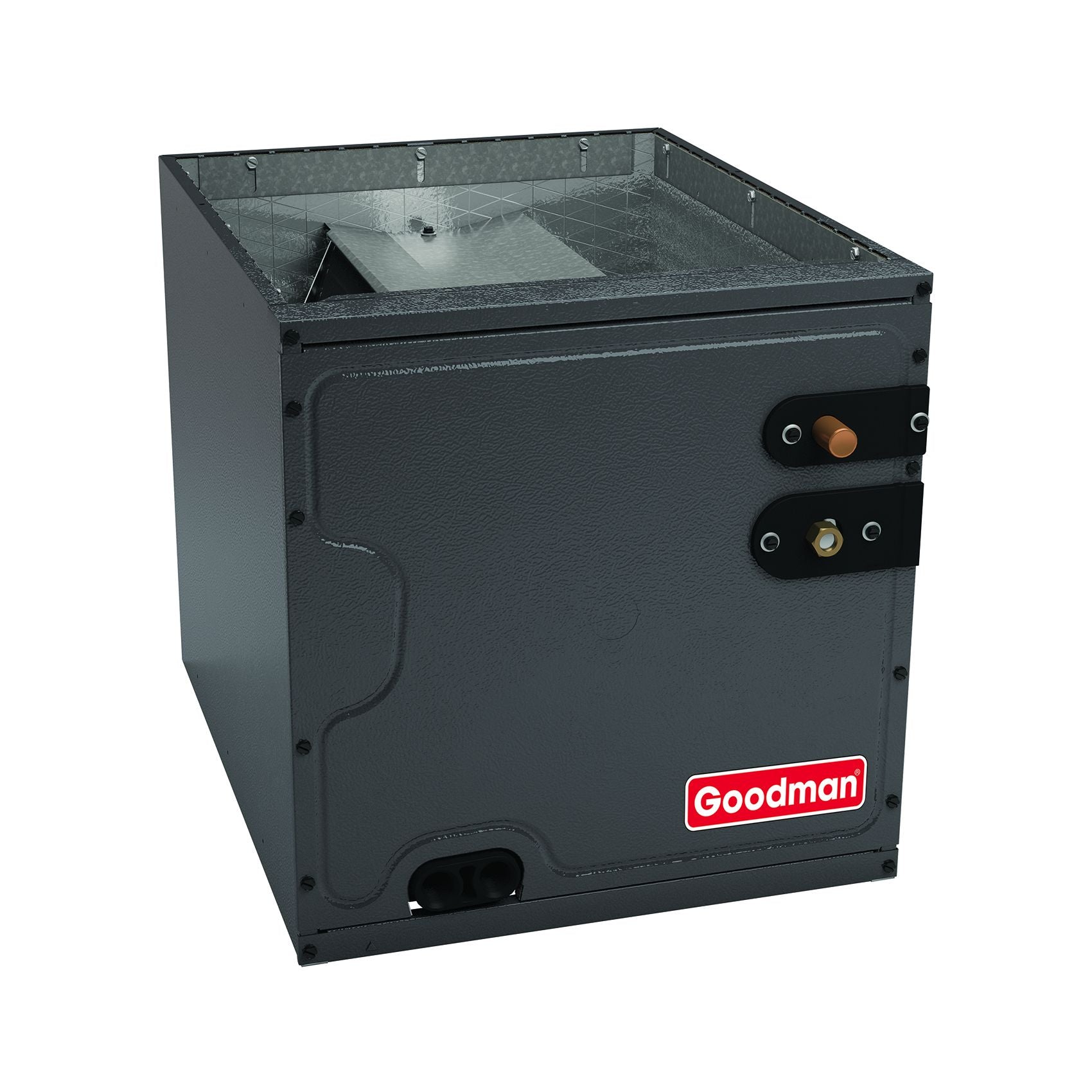

Goodman CHPEA2422B3 2 Ton Evaporator Coil R-32

Product Description

The Goodman CHPEA2422B3 is a two-ton evaporator coil designed for both upflow and downflow applications. This unit is compatible with R-32 refrigerants, enhancing its energy efficiency and performance. The construction features an all-aluminum coil and a rust-resistant thermoplastic drain pan. It comes with a galvanized cabinet that has a leather-grain embossed finish, ensuring durability. Equipped with a factory-installed thermal expansion valve (TXV), this coil supports both cooling and heat pump functions. The effective design promotes optimal heat transfer and minimizes energy loss. This unit is AHRI certified and ETL listed, which ensures compliance with industry standards.

• Designed for upflow or downflow configurations.
• Includes a factory-installed thermal expansion valve for optimal performance.
• Constructed with a thermoplastic drain pan for rust resistance.

Product Highlights

This evaporator coil is ideal for HVAC professionals looking for a reliable and efficient cooling solution.

Product Information

Standard Information

• Brand: Goodman
• Model Number: CHPEA2422B3

Technical Specifications

• Refrigerant Type: R-32
• Cooling Capacity: 2 Ton
• Cooling BTU: 24000 BTU
• Air Flow Direction: Upflow, Downflow
• Coil Type: A Coil
• TXV Installed: Yes
• Suction Line Size: 3/4 inch
• Liquid Line Size: 3/8 inch
• Product Width: 17.5 inches
• Product Height: 22 inches
• Product Depth: 21 inches
• Product Weight: 25 pounds
• Shipping Weight: 40 pounds
• Certifications: AHRI, ETL, ISO
• Parts Warranty: 10 Years
