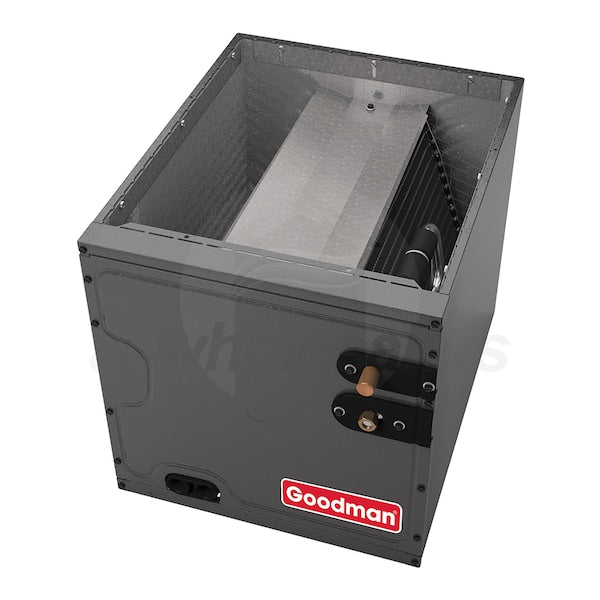

Goodman CAUTA3626B3 3 Ton R-32 Upflow/Downflow Cased A Coil with TXV

Product Description

The Goodman CAUTA3626B3 is a three-ton cased A coil suitable for both upflow and downflow configurations in split system air conditioners and heat pumps. This unit is engineered with an all-aluminum evaporator coil, which is specifically optimized for R-32 refrigerant use. It comes equipped with a factory-installed thermostatic expansion valve (TXV) and features a thermoplastic drain pan, enhancing both efficiency and durability.

• All-aluminum evaporator design.
• Compatible with R-32 refrigerant systems.
• Includes factory-installed TXV for improved performance.

Product Highlights

The Goodman CAUTA3626B3 enhances heat transfer efficiency and durability for effective cooling in HVAC applications.

Product Information

Standard Information

• Brand: Goodman
• Product Line: CAPTA

Technical Specifications

• MPN: CAUTA3626B3
• Tonnage: 3.0 Tons
• Cooling Capacity: 36,000 BTU
• Refrigerant Type: R-32
• Coil Type: A Coil
• Configuration: Upflow/Downflow
• Casing: Cased
• TXV Installed: Yes
• Suction Line Size (OD): 7/8 Inches
• Liquid Line Size (OD): 3/8 Inches
• Cabinet Width: 17 1/2 Inches
• Width: 17.5 Inches
• Depth: 21 Inches
• Height: 26 Inches
• Product Weight: 48 lbs
• Shipping Weight: 48 lbs
• AHRI Certified: Yes
• ETL Listed: Yes
• ISO Certified: Yes
