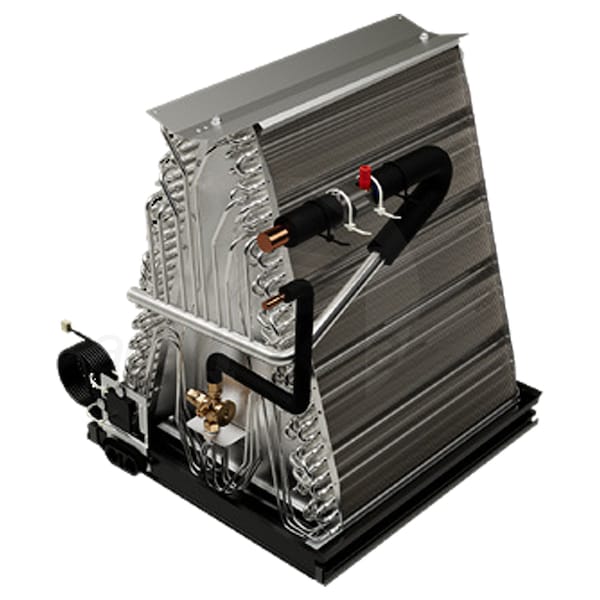

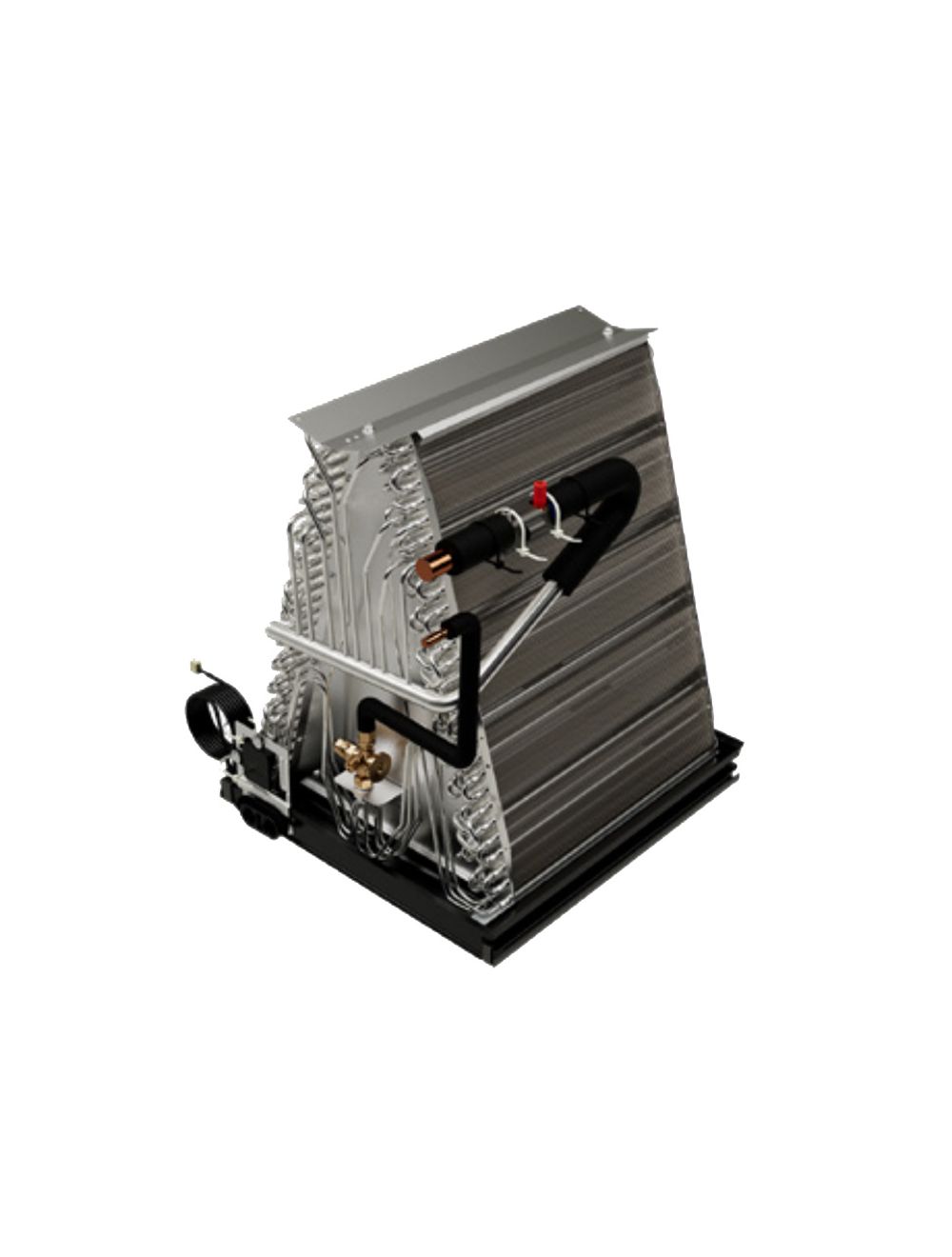

Goodman CAUTA3026B3 Evaporator Coil, Upflow/Downflow, (2.5 Ton)

Product Description

The Goodman CAUTA3026B3 is an uncased A-coil evaporator suitable for both upflow and downflow systems. This component is compatible with R-32 refrigerant, enhancing its operational efficiency. The evaporator coil comes equipped with a factory-installed TXV, allowing for optimal refrigerant flow.

• Uncased A-coil design for vertical installation
• Engineered for use with R-32 refrigerant
• Includes factory-installed thermostatic expansion valve (TXV)

Product Highlights

This evaporator coil provides efficient heat transfer and high corrosion resistance due to its all-aluminum construction. Its design minimizes condensation through a thermoplastic drain pan and foil-faced insulation.

Product Information

Standard Information

• Brand: GOODMAN
• MPN: CAUTA3026B3

Technical Specifications

• Coil Type: A Coil
• Casing: Uncased
• Configuration: Upflow, Downflow
• Refrigerant: R-32
• Refrigerant Control: TXV
• Cooling Capacity: 1.5 - 2.5 Ton
• Cooling BTU: 30000
• Suction Line Size: 7/8 inch
• Liquid Line Size: 3/8 inch
• Width: 16.5 inches
• Depth: 21.33 inches
• Height: 22.33 inches
• Weight: 15 lbs
• Material: All-Aluminum
• Expansion Valve: Factory-Installed TXV
• Drain Pan: Rust-Resistant Thermoplastic
• Insulation: Foil-Faced
• Certifications: AHRI Certified, ETL Listed
• Tonnage: 2.5
