Goodman CAUTA3022A3 Evaporator Coil, Upflow/Downflow, 2.5 Ton

Product Description

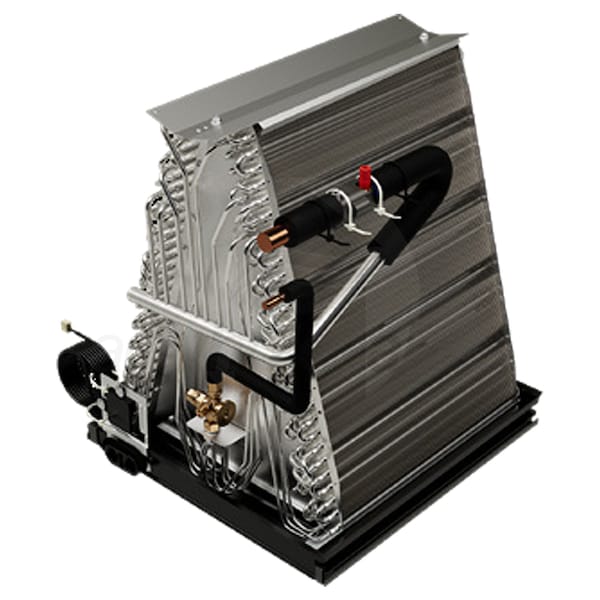

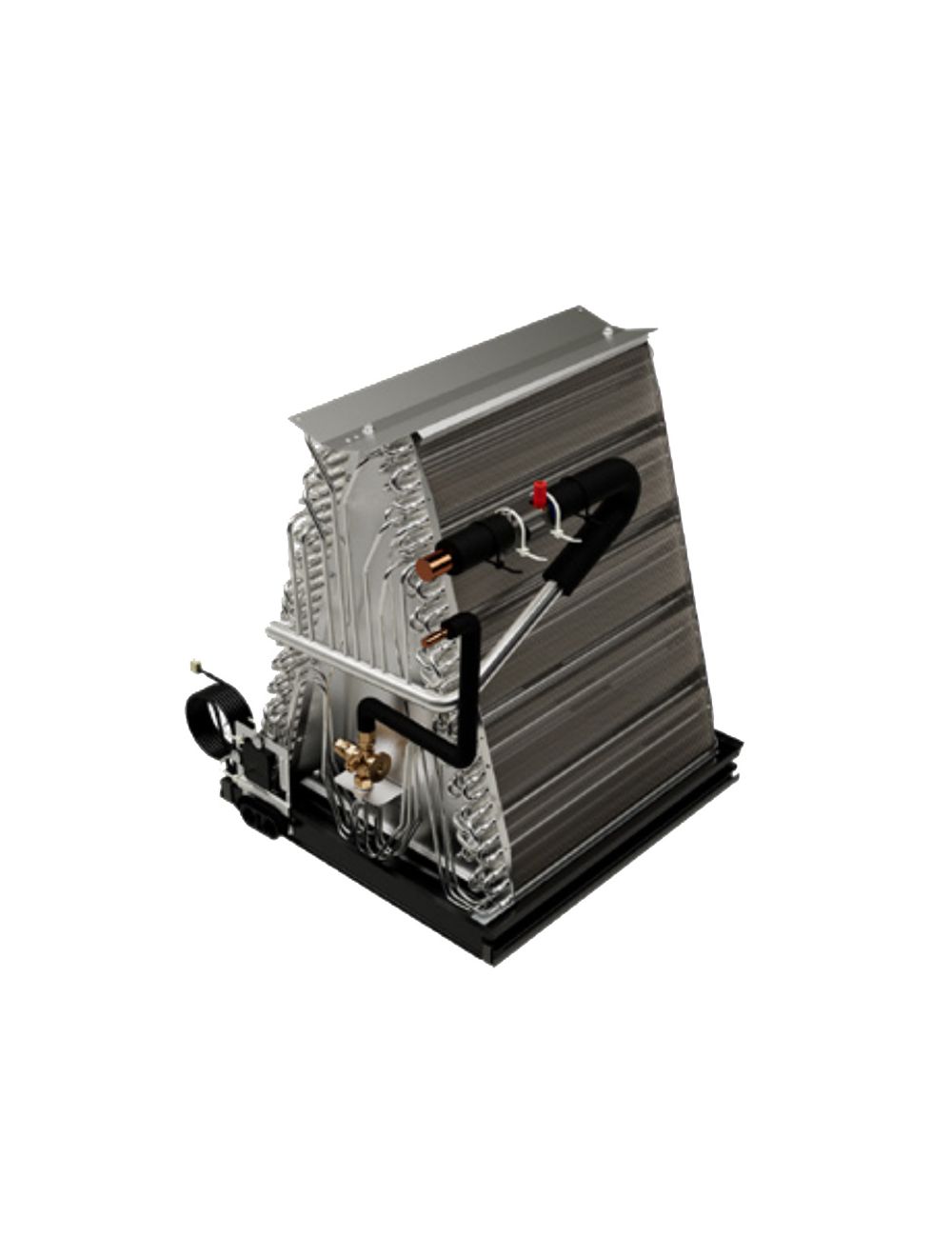

The Goodman CAUTA3022A3 is an uncased evaporator coil suitable for both upflow and downflow installations. This unit has an all-aluminum construction and is specifically designed to work effectively with R-32 refrigerant. It comes equipped with a factory-installed thermal expansion valve (TXV) for enhanced cooling performance.

• All-aluminum evaporator coil design
• Suitable for R-32 refrigerant systems
• Includes factory-installed TXV for cooling

Product Highlights

The CAUTA3022A3 features a thermoplastic drain pan with secondary drain connections, enhancing drainage performance. The internal casing is insulated with foil-faced material to reduce condensation.

Product Information

Standard Information

• Brand: Goodman
• MPN: CAUTA3022A3

Technical Specifications

• Coil Application: Upflow/Downflow
• Refrigerant Type: R-32
• Tonnage: 2.5
• Casing: Uncased
• TXV Installed: Yes
• Cooling BTU: 30000
• Nominal Minimum Cooling Capacity: 24000 BTU
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Unit Width: 13 inches
• Unit Height: 18.3 inches
• Unit Depth: 21.3 inches
• Product Weight: 10 pounds
• Certifications: AHRI Certified, ETL Listed, ISO Certified
