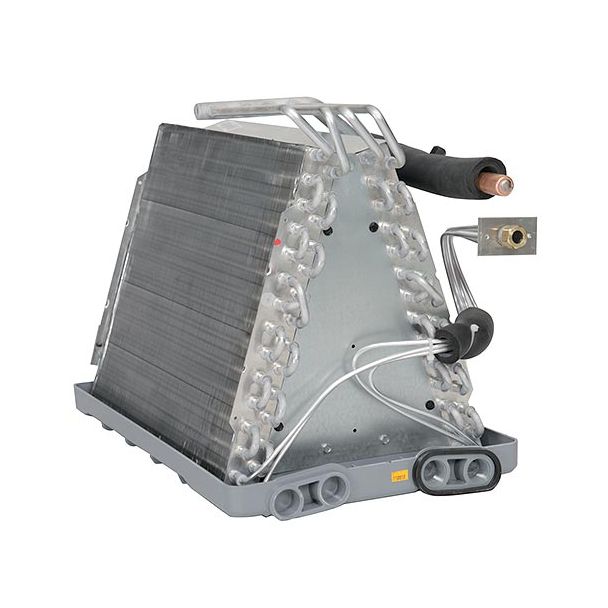

Goodman CAUFA2422A6 CAUF - 2 Ton Upflow/Downflow A Coil - Uncased

Product Description

The Goodman CAUFA2422A6 is a 2 ton uncased A coil designed for upflow or downflow applications. This evaporator coil features all-aluminum construction and an advanced design for improved durability and heat transfer efficiency. It is pressure tested twice before leaving the factory. Compatible with both R-22 and R-410A refrigerants.

• All-Aluminum Coil maximizes surface area and optimizes heat transfer.
• Rust-resistant thermoplastic drain pan provides a safe, effective way to trap condensate.
• Compatible with both R-22 and R-410A refrigerants.

Product Highlights

The Goodman CAUFA2422A6 evaporator coil is suitable for replacing failing coils or installing new systems. It features an all-aluminum design and multi-refrigerant compatibility.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: CAUFA2422A6

Technical Specifications

• Product Category: Evaporator Coil
• Type: Evaporator Coil
• Product Line: CAUF
• Refrigerant Type: R-22/R-410A
• Casing: Uncased
• Style: A Coil
• Configuration: Upflow/Downflow
• TXV Installed: No
• Capacity: 2.0 Tons
• Cooling BTU: 24000
• Nominal Minimum Cooling Capacity: 24000 BTU
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Cabinet Width: 14 Inches
• Product Height: 18 1/8 Inches
• Product Width: 12 7/8 Inches
• Product Depth: 20 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• Brand: Goodman
• Model: Goodman CAUFA2422A6
• MPN: CAUFA2422A6
• Liquid Line: 3/8"
• Suction Line: 3/4"
• Tonnage: 2 Ton
• Height: 18"
