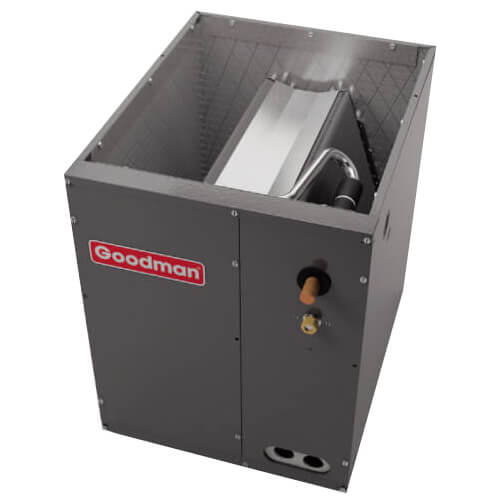

Goodman CAUF3137B6 Uncased Evaporator Coil 2.5 - 3 Ton (W 16-1/2 inches x D 20-1/8 inches x H 27 inches)

Product Description

The Goodman CAUF3137B6 Uncased Upflow/Downflow Indoor Coil is designed for split system air conditioners and heat pumps. The evaporator coil operates with an air conditioner or heat pump of two different tonnages and comes factory equipped with an orifice (Flowrater) for the small listed tonnage. It is suitable for use with R410A and R22 refrigerants.

• Rust-proof, high-temperature, thermoplastic drain pans feature a low water-retention design
• Rifled copper tubing and corrugated aluminum fin coils

Product Highlights

This Goodman evaporator coil features a split-seam front for easy access and a high quality post-paint cabinet.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: CAUF3137B6
• Country of Origin: USA

Technical Specifications

• BTU: 30000-36000
• Ton: 2.5, 3
• Airflow: Upflow, Downflow
• Application: HVAC
• Liquid Line: 3/8"
• Suction Line: 3/4"
• Cooling Capacity (BTU): 36000
