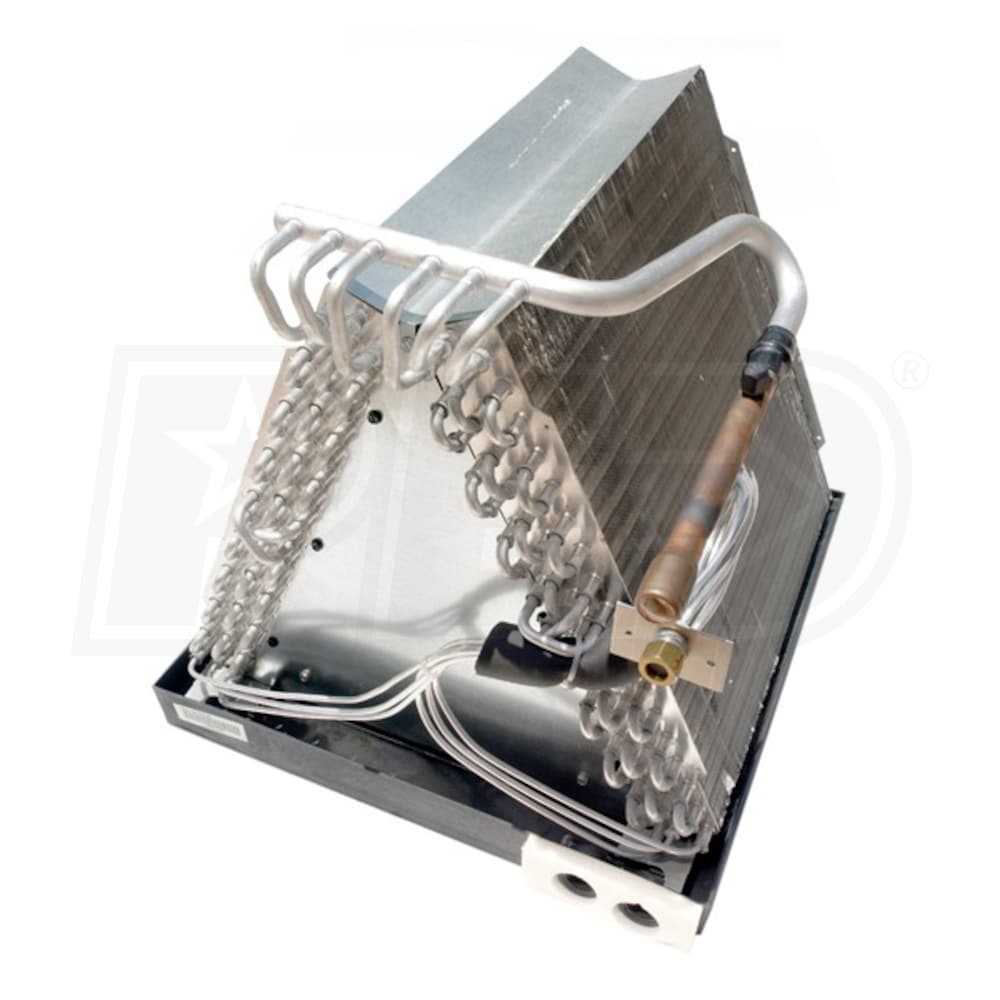

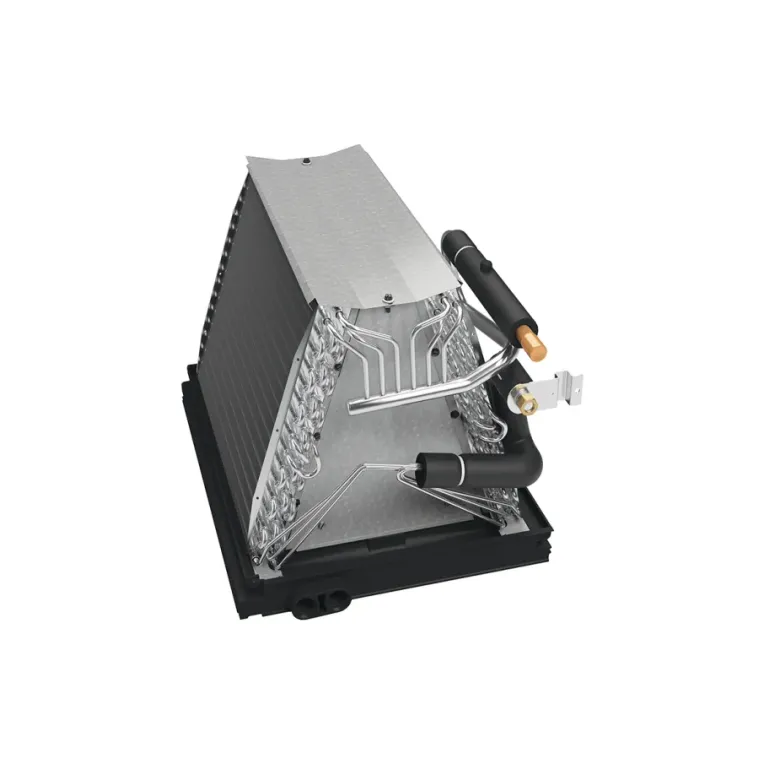

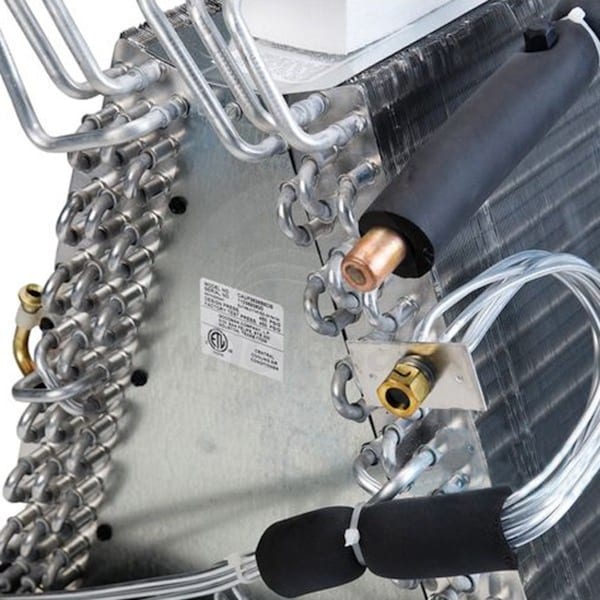

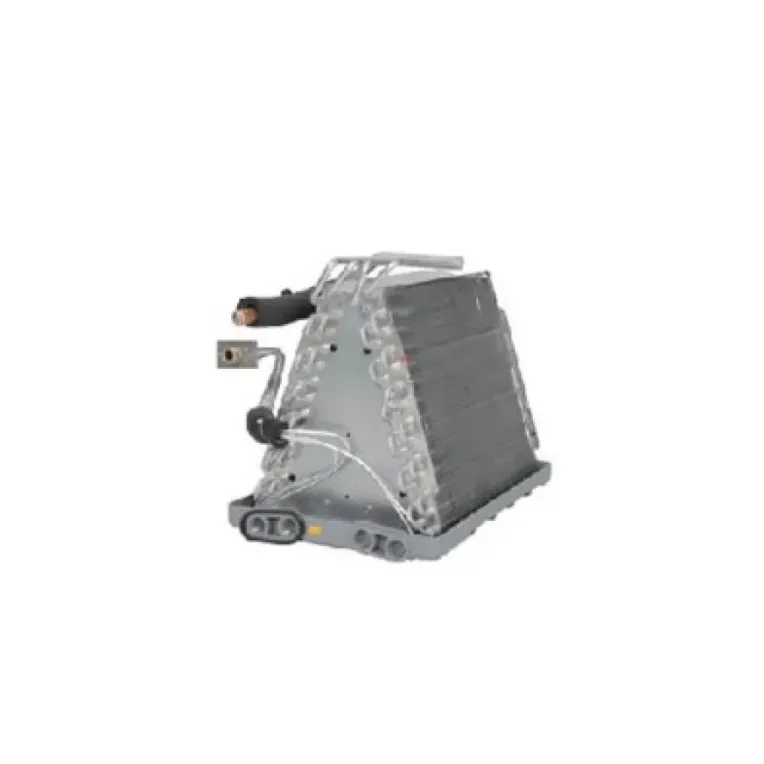

Goodman CAUF3131C6 2.5 Ton Uncased Evaporator Coil

Product Description

The Goodman CAUF3131C6 is a two point five ton uncased evaporator coil suitable for split system air conditioning and heat pump applications. This coil supports both upflow and downflow configurations. It is made from all-aluminum material for enhanced durability and effective heat transfer.

• Designed for upflow or downflow applications.
• Constructed with an all-aluminum coil.
• Features a thermoplastic, rust-resistant drain pan.

Product Highlights

This evaporator coil includes an orifice expansion device and works with R-410A refrigerant. It is certified by AHRI and ETL.

Product Information

Standard Information

• Brand: Goodman
• MPN: CAUF3131C6

Technical Specifications

• Product Type: Evaporator Coil
• Tonnage: 2.5 Ton(s)
• Configuration: Upflow/Downflow
• Refrigerant Type: R-410A
• Liquid Line Size (OD): 3/8 Inches
• Suction Line Size (OD): 3/4 Inches
• Width: 20 Inches
• Height: 20 Inches
• Depth: 20 1/8 Inches
• Product Weight: 31 Pounds
• Cooling BTU: 30000
• AHRI Certified: Yes
• ETL Listed: Yes
• Casing: Uncased
• Number of Rows: 3
• Refrigerant Metering Device: Orifice
• Orifice Size: 0.068 inches
