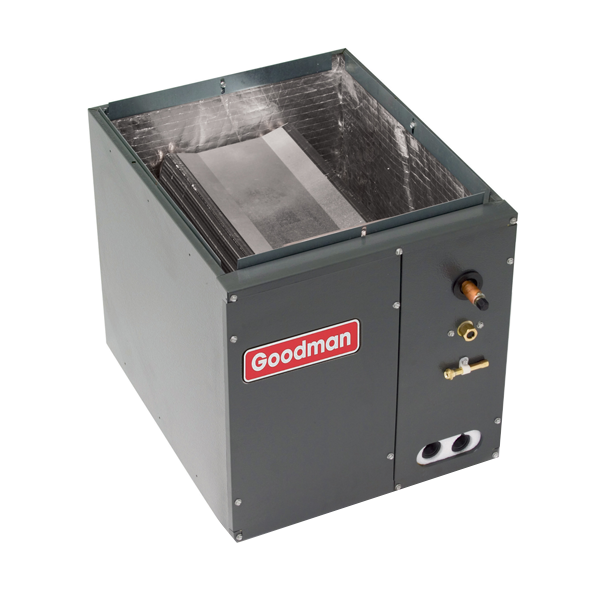

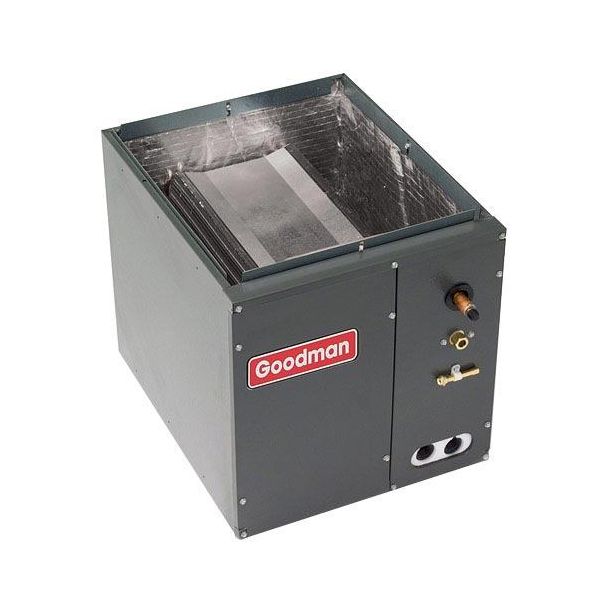

Goodman CAPT3131C4 2.5 Ton Cased Evaporator Coil with TXV

Product Description

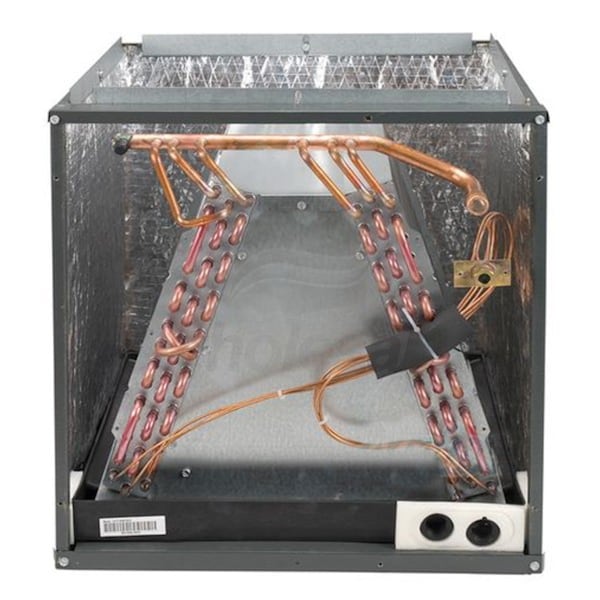

The Goodman CAPT3131C4 is a cased evaporator coil designed for split system air conditioners and heat pumps. It is suitable for both upflow and downflow applications. This unit features rifled aluminum tubing, which aids in efficient refrigerant flow, along with louvered aluminum fin coils for optimal heat exchange. It comes equipped with a factory-installed TXV (Thermal Expansion Valve) to ensure enhanced refrigerant control and efficiency.

• Designed for upflow or downflow configurations
• Includes a mold-resistant thermoplastic drain pan
• Built with a durable galvanized steel cabinet

Product Highlights

This evaporator coil is compatible with R-410A refrigerant and features a split-seam front for easy access during maintenance. Its cabinet is made from galvanized steel with a leather-grain finish that improves durability.

Product Information

Standard Information

• Brand: Goodman
• MPN: CAPT3131C4

Technical Specifications

• Configuration: Upflow / Downflow
• Tonnage: 2.5 Ton
• Cooling BTU: 30000 BTU
• Refrigerant Type: R-410A
• Liquid Line Size: 3/8 Inches
• Suction Line Size: 3/4 Inches
• Cabinet Width: 21 Inches
• Height: 22 Inches
• Depth: 21 Inches
• Weight: 50 lbs
• Casing: Cased
• Style: A-Coil
• AHRI Certified: Yes
• ETL Listed: Yes
• Warranty: 10 Years with Online Registration
