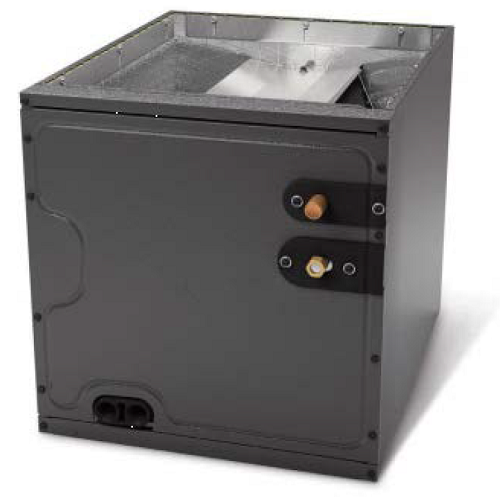

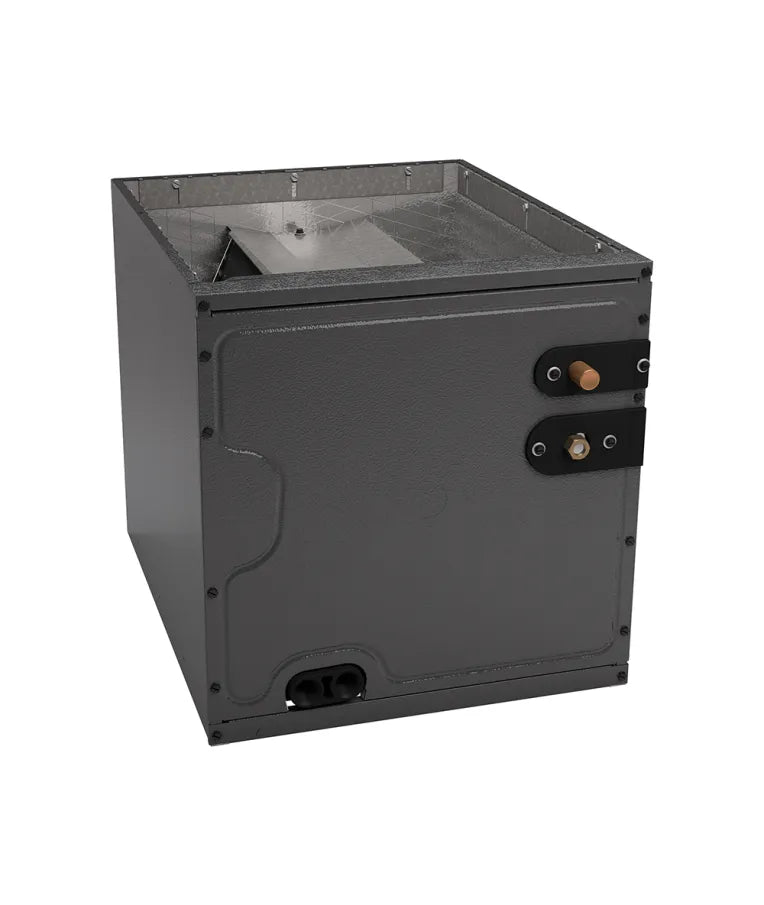

Goodman CAPFA3626C6 air conditioner cased coil 3 tons 21 in. wide

Product Description

The Goodman CAPFA3626C6 is an air conditioner cased coil designed with accessibility and longevity in mind. This cased A coil is suitable for upflow or downflow applications. Its all-aluminum construction and advanced design enhance durability and heat transfer efficiency. It is pressure tested twice before leaving the factory.

• Features a reliable all-aluminum design with sine fins and grooved tubes for efficient heat transfer.
• Protected by a galvanized, embossed, and insulated cabinet to prevent air leakage.
• Compatible with both R-22 and R-410A refrigerants.

Product Highlights

The Goodman CAPFA3626C6 ensures efficient comfort with its durable construction and versatile refrigerant compatibility.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: CAPFA3626C6
• Country of Origin: USA

Technical Specifications

• Casing: Cased
• Tonnage: 3.0
• Cabinet Width: 21 Inches
• Performance Capacity: 3.0 Tons
• Performance Cooling BTU: 36000
• Product Depth: 21 Inches
• Product Width: 21 Inches
• Type: Evaporator Coil
• ETL Listed: Yes
• Product Height: 26 Inches
• Style: A Coil
• Product Category: Evaporator Coil
• AHRI Certified: Yes
• Product Line: CAPF
• Liquid Connection Size: 3/8 Inch
• Configuration: Upflow/Downflow
• TXV Installed: No
• Suction Connection Size: 7/8 Inch
• Refrigerant Type: R-22/R-410A
• Nominal Minimum Cooling Capacity: 36000 BTU
• BTU: 36000
• Airflow: Downflow, Upflow
• Used With: R22, R410A
• Application: HVAC
• Width (Inches): 21"
• Height (Inches): 26"
• Cooling Capacity (BTU): 36000
• Brand/Manufacturer: Goodman
• Refrigerant: R410A or R22
• Depth: 21"
• Series: CAPFA Series
• Coil Type: Type A
• Connection Size: 3/4 in
• Connection Type: FNPT
• Piston Size: 0.065 in
• Material: Aluminum
• Finish: Painted
• Dimensions: 26 in H x 21 in W x 21 in D
• Suitable For Use With: Air Conditioners, Heat Pumps
• Manufacturer: Amana-Goodman
• Part Number: CAPFA3626C6
