Goodman CAPFA3022B3 Cased A Coil 2.5 Ton R-32 TXV

Product Description

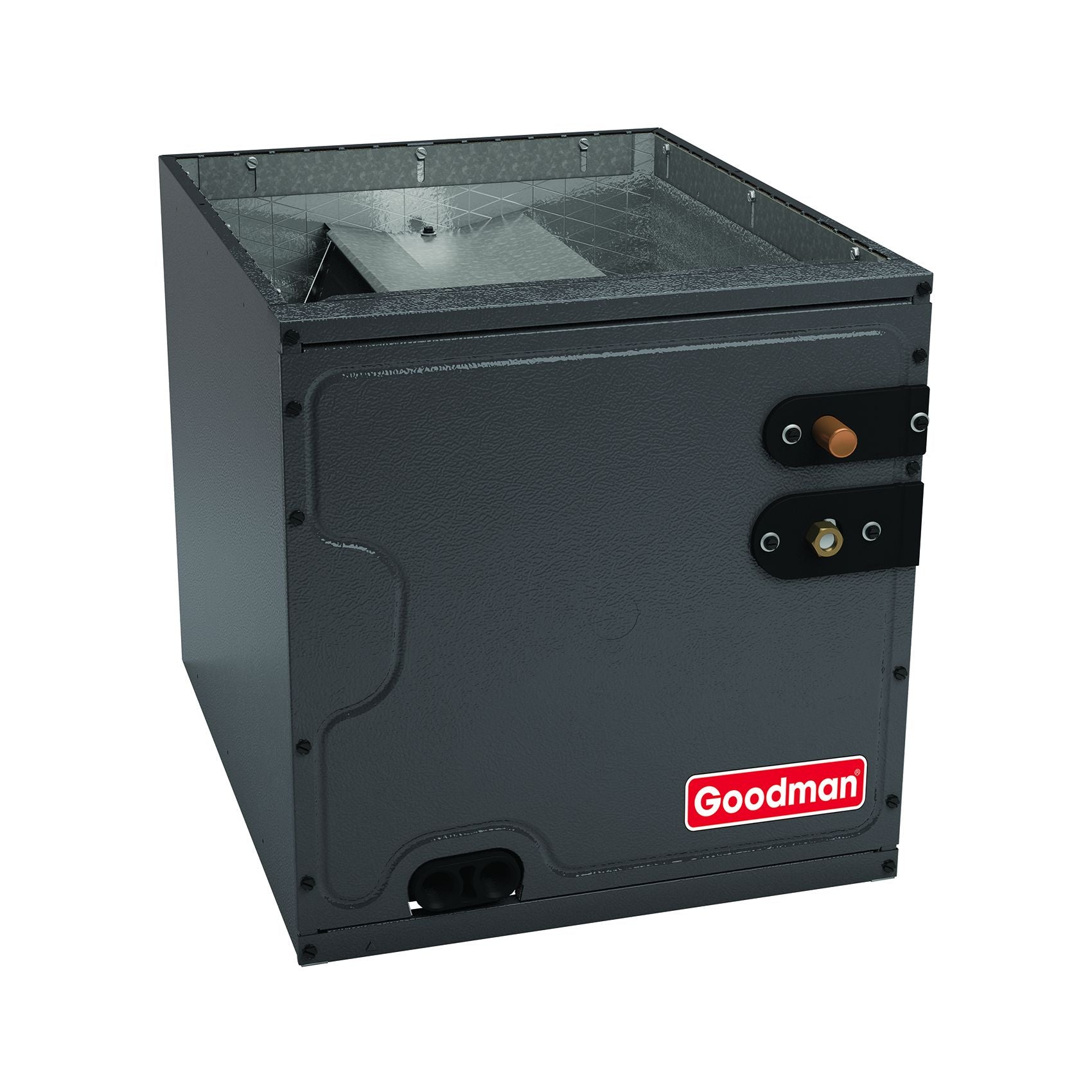

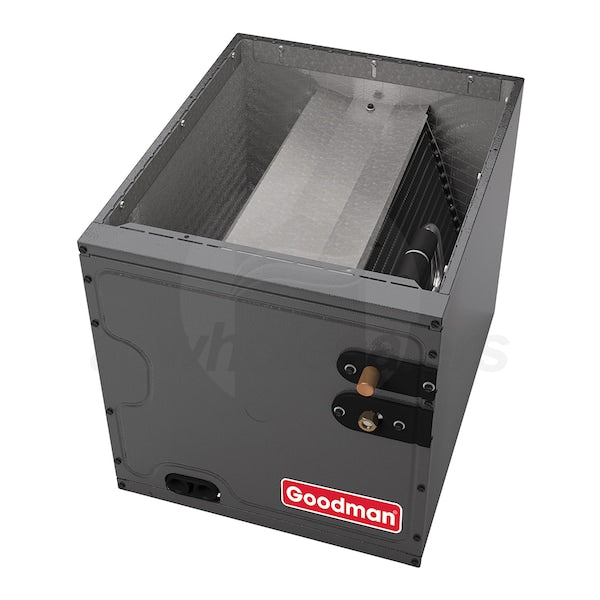

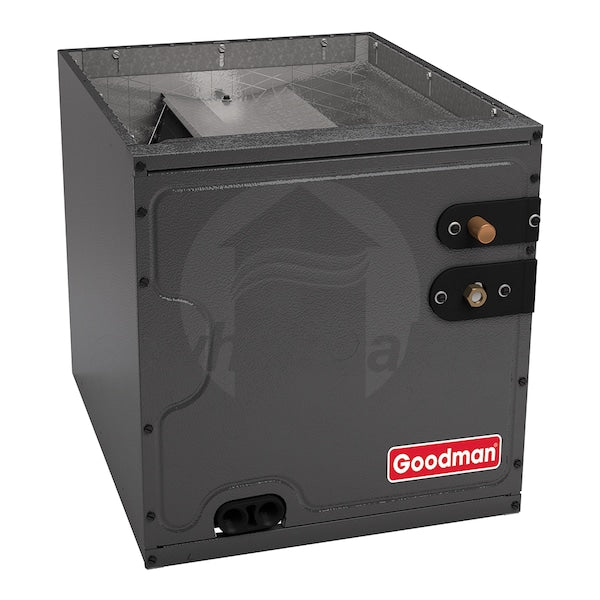

The Goodman CAPFA3022B3 is a cased A coil ideal for use in upflow or downflow applications with split system air conditioners and heat pumps. This evaporator coil is made from all-aluminum materials, enhancing heat transfer efficiency and ensuring durability. It includes a factory-installed TXV (thermostatic expansion valve) and is designed specifically for R-32 refrigerant. The unit is pressure tested and comes with a galvanized steel cabinet with foil-faced insulation to minimize condensation.

• All-aluminum evaporator coil construction.
• Includes factory-installed TXV for efficient refrigerant flow.
• Compatible with both upflow and downflow configurations.

Product Highlights

This coil is designed to work seamlessly with Goodman air conditioning systems. Its robust construction and efficient design make it suitable for various applications.

Product Information

Standard Information

• Brand: Goodman
• Manufacturer Part Number: CAPFA3022B3

Technical Specifications

• Product Line: CAPTA
• Product Category: Evaporator Coil
• Coil Type: A Coil
• Casing: Cased
• Configuration: Upflow/Downflow
• Cooling Capacity: 2.5 Tons
• Cooling BTU: 30000 BTU
• Refrigerant Type: R-32
• TXV Installed: Yes
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Cabinet Width: 17.5 inches
• Product Height: 22 inches
• Product Width: 17.5 inches
• Product Depth: 21 inches
• Product Weight: 25 lbs.
• Installation Orientation: Upflow/Downflow
• Unit Type: Indoor
• Certifications: AHRI, ETL, ISO
• Parts Warranty: 10 Limited Years
• Plenum Opening Width: 16.5 inches
