GOODMAN CAPFA2422B3 Goodman CAPTA2422B3 2-Ton Evaporator Coil R-32

Product Description

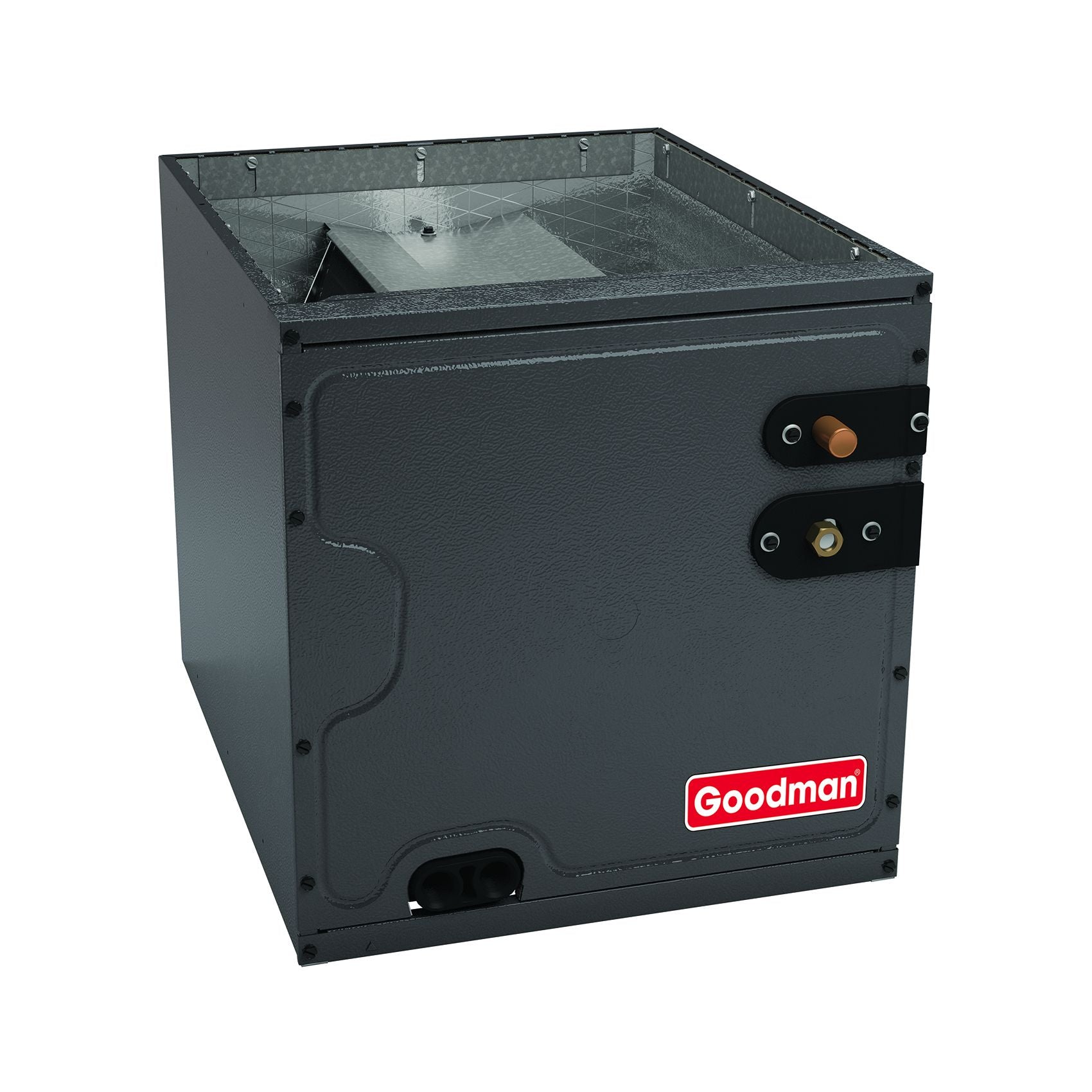

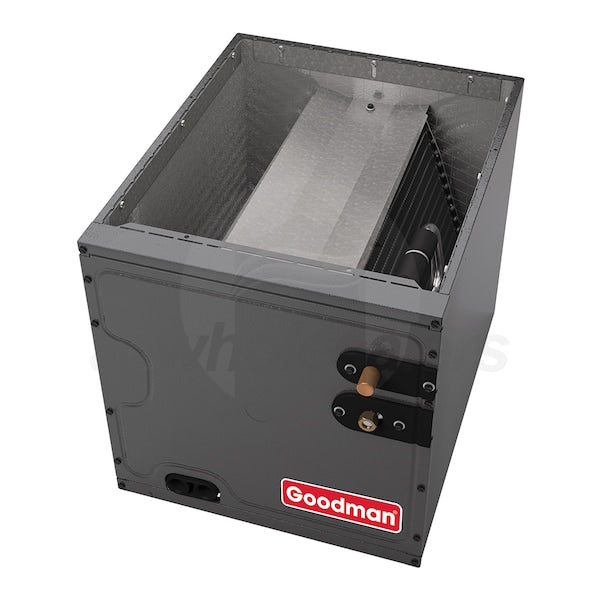

The Goodman CAPTA2422B3 is a two-ton evaporator coil suitable for split system air conditioners and heat pumps. This coil is made of aluminum and optimized for R-32 refrigerant, making it environmentally friendly and efficient. The design is adaptable for both upflow and downflow applications. The coil includes a factory-installed thermal expansion valve (TXV) to improve performance.

• Optimized for R-32 refrigerant
• Factory-installed thermal expansion valve (TXV)
• Suitable for upflow and downflow configurations

Product Highlights

This evaporator coil provides reliable cooling and efficient performance in various HVAC systems.

Product Information

Standard Information

• Brand: Goodman
• MPN: CAPFA2422B3

Technical Specifications

• Model Number: CAPTA2422B3
• Cooling Capacity: 24000 BTU
• Refrigerant Type: R-32
• Configuration: Upflow/Downflow
• TXV Installed: Yes
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Cabinet Width: 17.5 Inches
• Product Height: 22 Inches
• Product Depth: 21 Inches
• Product Weight: 25 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 10 Limited Years
• Voltage: 208, 230V
• Frequency: 60 Hz
• Amperage: 10.9A
• Recommended Breaker Size: 15A
• Material: Aluminum
