Product Description

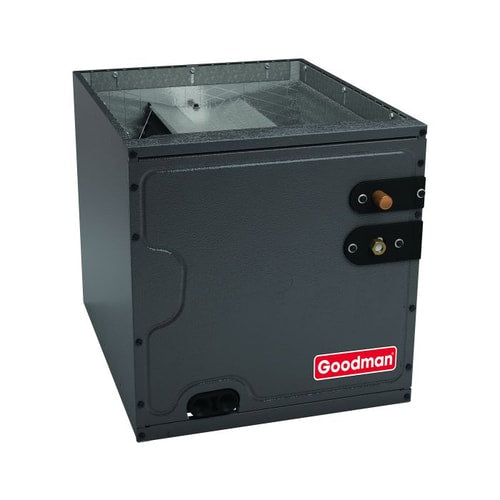

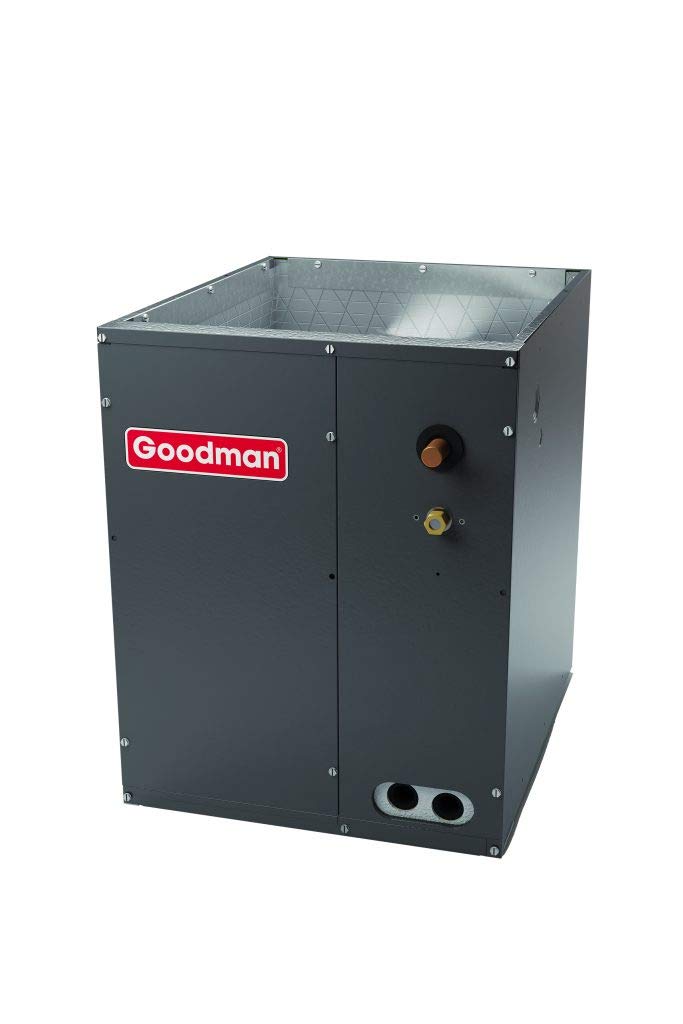

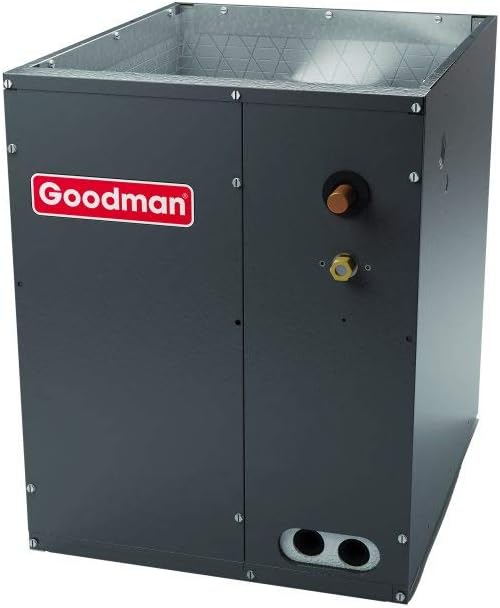

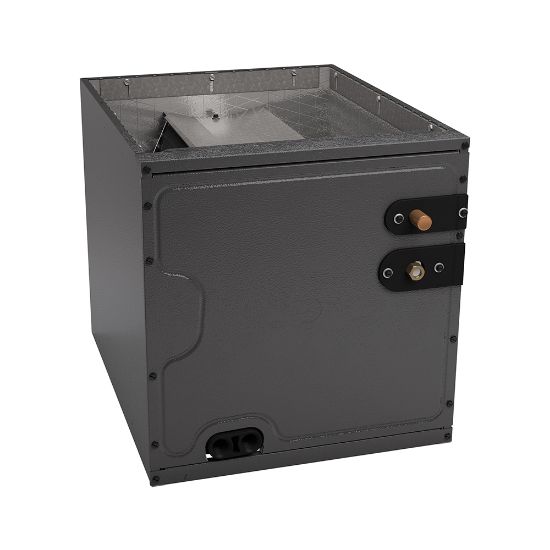

The Goodman CAPFA2418A6 is an indoor coil designed with accessibility, longevity, and value in mind. This cased A coil is suitable for upflow or downflow applications. Its all-aluminum construction and advanced design enhance durability and heat transfer efficiency. It is compatible with R-22 and R-410A refrigerants.
- Features a reliable all-aluminum design with sine fins and grooved tubes for efficient heat transfer.
- Protected by a galvanized, embossed, and insulated cabinet to prevent air leakage.
- Equipped with foil-faced insulation to inhibit condensate formation and a rust-resistant thermoplastic drain pan.
Product Highlights
The Goodman CAPFA2418A6 ensures efficient and durable performance with its robust design and compatibility with multiple refrigerants.
Product Information
Standard Information
-
Brand: GOODMAN
-
Manufacturer Part Number: CAPFA2418A6
-
Country of Origin: USA
Technical Specifications
-
Casing: Cased
-
Tonnage: 1.5
-
Cabinet Width: 14 Inches
-
Performance Capacity: 2.0 Tons
-
Cooling BTU: 24000
-
Product Depth: 21 Inches
-
Product Width: 14 Inches
-
Type: Evaporator Coil
-
ETL Listed: Yes
-
Product Height: 18 Inches
-
Style: A Coil
-
Product Category: Evaporator Coil
-
AHRI Certified: Yes
-
Product Line: CAPF
-
Liquid Connection Size: 3/8 Inch
-
Configuration: Upflow/Downflow
-
TXV Installed: No
-
Suction Connection Size: 3/4 Inch
-
Refrigerant Type: R-22/R-410A
-
Nominal Minimum Cooling Capacity: 24000 BTU
-
Model Info: CAPFA2418A6
-
Item Model Number: CAPFA2418A6
-
Part Number: CAPFA2418A6
-
Brand: GOODMAN
-
Depth: 21 in.
-
Height: 18 in.
-
Installation Type: Ducted Mount
-
Style Name: CAPFA AlumaFin7 Series
-
Application: Residential
-
Product Type: Evaporator Coils
-
Width: 14 in.
-
Refrigerant: R-410A
-
Case Included: Cased
-
Coating: Painted
-
Indoor/Outdoor: Indoor
-
Liquid Line (OD): 3/8 in.
-
Material: Aluminum
-
Suction Line (OD): 3/4 in.
-
Coil Type: Cased
-
Specifications - ANSI: Yes
-
BTU (btu/hr): 24000
-
Fitting Size 1: 3/4 in.
-
Fitting Sizes: 3/4 in.
-
Phase: Single Phase
-
Make: Goodman
-
Model code: CAPFA2418A6
-
Refrigerant Lines - Liquid/Suction: 3/8 / 3/4 inches
-
Evaporator Coil: 2 tonnage
