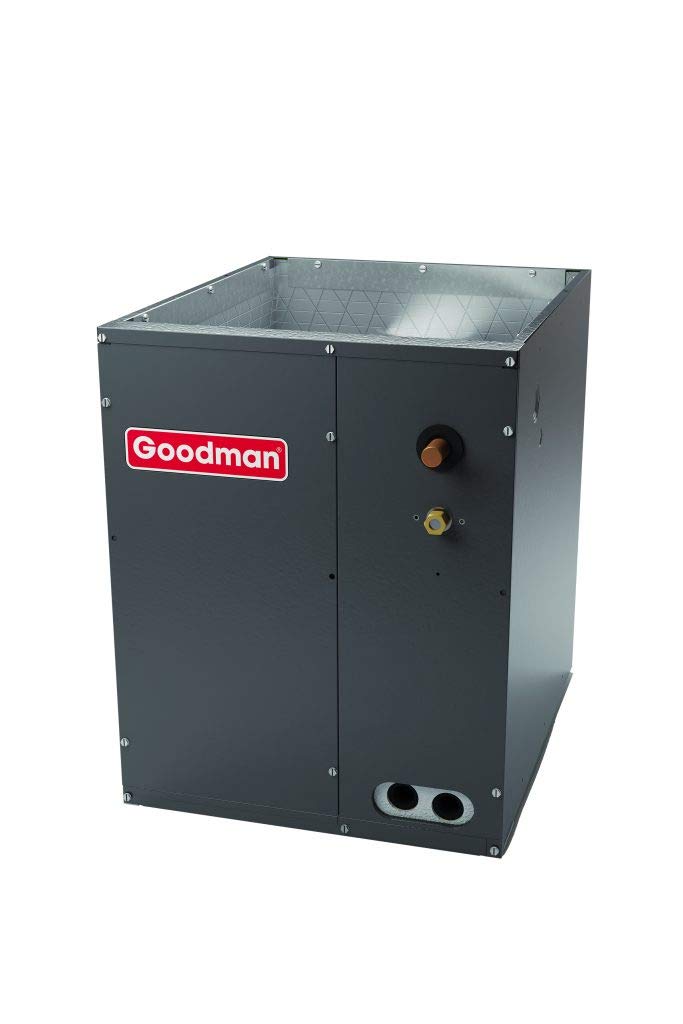

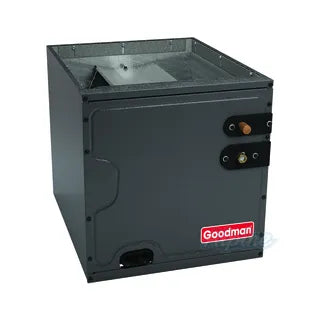

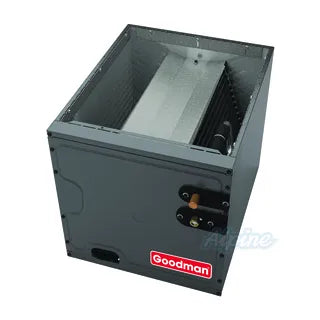

GOODMAN CAPFA2318B 2-Ton Cased Evaporator Coil

Product Description

The Goodman CAPFA2318B is a two-ton cased evaporator coil. It is designed for use with split system air conditioners and heat pumps. This coil can be installed in both upflow and downflow configurations. The construction features aluminum and a thermoplastic drain pan that prevents water retention. A single-piece access panel and a split-seam front allow for easy internal access.

• Compatible with R-410A refrigerant.
• Includes a thermoplastic drain pan to reduce water retention.
• Equipped with an orifice refrigerant metering device.

Product Highlights

This evaporator coil is optimized for effective cooling and heating performance in residential systems. It supports R-410A refrigerant to ensure efficient operations.

Product Information

Standard Information

• Product Type: Evaporator Coil
• Configuration: Downflow / Upflow

Technical Specifications

• Tonnage: 2 Ton(s)
• Primary Refrigerant: R-410A
• Refrigerant Metering Device: Orifice
• Number of Rows: 3
• Liquid Line Size (OD): 3/8 inches
• Suction Line Size (OD): 3/4 inches
• Cabinet/Chassis Size: B

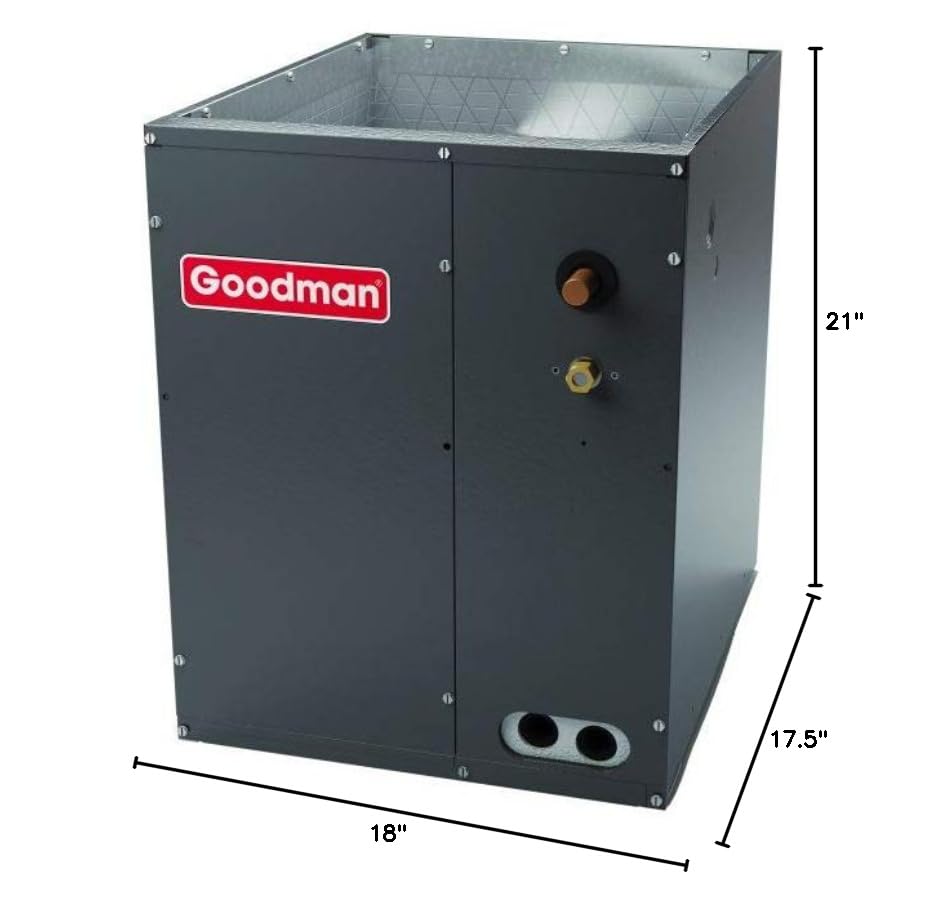

• Product Dimensions: 17.5 x 21 x 18 inches
• Product Weight: 38 lbs
