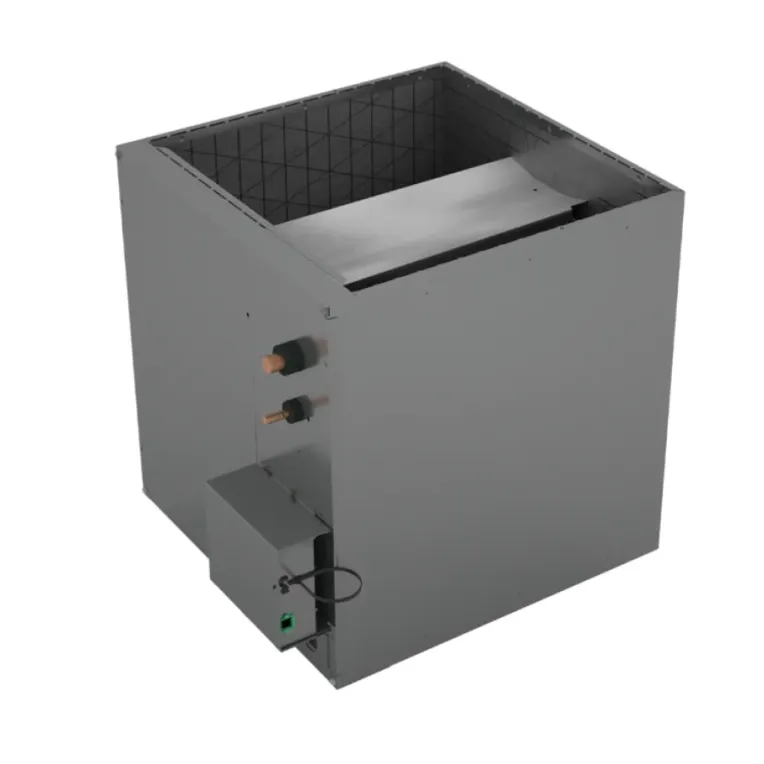

GOODMAN CAPEA6030D4 Evaporator Coil - Cased Upflow/Downflow with EEV

Product Description

The Goodman CAPEA6030D4 is a cased evaporator coil suitable for both upflow and downflow air systems. This unit features an all-aluminum construction specially designed for R-410A refrigerant, ensuring efficient operation. The CAPEA6030D4 includes a factory-installed electronic expansion valve (EEV) for precise refrigerant control. With a cabinet depth of twenty-one inches and a split seam front, it allows for easy access during installation and maintenance.

• Optimized for R-410A refrigerant
• Includes a rust-resistant, thermoplastic drain pan
• Equipped with a factory-installed EEV

Product Highlights

This evaporator coil works effectively in various configurations, making it versatile for different installation needs.

Product Information

Standard Information

• Manufacturer: Goodman
• Model: CAPEA6030D4

Technical Specifications

• Product Height: 30 inches
• Product Width: 24.5 inches
• Product Length: 21.125 inches
• Weight: 76 pounds
• Air Flow Direction: Downflow, Upflow
• Cooling Capacity: 5 Ton
• Cooling Capacity (BTU): 60000 BTU/h
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Refrigerant: R-410A
• SEER: 17
• Casing: Cased
• Material: Aluminum
• Refrigerant Control: EEV
