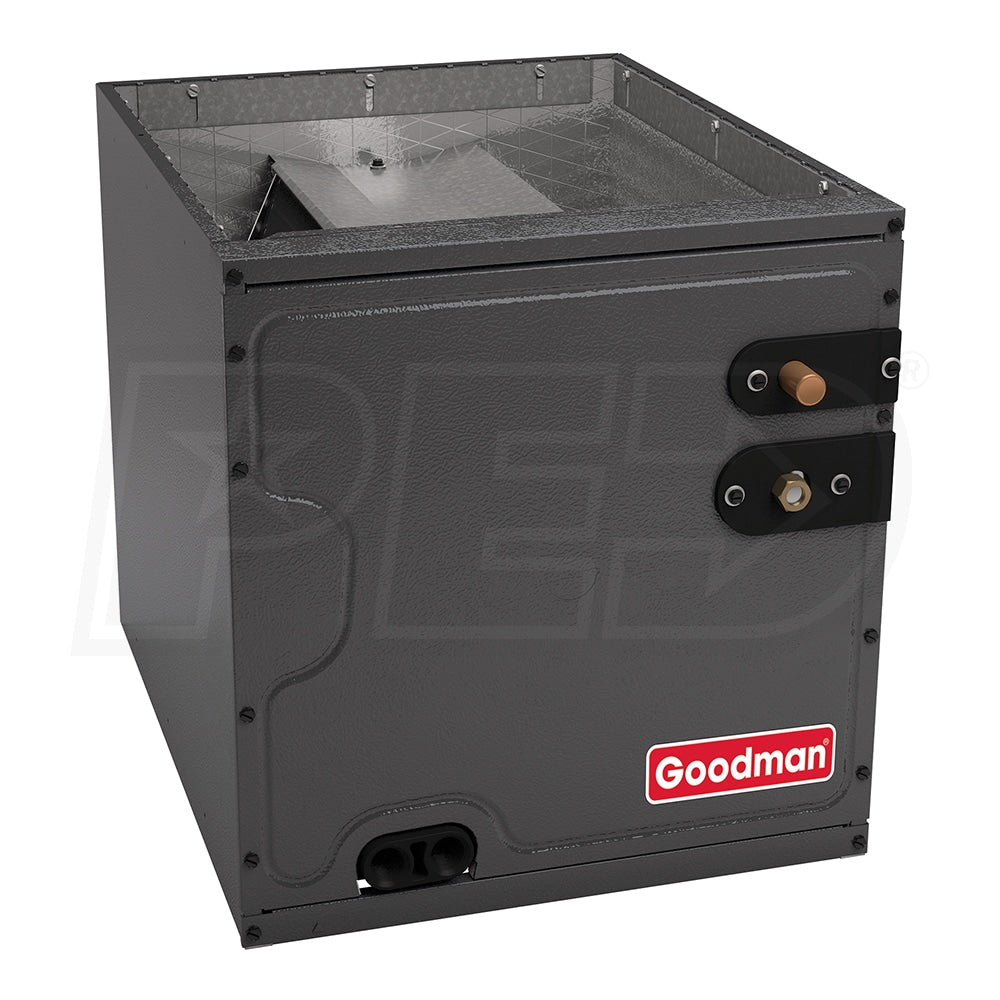

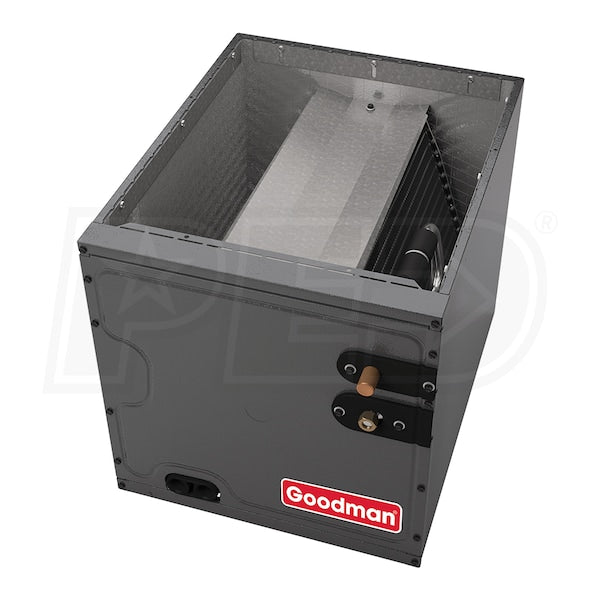

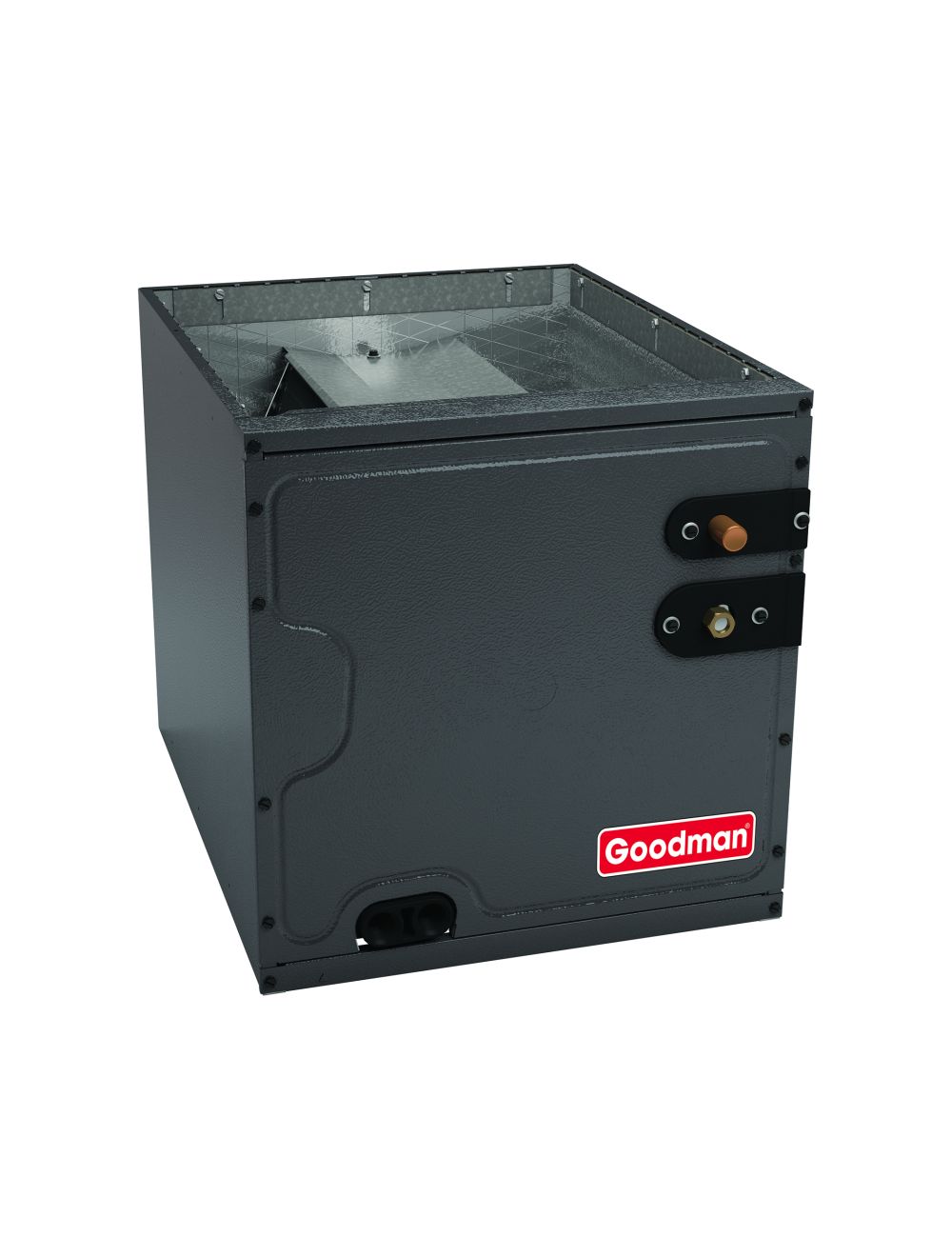

Goodman CAPEA6030C3 5-Ton Evaporator Coil

Product Description

The Goodman CAPEA6030C3 is a 5-ton evaporator coil suitable for both split system air conditioners and heat pumps. This A-coil features a robust all-aluminum construction and is engineered for upflow and downflow installations. It includes a factory-installed thermal expansion valve (TXV) and is compatible with R-32 refrigerant. The thermoplastic drain pan helps manage condensation effectively, alongside foil-faced insulation.

• All-aluminum evaporator coil design
• Factory-installed thermal expansion valve (TXV)
• Optimized for R-32 refrigerant use

Product Highlights

This evaporator coil is a crucial component for efficient cooling in HVAC systems.

Product Information

Standard Information

• Model Number: CAPTA6030C3
• Product Type: Evaporator Coil

Technical Specifications

• Tonnage: 5.0 Tons
• Cooling Capacity: 60000 BTU
• Refrigerant Type: R-32
• Configuration: Upflow/Downflow
• Coil Type: A Coil
• Casing: Cased
• TXV Installed: Yes
• Suction Line Size: 7/8 Inches
• Liquid Line Size: 3/8 Inches
• Cabinet Width: 21 Inches
• Width: 21 Inches
• Depth: 21 Inches
• Height: 30 Inches
• Product Weight: 51 Pounds
• Shipping Weight: 66 Pounds
• Certifications: AHRI, ETL, ISO
• Warranty: 10 Year Limited Parts
• Airflow Orientation: Downflow, Upflow
• Voltage: 208, 230V
• Electrical Phases: 1
• Frequency: 60 Hz
• Amperage: 31.1A
• SEER2: 13.4
