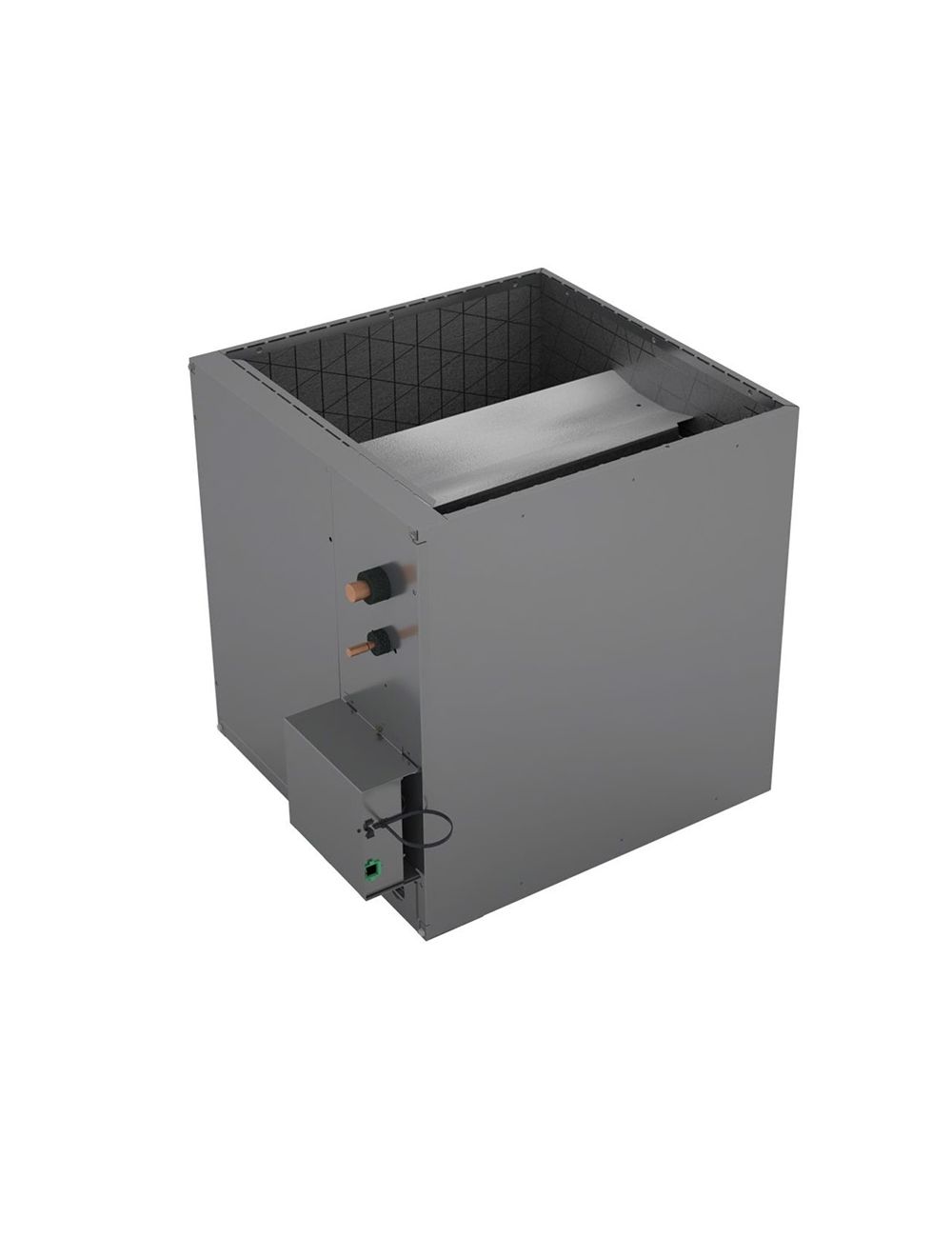

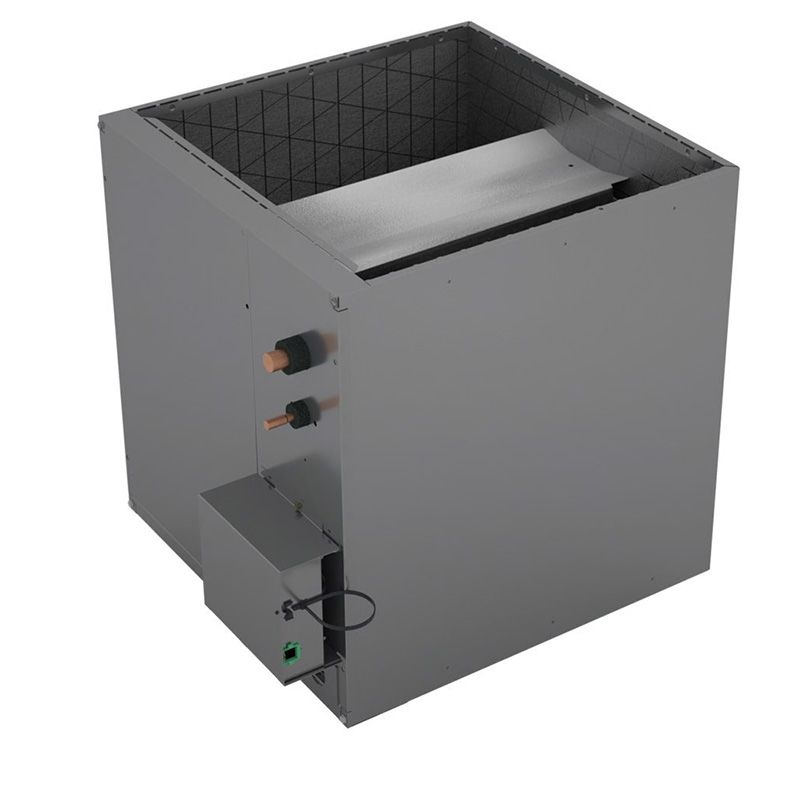

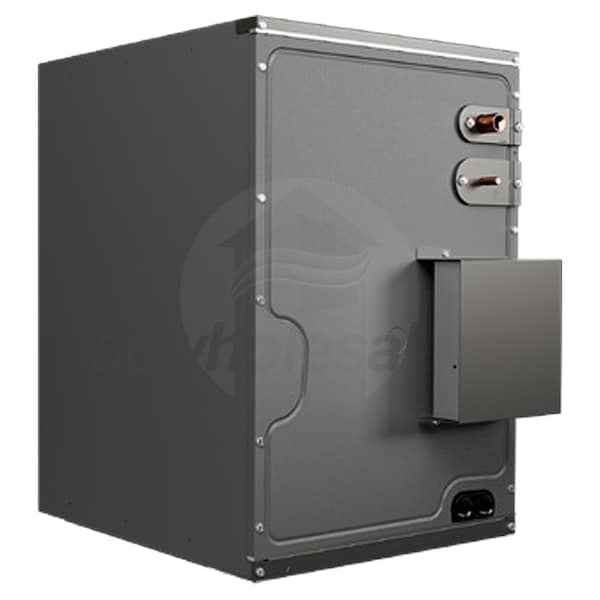

Goodman CAPEA3022C3 Evaporator Coil 2.5 Ton R-32 21 Cased

Product Description

The Goodman CAPEA3022C3 is an evaporator coil for upflow and downflow applications. It is compatible with R-32 refrigerant and features durable all-aluminum construction. The device includes a factory-installed electronic expansion valve (EEV) which aids in refrigerant control and performance.

• All-aluminum construction for enhanced heat transfer.
• Includes a factory-installed electronic expansion valve (EEV).
• Compatible with R-32 refrigerant.

Product Highlights

This evaporator coil is designed to optimize cooling efficiency in residential systems.

Product Information

Standard Information

• Brand: GOODMAN
• MPN: CAPEA3022C3

Technical Specifications

• Product Type: Evaporator Coil
• Product Line: CAPEA
• Refrigerant Type: R-32
• Capacity: 2.5 Tons
• Cooling BTU: 30000 BTU
• Configuration: Upflow/Downflow
• Casing: Cased
• Coil Type: A Coil
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Cabinet Width: 21 Inches
• Product Width: 21 Inches
• Product Depth: 21 Inches
• Product Height: 22 Inches
• Weight: 36 Pounds
• AHRI Certified: Yes
• ETL Listed: Yes
• ISO Certified: Yes
• Parts Warranty: 12 Limited Years
• Model Efficiency: 17 SEER
