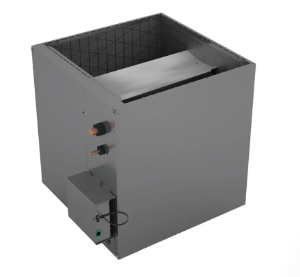

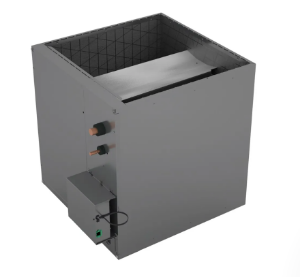

Goodman CAPE4860D4 Evaporator Coil, 3-4 Tons, Upflow/Downflow

Product Description

The Goodman CAPE4860D4 Evaporator Coil is designed for two to four ton applications. This cased coil works for both upflow and downflow configurations. It is optimized for use with R-410A refrigerant and includes an electronic expansion valve (EEV). The product features a width of twenty-four and one half inches and a height of thirty inches.

• Factory-installed electronic expansion valve for precise refrigerant control
• Compatible with communicating equipment
• AHRI certified and ETL listed

Product Highlights

The Goodman CAPE4860D4 is effective in cooling and heat pump applications, and it provides various features like fault recall for recent issues and an insulated casing to reduce condensation.

Product Information

Standard Information

• Manufacturer: Goodman Manufacturing
• MPN: CAPE4860D4

Technical Specifications

• Nominal Capacity: 3-1/2 to 4 ton
• Refrigerant Type: R-410A
• Coil Configuration: Cased Upflow/Downflow
• Liquid Line Size: 3/8 Inch
• Suction Line Size: 7/8 Inch
• Tubing/Fin Construction: Rifled aluminum tubing, enhanced aluminum fins
• Expansion Device - Refrigerant Control: Electronic Expansion Valve - EEV
• Weight: 73 lbs
