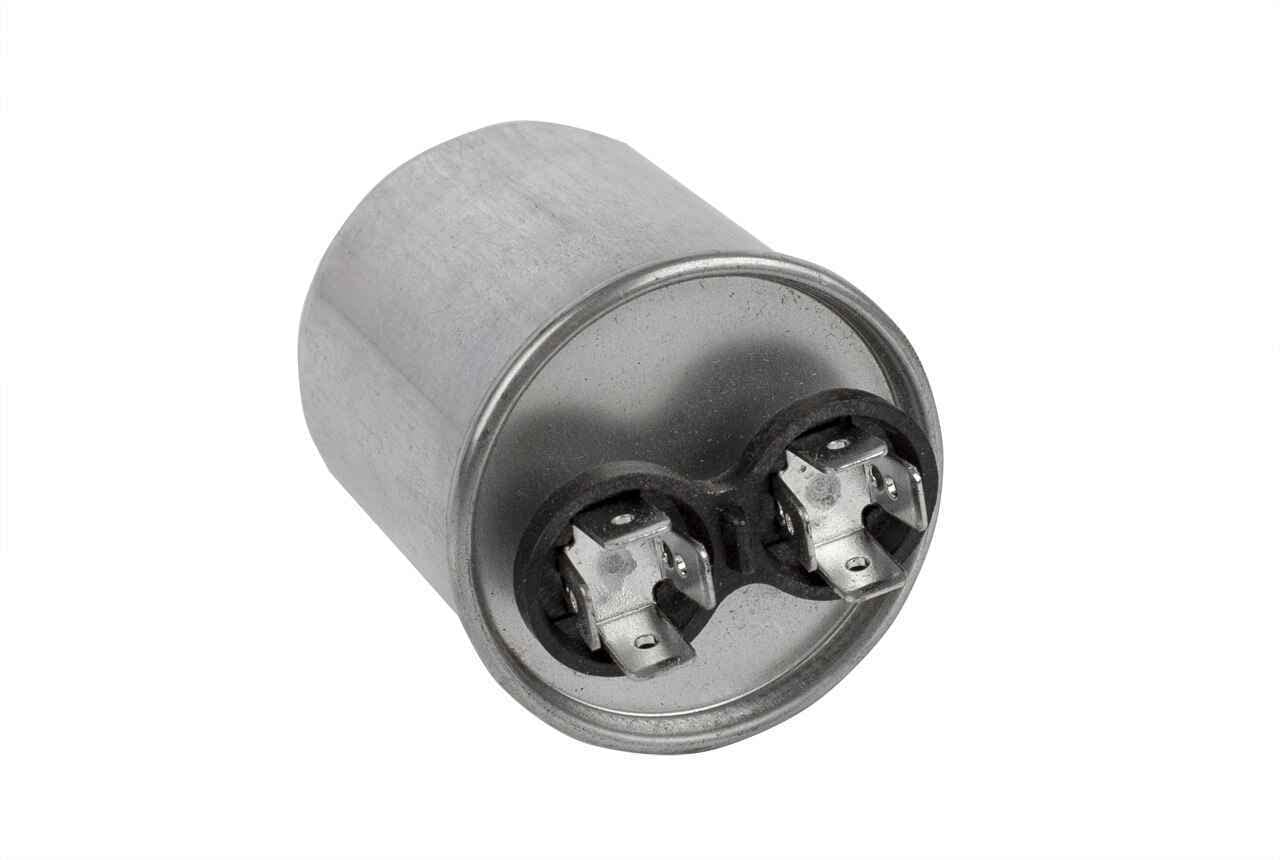

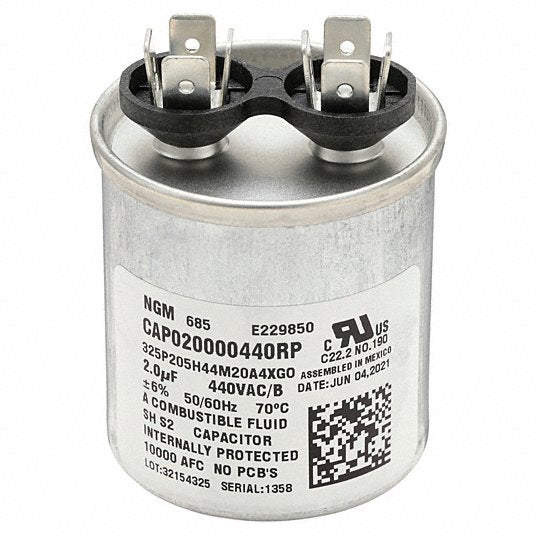

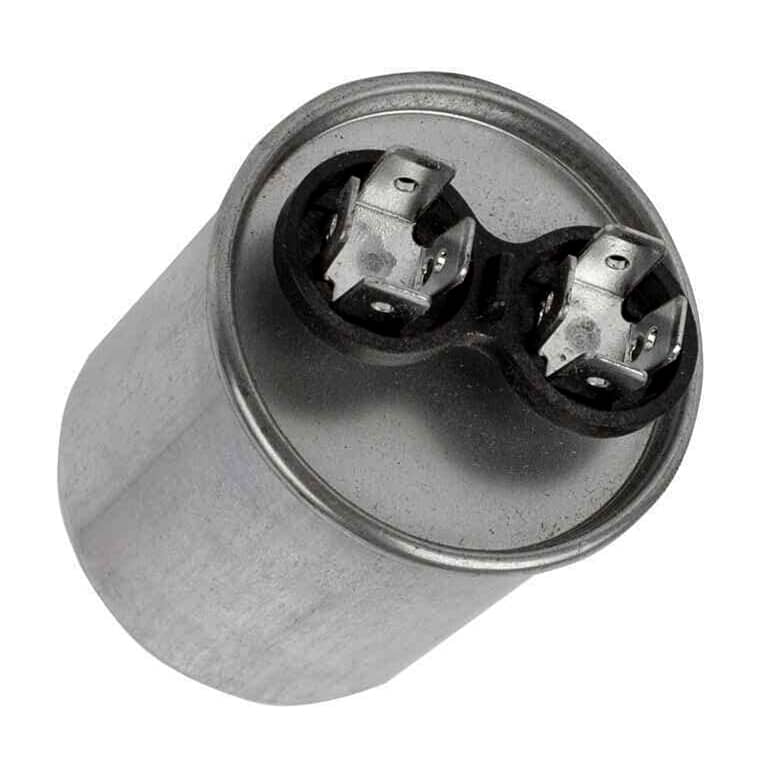

Goodman cap020000440rp Run Capacitor 2 Mfd 440V Round

Product Description

The GOODMAN cap020000440rp is a round run capacitor rated at 2 microfarads (MFD) and 440 volts, designed for single-capacitor motor-run applications in HVAC equipment. Run capacitors maintain a continuous phase shift in the start winding of single-phase motors, improving run efficiency and torque stability. This unit operates at both 50 and 60 Hz, making it suitable for standard North American systems as well as equipment rated for international power frequencies. The aluminum round case provides a compact, durable housing that fits standard capacitor mounting brackets found in most residential and light commercial air handlers, condensing units, and heat pumps.

This capacitor is used in single-phase PSC (permanent split capacitor) motor circuits, typically found in condenser fan motors and blower motors within residential and light commercial HVAC systems. It is appropriate for any application requiring a 2 MFD, 440-volt round run capacitor operating at 50 or 60 Hz. Technicians replacing failed or weakened run capacitors during routine maintenance or no-cool calls will find this a direct OEM-style replacement.

Key Features

• 2 MFD capacitance rating for single-phase PSC motor circuits
• 440-volt rating provides compatibility across a wide range of HVAC motor applications
• Dual frequency rated at 50/60 Hz
• Round aluminum case fits standard capacitor mounting clips and brackets
• OEM-style replacement for Goodman-branded systems

Compatibility

Designed as an OEM-style replacement run capacitor for residential and light commercial HVAC systems requiring a 2 MFD, 440-volt round capacitor.

Installation Notes

Run capacitors must be installed by a qualified HVAC technician. Always disconnect and lock out power to the unit before handling capacitors, and discharge the capacitor fully before removal, as run capacitors can retain a dangerous charge even after power is removed. Match MFD rating and voltage rating exactly to the original component; voltage rating may be equal to or greater than the original, but MFD must match the motor nameplate specification. Follow all applicable NEC requirements and local codes when servicing electrical components.

Technical Specifications

• Capacitor Type: Run Capacitor
• MFD Rating: 2 MFD
• Voltage Rating: 440 volts
• Power Frequency: 50/60 Hz
• Case Type: Round
• Material: Aluminum
• Country of Origin: Mexico

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: cap020000440rp
