Product Description

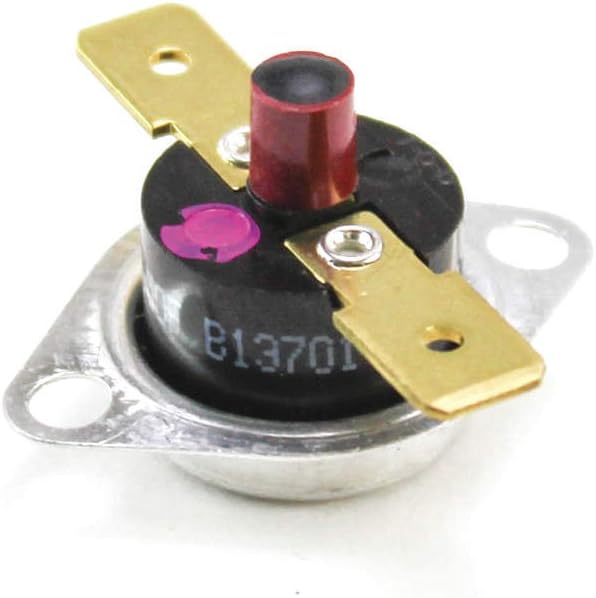

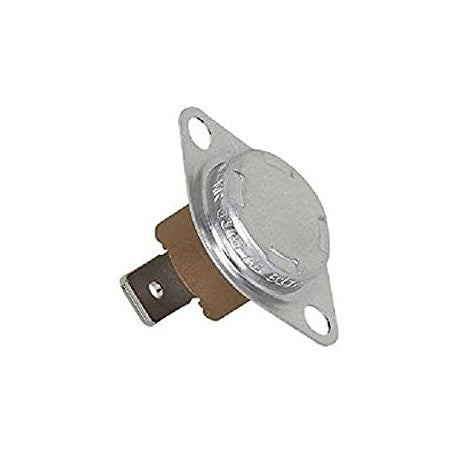

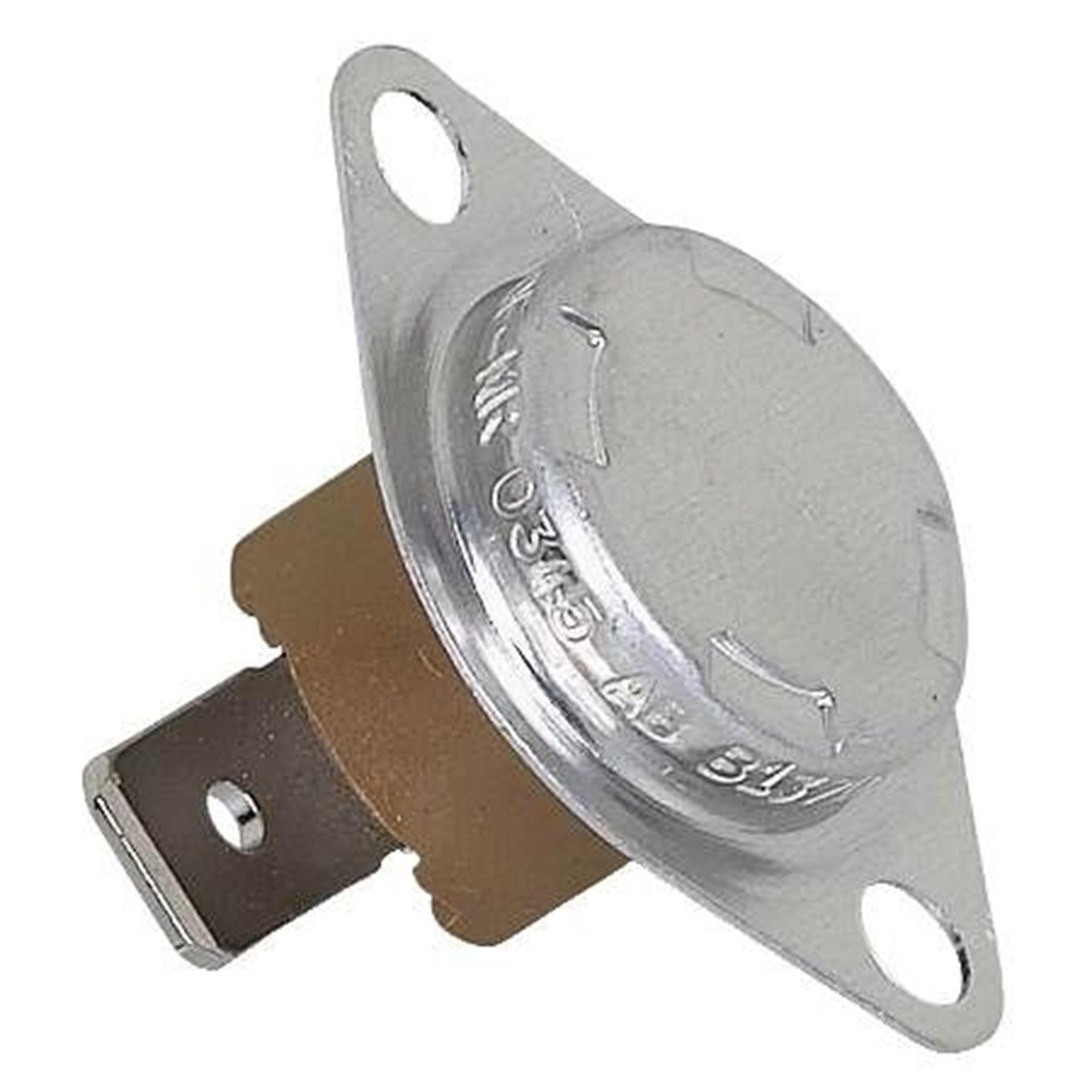

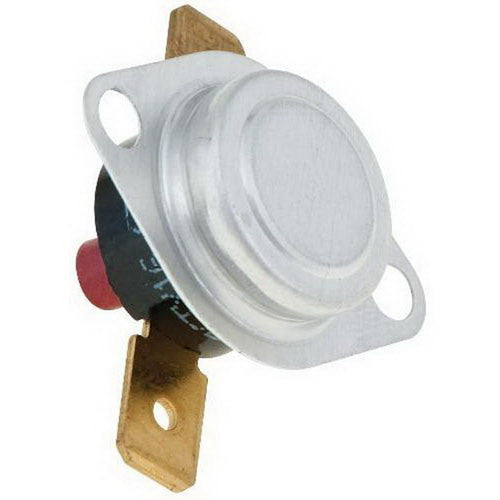

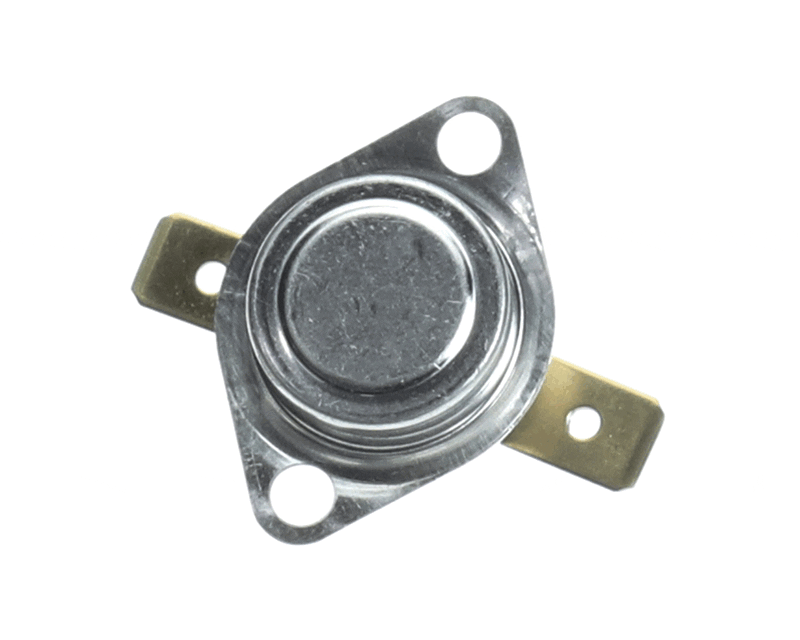

The Goodman B1370154 Rollout Switch stops the HVAC unit when a dangerous flame rollout is sensed to avoid fires and keep operations safe. This switch is designed for use with Goodman & Amana equipment and fits popular CL18-1DB, CKLB36-1H, CKQ36-1A units and more. It has a maximum operating temperature of 350 Degrees F.
- Stops the HVAC unit when a dangerous flame rollout is sensed
- Compatible with Series Universal
- Contact Form SPST
Product Highlights
The Goodman B1370154 Rollout Switch is a limit switch with a maximum operating temperature of 350 Degrees F. It is compatible with universal series and has a SPST contact form.
Product Information
Standard Information
-
Brand: GOODMAN
-
Manufacturer Part Number: B1370154
-
Country of Origin: Costa Rica
Technical Specifications
-
Manufacturer: Goodman
-
Model / MPN: B1370154
-
Temperature Rating: 350 deg F
-
For Use With: PGB048100-3B and PGJ048075-1 Rooftop Unit Models
-
Degrees: 350
-
Product Type: Rollout Switch
-
Operation Mode: manual
-
Contact Type: Normally Open
-
Connector Type: Screw Terminals
-
Switch Type: Rollout
-
Terminal: Screw
-
Material: Metal
-
Mounting Type: Surface Mount
-
Actuator Type: Hinge Lever
-
International Protection Rating: IP54
-
Number of Positions: 1
-
Upper Temperature Rating: 350 Degrees Fahrenheit
-
Common Equipment Type(s): Air Conditioner Parts
-
Length: 1.05 in / 2.67 cm
-
Width: 0.9 in / 2.29 cm
-
Height: 0.7 in / 1.78 cm
-
Power Source: N/A
-
Voltage: N/A
-
Features: Limit Switch, Compatible with Series Universal, Contact Form SPST, Maximum Operating Temperature 350 Degrees F, Product Type Limit Switch
-
Country of Origin: Costa Rica
