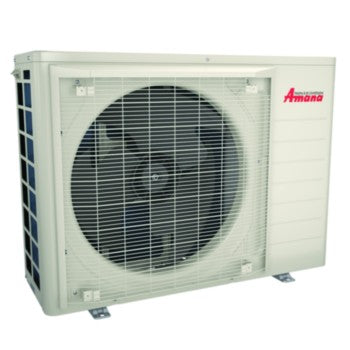

Goodman azv7sa2410 2 Ton 17.5 SEER2 Inverter Heat Pump

Product Description

The GOODMAN azv7sa2410 is a 2-ton, single-phase inverter-driven outdoor split heat pump designed for ducted residential and light commercial applications. Rated at 17.5 SEER2 and 8.8 HSPF2, it uses R-32 refrigerant and delivers 23,200 BTU/h of both rated cooling and heating capacity. The side-discharge cabinet operates across a wide ambient range — cooling from 0 degrees F to 115 degrees F and heating from -10 degrees F to 70 degrees F — making it suitable for most North American climate zones. Licensed HVAC technicians install and commission this unit as the outdoor section of a matched split system.

The azv7sa2410 is built for ducted split-system installations where high-efficiency inverter performance is required. Its non-communicating design means it pairs with standard matched indoor air handlers without requiring a proprietary communicating thermostat or control link. DOE Regional Compliance is listed as All regions, and the unit carries ENERGY STAR certification. The side-discharge configuration suits installations where overhead or rooftop airflow clearance is restricted. Compatible accessory and kit references noted in manufacturer data include 130-DK-006, DACA-WB-3, DQ-P-16-100, DSEN-HAQA, KEH3P573598, KPS00501, KPS00502, KPS00503, KPS00504, and KPW5G112.

Key Features

• Inverter-driven compressor delivers variable-capacity operation for improved efficiency and comfort
• 17.5 SEER2 / 8.8 HSPF2 / 11 EER2 efficiency ratings under HSVTC test conditions
• R-32 refrigerant with factory charge of 76 oz and pre-charged line set support up to 15 feet
• Wide operating range: cooling down to 0 degrees F ambient, heating down to -10 degrees F ambient
• Side-discharge cabinet at 36.625 inches wide x 27.375 inches tall x 13.75 inches deep, 132 pounds
• Non-communicating control interface compatible with standard thermostat wiring
• ENERGY STAR certified and ISO certified; compliant in all DOE regions

Compatibility

The azv7sa2410 is the outdoor unit of the Amana AZV7S series split heat pump system. It is designed to be paired with a compatible matched indoor air handler in a ducted split-system configuration. Manufacturer-referenced accessory kits include 130-DK-006, DACA-WB-3, DQ-P-16-100, DSEN-HAQA, KEH3P573598, KPS00501, KPS00502, KPS00503, KPS00504, and KPW5G112. No specific indoor unit model numbers were provided in the available data; consult the manufacturer matchup guide to confirm indoor unit pairing before ordering.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification, as R-32 is a mildly flammable (A2L) refrigerant requiring specific handling procedures and approved tools. Disconnect and lock out all electrical power before making any electrical or refrigerant connections, and follow local mechanical and electrical codes including NEC requirements for minimum circuit ampacity and overcurrent protection sizing. Liquid line size is 3/8 inch and suction line size is 7/8 inch; maximum line set length is 100 feet with a maximum vertical separation of 90 feet. Verify proper unit elevation, clearances, and pad or mounting surface levelness per the installation manual before startup.

Technical Specifications

• Cooling Capacity (Rated): 23,200 BTU/h
• Heating Capacity (Rated): 23,200 BTU/h
• Heating Capacity (Nominal): 24,000 BTU/h
• Tonnage: 2 tons
• SEER2 (HSVTC): 19
• Model Efficiency: 17.5 SEER2
• HSPF2 (HSVTC): 8.8
• EER2 (HSVTC): 11
• COP47 (HSVTC): 3.3
• Power Voltage: 208/230 volts
• Power Phase: 1-phase
• Power Frequency: 60 Hz
• Rated Load Amps: 17.6 A
• Minimum Circuit Amps: 22.4 A
• Max Overcurrent Protection: 25 A
• Compressor Type: Inverter
• Refrigerant Type: R-32
• Factory Refrigerant Charge: 76 oz
• Pre-Charged Line Set Length: 15 feet
• Max Line Set Length: 100 feet
• Max Vertical Line Set: 90 feet
• Liquid Line Size: 3/8 inch
• Suction Valve Size (O.D.): 7/8 inch
• Gas Pipe Size: 7/8 inch
• Cooling Operation Range: 0 degrees F to 115 degrees F
• Heating Operation Range: -10 degrees F to 70 degrees F
• Sound Pressure (High, Cooling): 66 dBA
• Unit Width: 36.625 inches
• Unit Height: 27.375 inches
• Unit Depth: 13.75 inches
• Unit Weight: 132 pounds
• Installation Configuration: Side Discharge
• Installation Type: Ducted
• Communication Feature: Non-Communicating
• DOE Regional Compliance: All
• ENERGY STAR Certified: Yes
• ISO Certified: Yes
• Motor Speed Type: Multi-Speed
• Residential Parts Warranty (Registered): 10 years all parts; 10 years compressor unit replacement
• Residential Parts Warranty (Standard): 5 years all parts
• Commercial Parts Warranty: 5 years all parts
• Multi-Family Parts Warranty (Registered): 10 years all parts
• Country of Origin: Mexico

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: azv7sa2410
