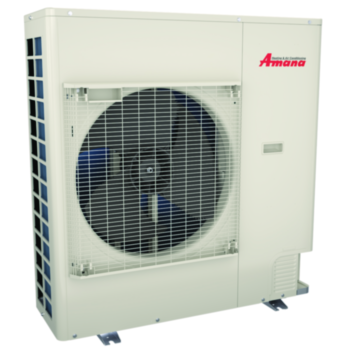

Goodman axv6ss4210 3.5 Ton 16.2 SEER2 Inverter Split Ac R-32

Product Description

The Goodman axv6ss4210 is a 3.5-ton, 16.2 SEER2 inverter-driven outdoor split air conditioner designed for residential and multi-family cooling applications. Part of the Amana AXV6SS series, this side-discharge unit operates on R-32 refrigerant and delivers 41,000 BTU/h of rated cooling capacity. The variable-speed inverter compressor allows the unit to modulate output to match load, reducing short-cycling and improving runtime efficiency. Rated at 208/230 volts, single-phase, 60 Hz with a minimum circuit ampacity of 31.8 amps, this unit is installed by licensed HVAC contractors and is compatible with the Amana Brand smart thermostat for communicating-system configurations.

The axv6ss4210 is suited for residential and multi-family installations in both Southeast and North DOE regional compliance zones. The side-discharge airflow pattern fits installations where top-discharge clearances are restricted. Operating across a wide ambient range of 0 degrees F to 115 degrees F, this unit handles extreme seasonal conditions without lockout. The unit ships factory pre-charged with 100 oz of R-32 refrigerant for a standard 15-foot line set, with maximum line set lengths of 100 feet horizontal and 90 feet vertical. Compatible components referenced by the manufacturer include product references 130-DK-008, DACA-WB-3, and KPW5G112.

Key Features

• Inverter-driven variable-speed compressor for modulating capacity and reduced energy use
• 16.2 SEER2 and EER2 of 9 meet DOE efficiency standards for Southeast and North regions
• R-32 refrigerant with factory pre-charge of 100 oz for a 15-foot line set
• Side-discharge configuration for installations with restricted overhead clearance
• Communication-ready for use with Amana Brand smart thermostat systems
• Wide ambient operating range from 0 degrees F to 115 degrees F
• Produced in the United States

Compatibility

Designed for use within the Amana AXV6SS series split-system platform. Manufacturer-referenced compatible components include 130-DK-008, DACA-WB-3, and KPW5G112. Communication feature requires Amana Brand smart thermostat. Verify indoor unit compatibility and refrigerant circuit design before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding EPA Section 608 certification for R-32 refrigerant handling. Disconnect and lock out all electrical power before making any electrical or refrigerant connections. Maximum overcurrent protection is 35 amps; verify that the disconnect and branch-circuit breaker are sized accordingly per NEC requirements. Do not exceed the manufacturer-specified maximum line set lengths, and confirm adequate clearances for the side-discharge airflow path before mounting the unit.

Technical Specifications

• Cooling Capacity (Rated): 41,000 BTU/h
• Tonnage: 3.5 tons
• SEER2: 16.2
• SEER2 (HSVTC): 17
• EER (HSVTC): 9
• EER2 (HSVTC): 9
• Voltage: 208/230 volts
• Phase: 1 Ph
• Power Frequency: 60 Hz
• Minimum Circuit Amps: 31.8 amps
• Max Overcurrent Protection: 35 amps
• Fan/Compressor Drive Input: 25.4 amps
• Compressor Type: Inverter
• Motor Speed Type: Multi-Speed
• Refrigerant Type: R-32
• Factory Refrigerant Charge: 100 oz
• Pre-Charged Line Set Length: 15 feet
• Max Line Set Length (Horizontal): 100 feet
• Max Line Set Length (Vertical): 90 feet
• Liquid Line Size: 3/8 inches
• Suction Line Size (O.D.): 7/8 inches
• Gas Pipe Size: 7/8 inches
• Installation Configuration: Side Discharge
• Unit Height: 39 inches
• Unit Width: 37 inches
• Unit Depth: 12.625 inches
• Unit Weight: 163 pounds
• Sound Pressure (High, Cooling): 70 dBA
• Cooling Operation Range (Min): 0 degrees F
• Cooling Operation Range (Max): 115 degrees F
• DOE Regional Compliance: Southeast and North
• Communication Feature: Yes, Amana Brand smart thermostat
• Residential Parts Warranty (Registered): 10 years all parts; 10 years compressor
• Residential Unit Replacement Warranty (Registered): 10 years compressor
• Multi-Family Parts Warranty (Registered): 10 years all parts
• Commercial Parts Warranty (Standard): 5 years all parts
• Country of Origin: United States

Standard Information

• Brand: Goodman
• Manufacturer Part Number: axv6ss4210
