Goodman axv6ss3010 2.5 Ton 16.2 SEER2 Inverter Ac R-32

Product Description

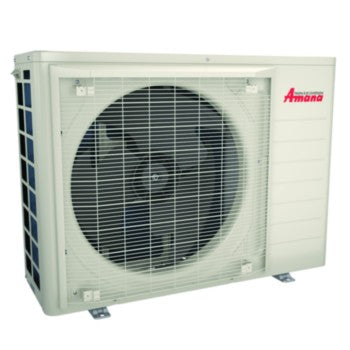

The GOODMAN axv6ss3010 is a 2.5-ton, single-phase outdoor condensing unit from the Amana AXV6SS series, designed for split-system residential and light-commercial cooling applications. It delivers a rated cooling capacity of 28,400 BTU/h at a 16.2 SEER2 efficiency rating, with an EER2 of 10. The unit runs on an inverter-driven compressor with multi-speed motor operation, allowing variable-capacity output rather than single-stage on/off cycling. Refrigerant is R-32. It operates on 208/230 volts, 60 Hz, single phase and features a side-discharge airflow configuration. Licensed HVAC technicians handle installation and commissioning.

This outdoor unit is suited for residential and multi-family cooling systems in both Southeast and North DOE compliance regions. The side-discharge cabinet is sized at 27.375 inches tall, 36.625 inches wide, and 13.75 inches deep, making it compatible with space-constrained pad or bracket installations. The unit supports a maximum line set length of 100 feet and a maximum vertical rise of 90 feet. Communication capability is included and is designed to work with the Amana Brand smart thermostat. The operating range spans 0 degrees F to 115 degrees F ambient dry-bulb, covering a wide range of climate conditions.

Key Features

• Inverter-driven compressor with multi-speed motor for variable-capacity, low-sound operation at 66 dBA (high cooling)
• 16.2 SEER2 rated efficiency; 17.5 SEER2 (HSVTC) and EER2 of 10
• R-32 refrigerant with factory charge of 76 oz and 15-foot pre-charged line length
• Side-discharge cabinet for installations where top-discharge clearance is restricted
• Built-in communication feature compatible with Amana Brand smart thermostat
• DOE regional compliance for both Southeast and North regions
• Registered residential warranty: 10 years parts and 10 years unit replacement on compressor; 10 years all parts

Compatibility

Part of the Amana AXV6SS series. Referenced component accessories include part numbers 130-DK-006, DACA-WB-3, and KPW5G112 as listed in supplier data. No additional compatible indoor unit model numbers were provided in the source data; consult Amana system pairing guides to confirm matched indoor coil and air handler selections for rated SEER2 performance.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician familiar with R-32 refrigerant handling, as R-32 is mildly flammable and requires appropriate tools and safety precautions. Disconnect and lock out all electrical power before making any wiring or refrigerant connections. Minimum circuit ampacity is 22.4 amps and maximum overcurrent protection is 25 amps; verify that the branch circuit and disconnect are sized accordingly per NEC requirements. Do not exceed the 100-foot maximum line set length or 90-foot maximum vertical rise specified for this unit.

Technical Specifications

• Cooling Capacity (Rated): 28,400 BTU/h
• Tonnage: 2.5 tons
• SEER2: 16.2
• SEER2 (HSVTC): 17.5
• EER2 (HSVTC): 10
• Power Voltage: 208/230 volts
• Power Phase: 1 phase
• Power Frequency: 60 Hz
• Min. Circuit Amps: 22.4 amps
• Max Overcurrent Protection: 25 amps
• Fan/Compressor Drive Input: 17.6 amps
• Compressor Type: Inverter
• Motor Speed Type: Multi-Speed
• Refrigerant Type: R-32
• Factory Refrigerant Charge: 76 oz
• Pre-Charged Line Length: 15 feet
• Max Line Set Length: 100 feet
• Max Vertical Line Set: 90 feet
• Liquid Pipe Size: 3/8 inches
• Gas Pipe Size (Suction O.D.): 7/8 inches
• Cooling Operation Range (Min): 0 degrees F
• Cooling Operation Range (Max): 115 degrees F
• Installation Configuration: Side Discharge
• Unit Height: 27.375 inches
• Unit Width: 36.625 inches
• Unit Depth: 13.75 inches
• Unit Weight: 129 pounds
• Sound Pressure (High Cooling): 66 dBA
• DOE Regional Compliance: Southeast and North
• Country of Origin: Mexico
• Standard Residential Parts Warranty: 5 years all parts (unregistered)
• Registered Residential Parts Warranty: 10 years all parts; 10 years compressor
• Registered Residential Unit Replacement Warranty: 10 years compressor
• Standard Commercial Parts Warranty: 5 years all parts

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: axv6ss3010
