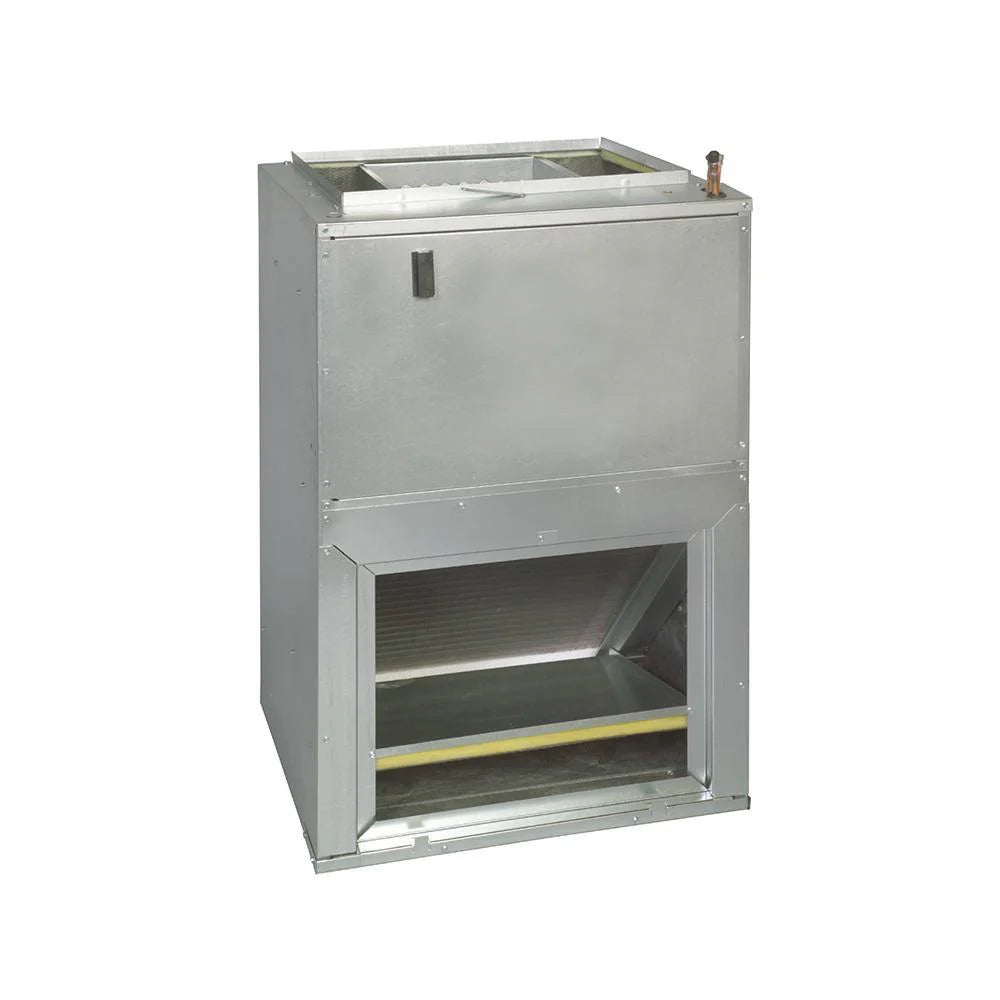

Goodman AWUT310516 AWUT Series 2.5 Ton - Upflow - Air Handler

Product Description

The Goodman AWUT310516 is an air handler from the AWUT Series. It supports 2.5-ton capacity and upflow configuration and includes advanced features for optimal performance. This system is designed for residential HVAC needs.

• Fully adjustable TXV
• Multi-speed motors for heating/cooling
• Thermoplastic drain pan

Product Highlights

This Goodman air handler is equipped with direct drive, multi-speed ECM motors allowing for air volume variation. It includes sequence-controlled nickel chromium heating elements, factory-installed pull-type disconnect, and aluminum tubing coils. Certified by AHRI and ETL.

Product Information

Standard Information

• Brand: Goodman
• MPN: AWUT310516

Technical Specifications

• Type: 1-Piece, Unpainted
• Finish: Galvanized
• Series: AWUT
• Material: Steel
• Flow Rate: 1005 cfm
• Fuse Size: 30 A
• Dimensions: 36 Inch H x 24 Inch W x 21 Inch D
• Filter Size: 18 x 20 x 1 Inch
• Configuration: Dedicated Upflow
• Mounting Type: Wall
• Heater Wattage: 5.0 kW
• Cooling Capacity: 18000 - 30000 BtuH
• Liquid Line Size: 3/8 Inch
• Nominal Capacity: 1.5 - 2.5 ton
• Suction Line Size: 3/4 Inch
• Electrical Ratings: 208/240 V, 60 Hz, 1 Phase
• Suitable For Use With: R-410A
