Product Description

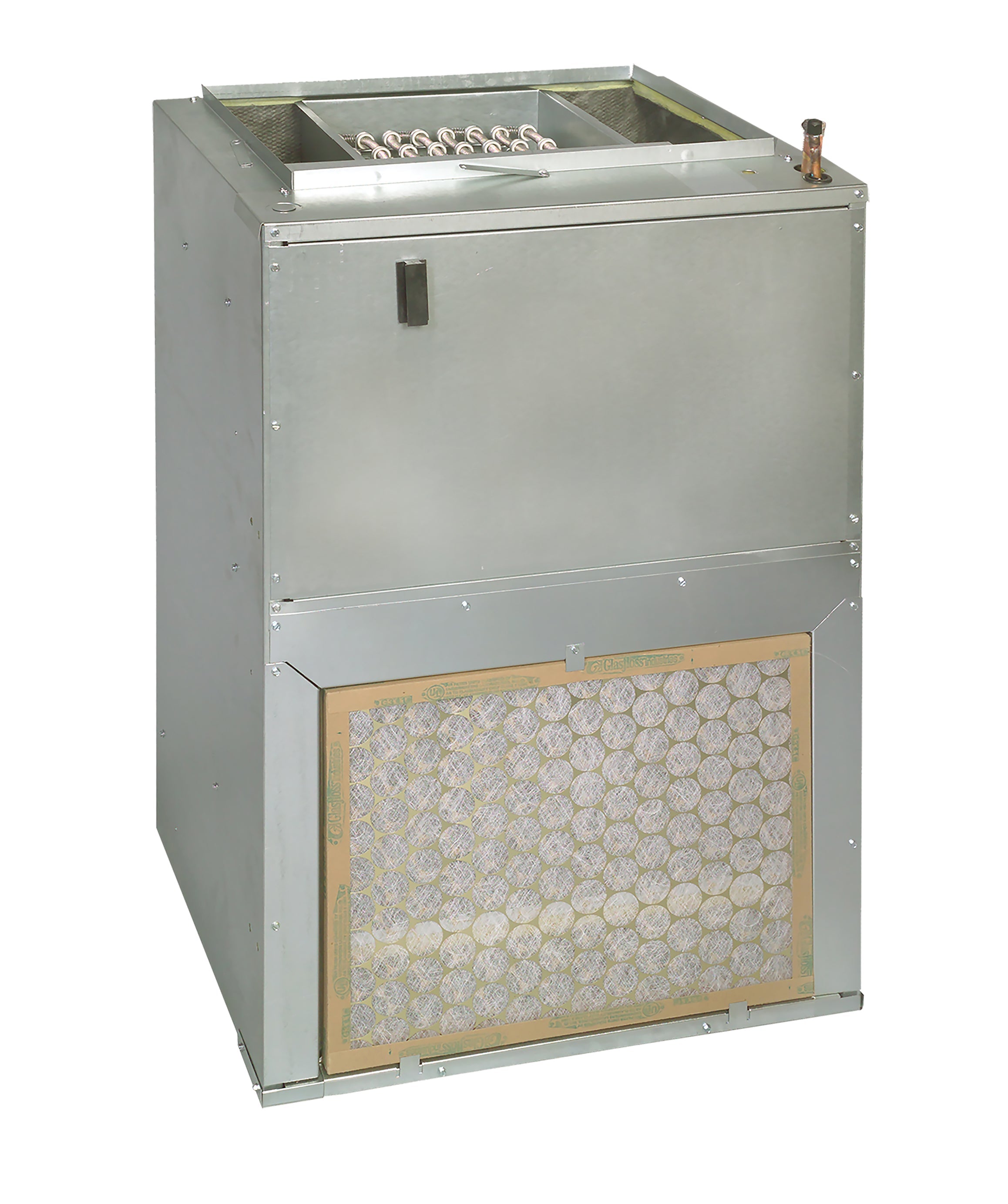

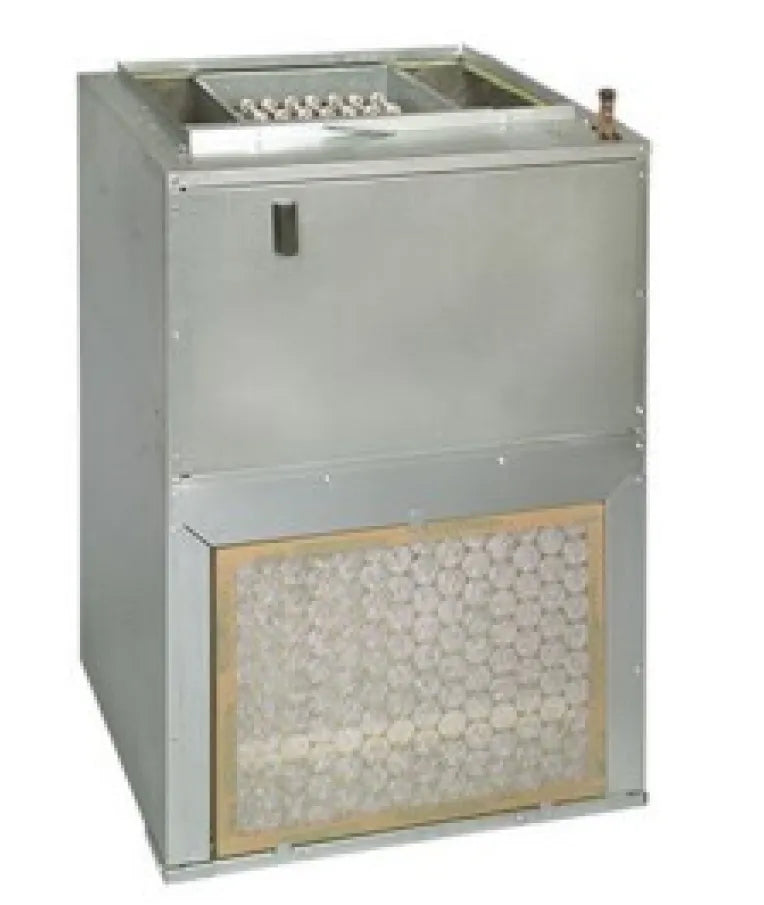

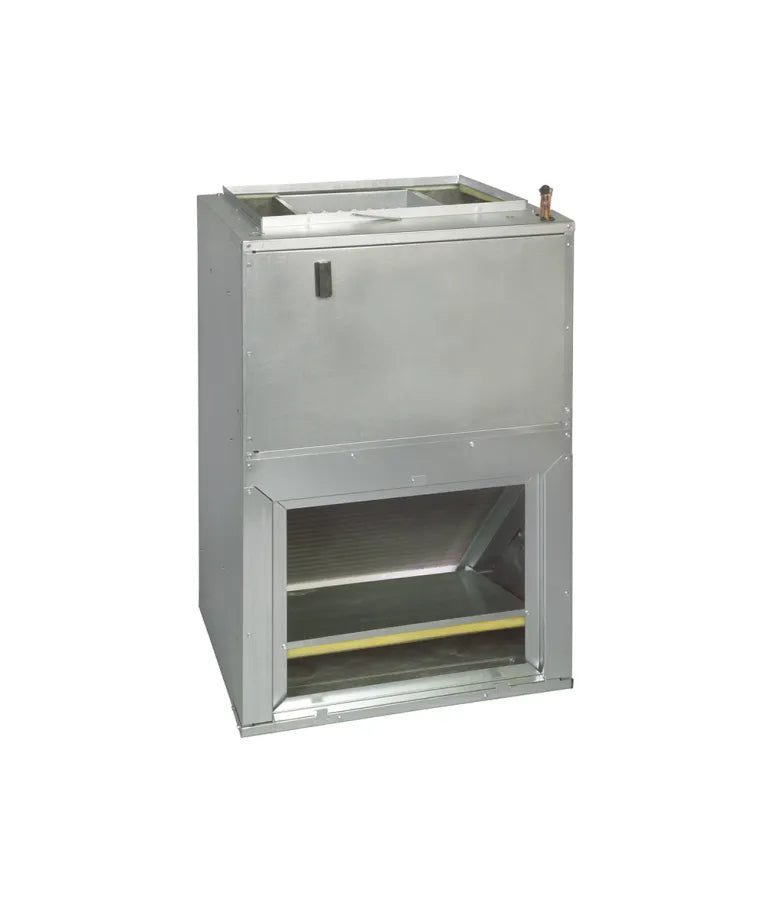

The Goodman AWUF370516 air handler is an integral part of a total home environmental control system. The AWUF reduces indoor humidity and uses a variable speed ECM motor to efficiently move cooled or warmed air. It features a galvanized-steel cabinet and an all-aluminum evaporator coil that optimizes heat transfer.
- Features a galvanized-steel cabinet that is corrosion resistant.
- Equipped with an all-aluminum evaporator coil for optimal heat transfer.
- Includes a built-in filter rack and the filter is included.
Product Highlights
This Goodman air handler provides efficient air movement and humidity control for a comfortable home environment. It is designed for easy installation and long-lasting performance.
Product Information
Standard Information
-
Brand: GOODMAN
-
Manufacturer Part Number: AWUF370516
-
Country of Origin: US
Technical Specifications
-
Size (Tons): 3.0
-
Electric Heat: Yes
-
Capacity: 3.0 Tons
-
Phase: 1
-
Cooling BTU: 36000
-
Product Depth: 16.125 Inches
-
Product Width: 24 Inches
-
Type: Air Handler
-
ETL Listed: Yes
-
Product Height: 36 Inches
-
Product Category: Air Handler
-
ISO Certified: Yes
-
Maximum Air Flow: 1315 CFM
-
Minimum Air Flow: 1030 CFM
-
AHRI Certified: Yes
-
Motor Type: ECM
-
Mount Type: Wall Mounted
-
Drain Outlet Diameter: 3/4 Inch
-
Product Line: AWUF
-
Liquid Connection Size: 3/8 Inch
-
TXV Installed: No
-
Suction Connection Size: 3/4 Inch
-
Electric Heat Capacity: 5.0 kW
-
Refrigerant Type: R-22/R-410A
-
Blower Motor Type: Multi-Speed
-
Minimum Circuit Ampacity: 27 Amps
-
Recommended Breaker Size: 35 Amps
-
Installation Location: Indoor
-
Nominal Capacity: 3 Ton
-
Heating (kW): 5 kW
-
Voltage: 208/240 V
-
Frequency: 60 Hz
-

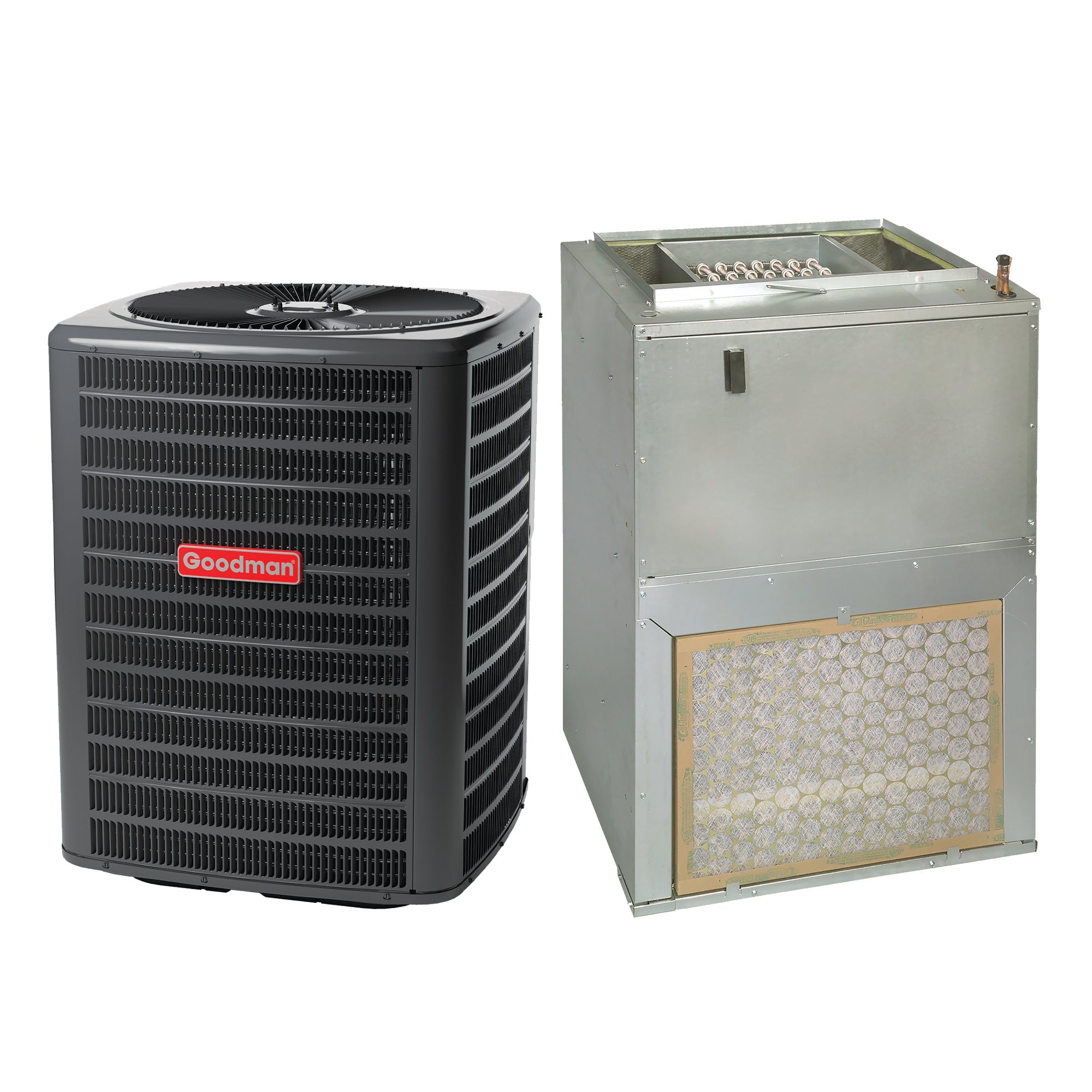

Model Number (s): GSX16S361 - AWUF370516 - TX3N4
-
Brand: Goodman
-
SEER: 14.5
-
Cooling Btu: 34,800
-
Compressor Stage: Single
-
Electrical Phase(s): 1-Phase
-
Decibel Level (dB): 73
-
Suction Valve Size (Inches): 7/8
-
Liquid Valve Size (Inches): 3/8
-
Indoor Unit Depth (Inches): 21
-
Indoor Unit Width (Inches): 24
-
Indoor Unit Height (Inches): 36
-
Model: AWUF370516
-
Configuration: Wall Mounted
-
Air Flow Direction: Upflow
-
Line Set Connection Type: Sweat
-
Liquid Line Size: 3/8 inch
-
Max Overcurrent Protection: 30 amps
-
Primary Heating Capacity: 15,001 - 20,000
-
Suction Line Size: 3/4 inch
-
System Application Type: Central Split Systems
-
Variation: AWUF370516BC
-
Blower: Multi-Speed
-
Maximum CFM: 1,315
-
Blower Motor: Multi Speed
