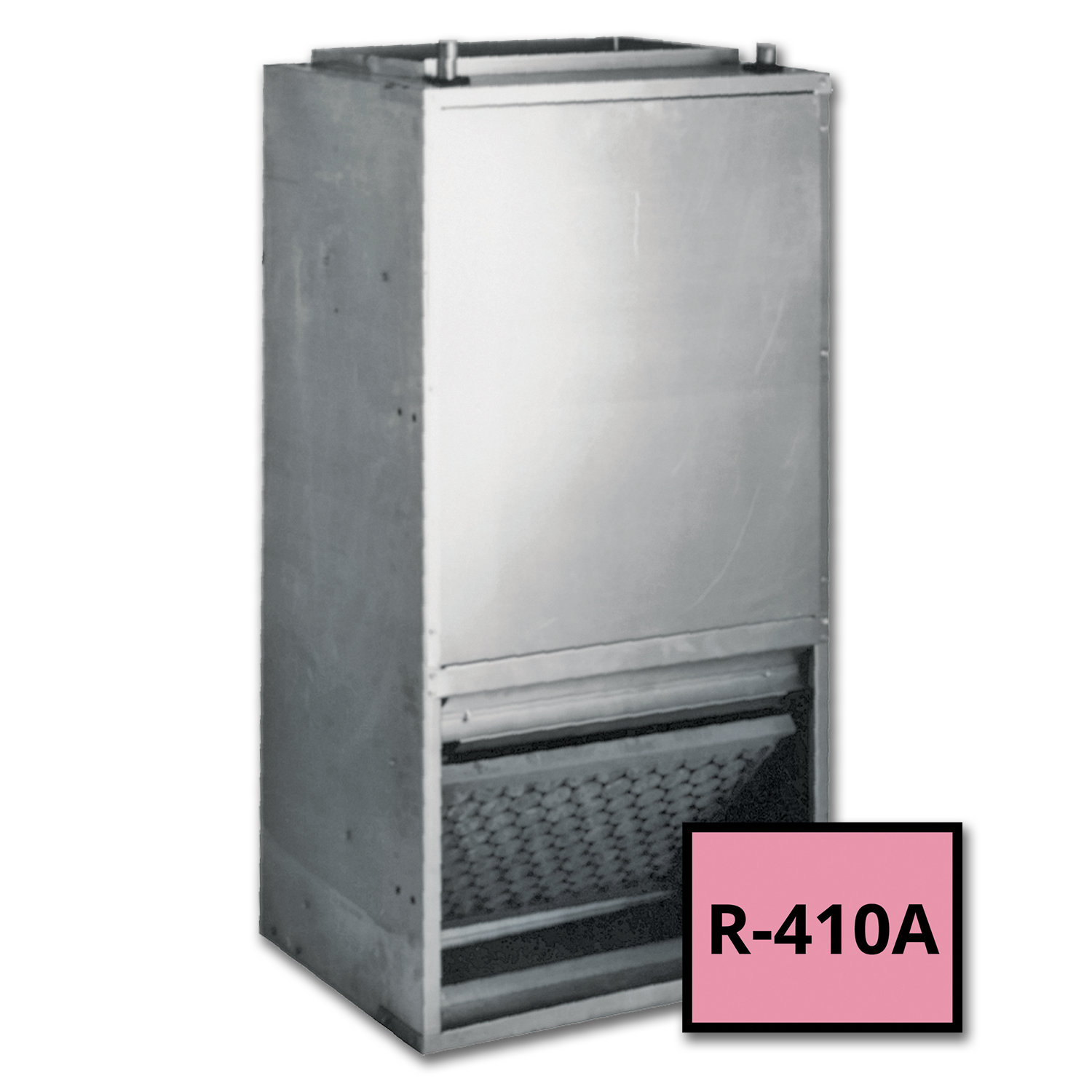

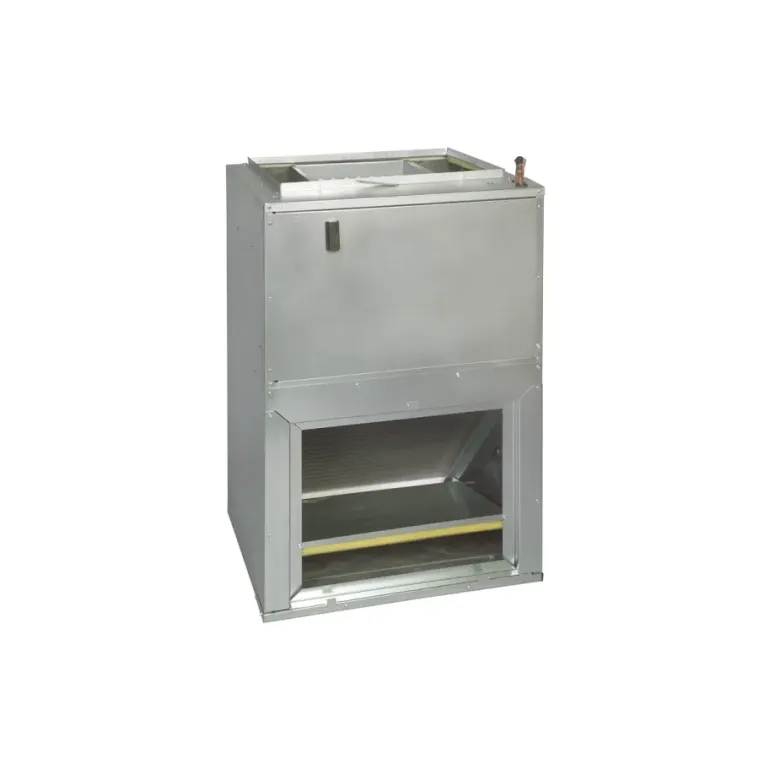

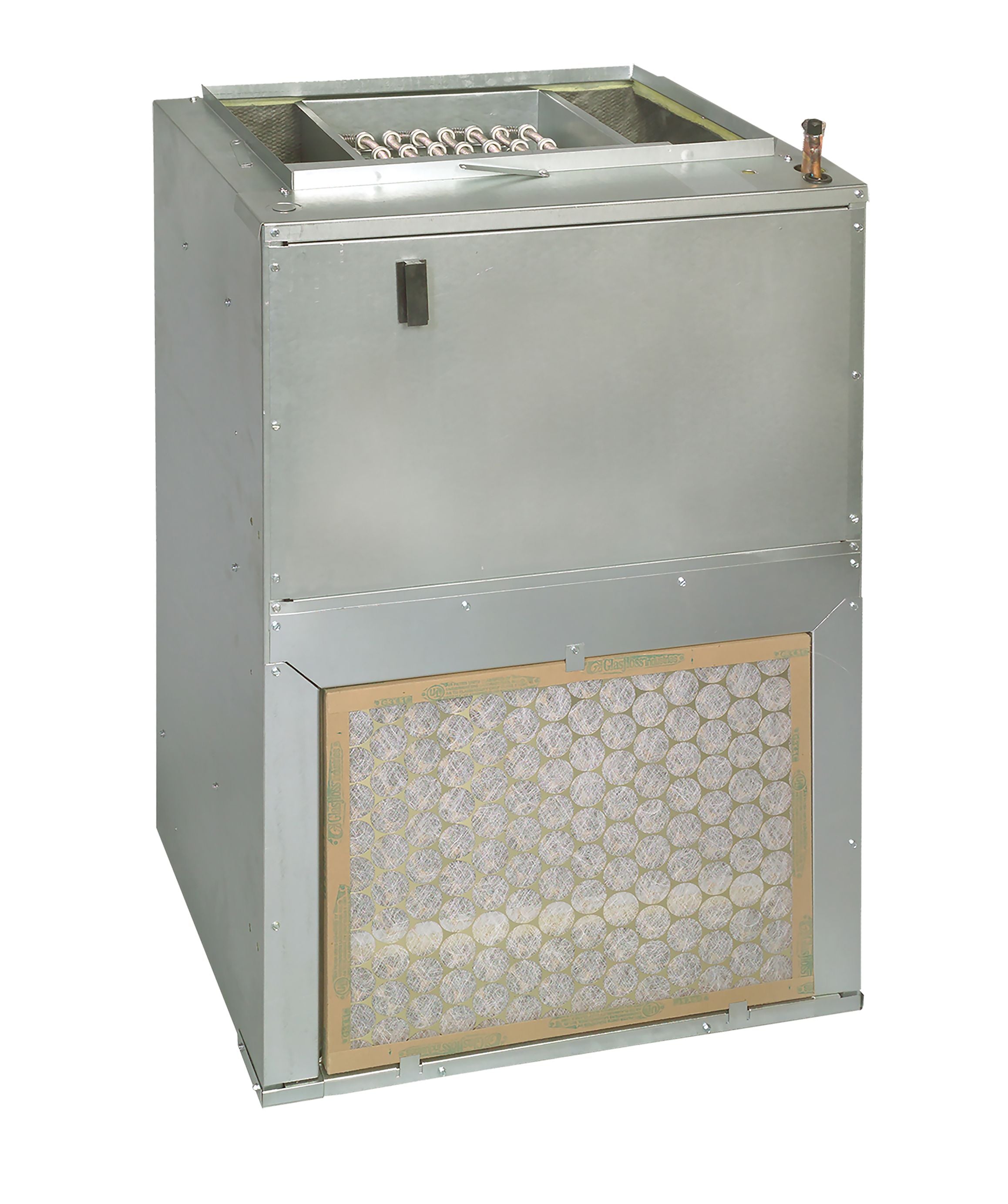

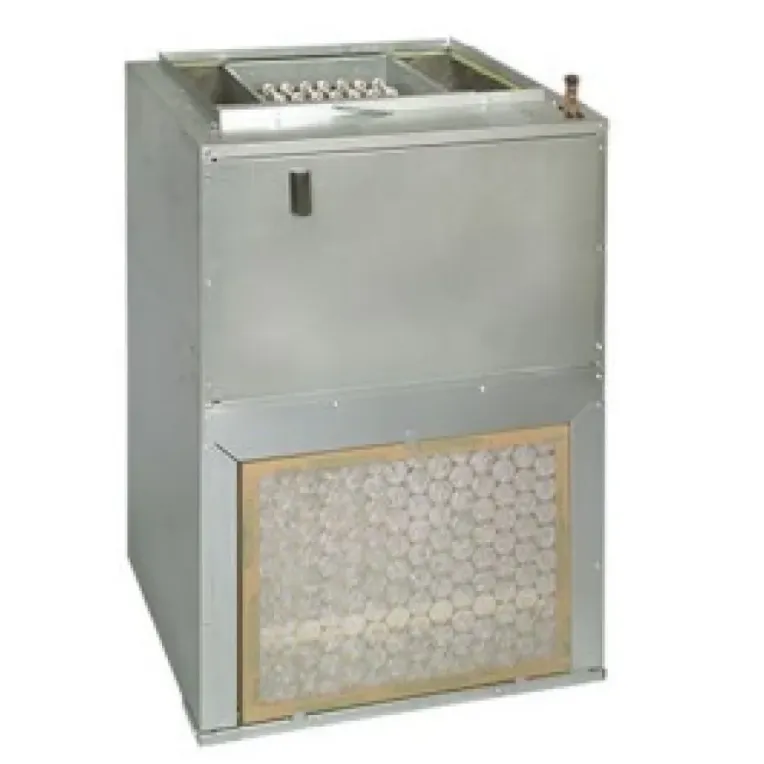

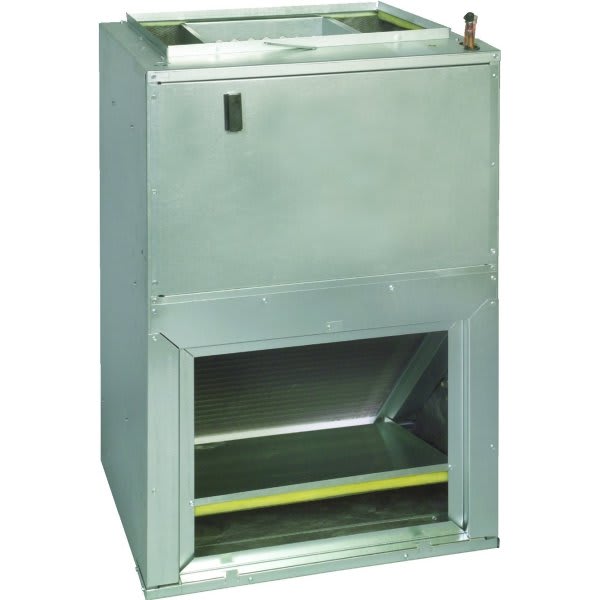

GOODMAN AWUF250816 Goodman AWUF2508 Air Handler with Multi-Speed ECM Motor

Product Description

The Goodman AWUF250816 is an air handler designed for wall mounting in indoor environments. This unit features a multi-speed ECM motor for efficient air circulation and includes an all-aluminum evaporator coil. It is compatible with both R-22 and R-410A refrigerants, making it versatile for various systems. The unit comes with a thermoplastic drain pan, offering both primary and secondary drain connections.

• Wall-mounted design for indoor use

• Multi-speed ECM motor for optimal airflow

• Includes built-in filter rack and disconnect switch

Product Highlights

This air handler helps in providing efficient heating and cooling solutions, making it ideal for residential and commercial applications.

Product Information

Standard Information

• Brand: Goodman

• Model: AWUF250816

Technical Specifications

• Cooling Capacity: 2.0 Tons

• Cooling BTU: 24000

• Electric Heat Capacity: 8.0 kW

• Voltage: 208/230 Volts

• Refrigerant Type: R-410A

• Maximum Air Flow: 899 CFM

• Product Height: 36 Inches

• Product Width: 20.25 Inches

• Product Depth: 16.125 Inches

• Weight: 100.00 lb
