Product Description

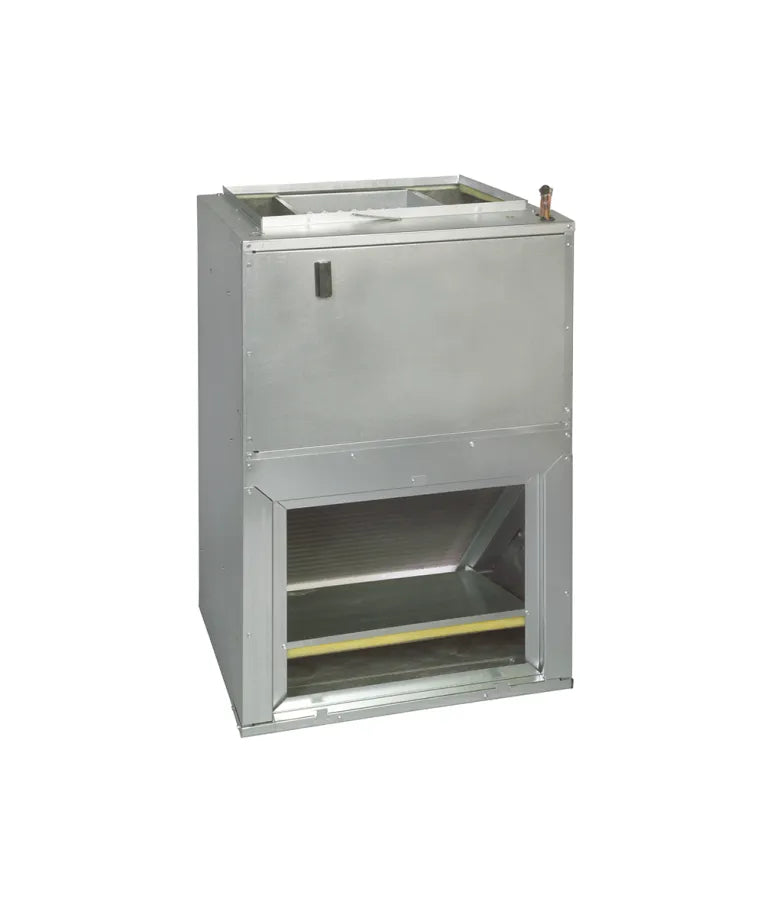

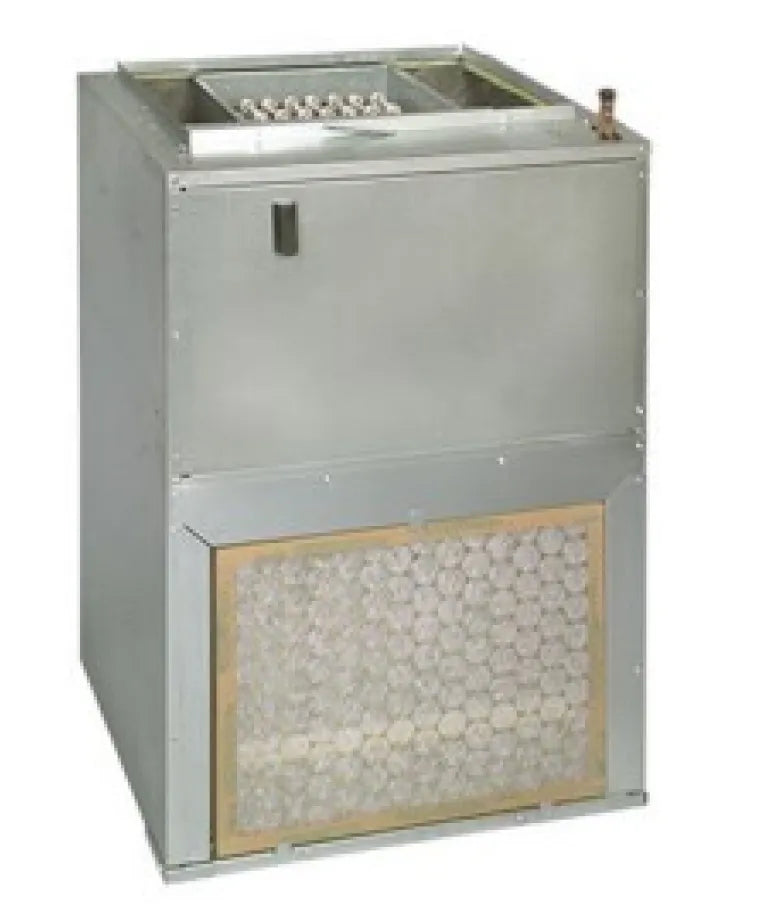

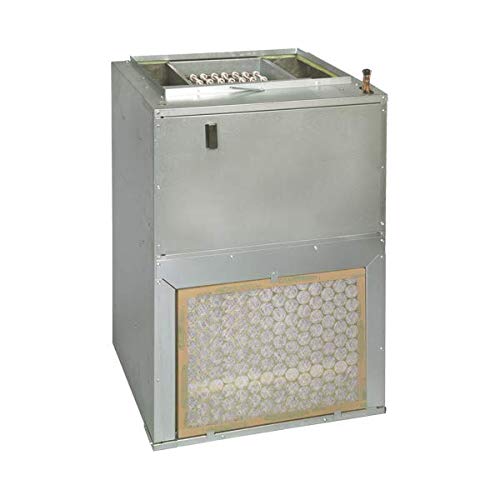

The Goodman AWUF190816 wall-mount air handler features a multi-speed ECM flowrater. Designed as an integral part of a total home environmental control system, it reduces indoor humidity. It has a heating capacity of 8 kW and a cooling capacity of 18,000 BTU, operating at 208/240 V, 1 Phase, 60 Hz.
- Equipped with a check flowrater for cooling-only and heat pump operation
- Direct-drive, multi-speed motor allows air volume variation for heating/cooling
- Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
Product Highlights
This Goodman air handler features an all-aluminum evaporator coil, galvanized-steel cabinet, and easy installation with a provided wall hanging bracket.
Product Information
Standard Information
-
Brand: GOODMAN
-
Manufacturer Part Number: AWUF190816
-
Country of Origin: UNITED STATES
Technical Specifications
-
Brand: Goodman
-
Model / MPN: AWUF190816
-
Size: 8 kW (Heating), 18K BTU (Cooling)
-
Manufacturer: Goodman
-
Product Type: AIR_CONDITIONER
-
Product Group: Home
-
Condition: New
-
Product Category: Air Handler
-
UPC: 663051576599
-
Type: Air Handler
-
Product Line: AWUF
-
Refrigerant Type: R-22/R-410A
-
Blower Motor Type: Multi-Speed
-
Motor Type: ECM
-
Mount Type: Wall Mounted
-
Installation Location: Indoor
-
Electric Heat: Yes
-
TXV Installed: No
-
Capacity: 1.5 Tons
-
Cooling BTU: 18000
-
Electric Heat Capacity: 8.0 kW
-
Maximum Air Flow: 899 CFM
-
Minimum Air Flow: 635 CFM
-
Voltage: 240
-
Phase: 1
-
Frequency: 60 Hz
-
Minimum Circuit Ampacity: 36 Amps
-
Recommended Breaker Size: 45 Amps
-
Suction Connection Size: 5/8 Inch
-
Liquid Connection Size: 3/8 Inch
-
Drain Outlet Diameter: 3/4 Inch
-
Product Height: 36 Inches
-
Product Width: 20 1/4 Inches
-
Product Depth: 16 1/8 Inches
-
ETL Listed: Yes
-
AHRI Certified: Yes
-
ISO Certified: Yes
-
Amps @ 240V: 45.0
-
CFM @ 0.5" ESP: 800
-
Configuration: Wall Mount
-
Depth: 16-1/8"
-
Height: 36"
-
Liquid Conn.: 3/8"
-
Max. Fuse Size: 40
-
Min. Circuit Amps: 41.3
-
Nom. CFM: 800
-
Nom. Tons: 1-1/2
-
Nom. kW: 8.0
-
Suction Fitting: 5/8"
-
Volts: 208/230
-
Width: 20-3/16"
-
Product Length (in): 20.25
-
Air Flow Direction: Upflow
-
Product Width (in): 16.125
-
Blower Motor: Multi Speed
-
Cooling Capacity: 1.5 Ton
-
Electrical Phase: 1-Phase
-
Heat Strip Compatibility: Up to 8 kW
-
Line Set Connection Type: Sweat
-
Liquid Line Size: 3/8 inch
-
Max Overcurrent Protection: 40 amps
-
Primary Heating Capacity: 25,001 - 30,000
-
Suction Line Size: 5/8 inch
-
System Application Type: Central Split Systems
