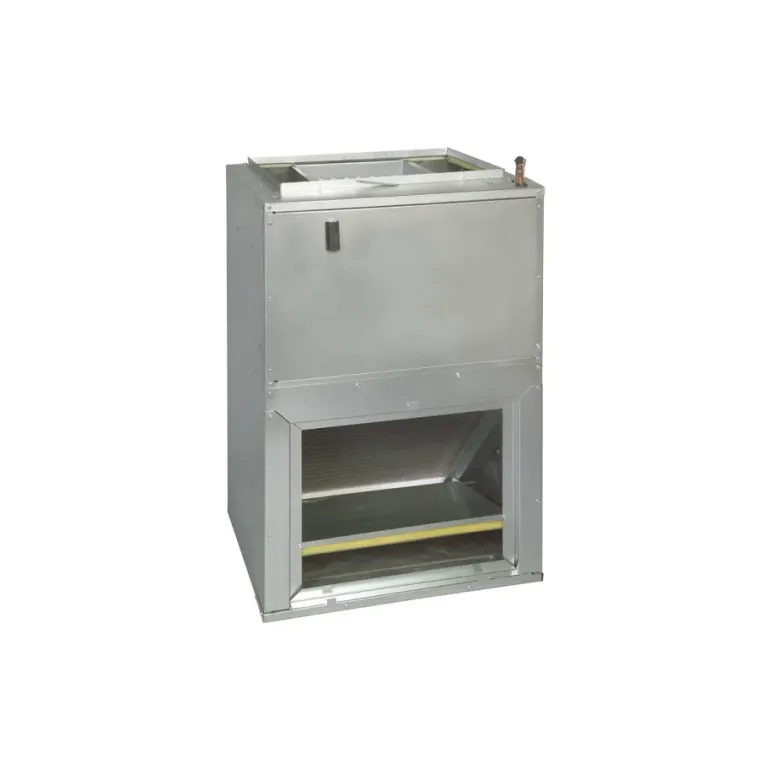

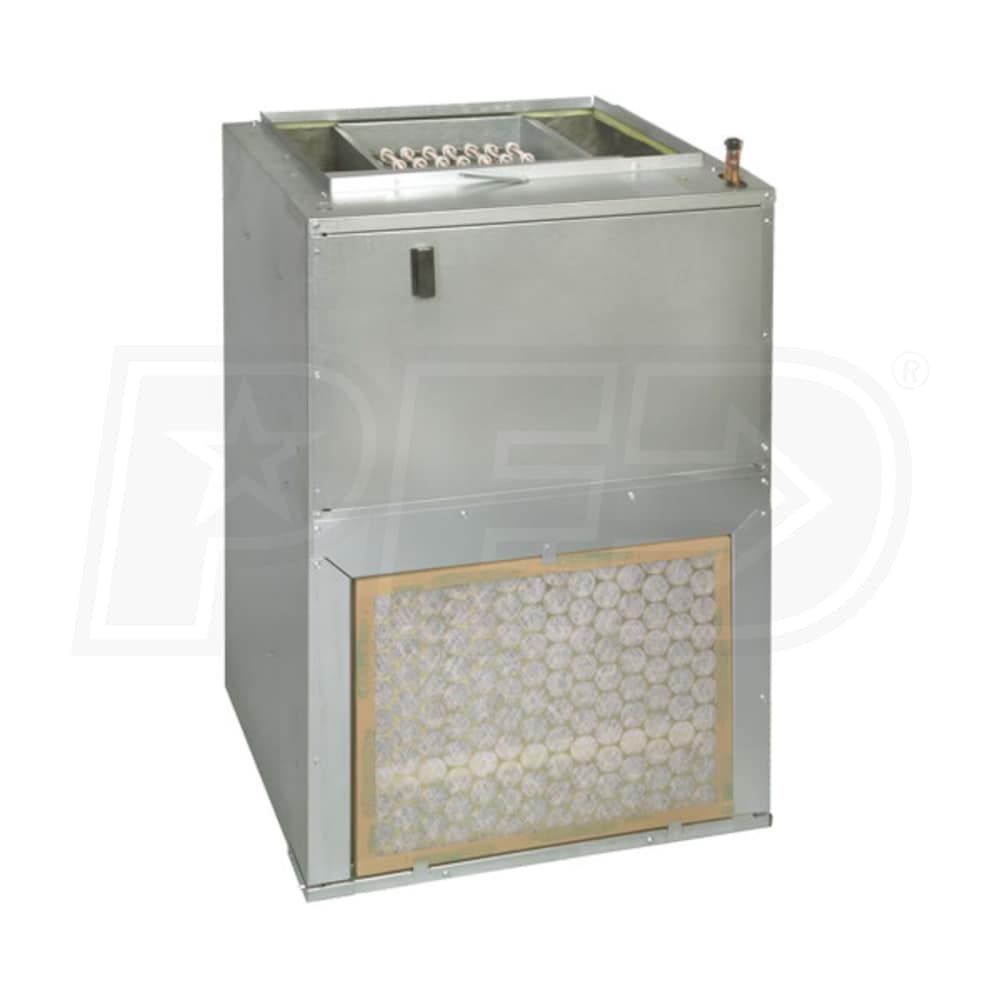

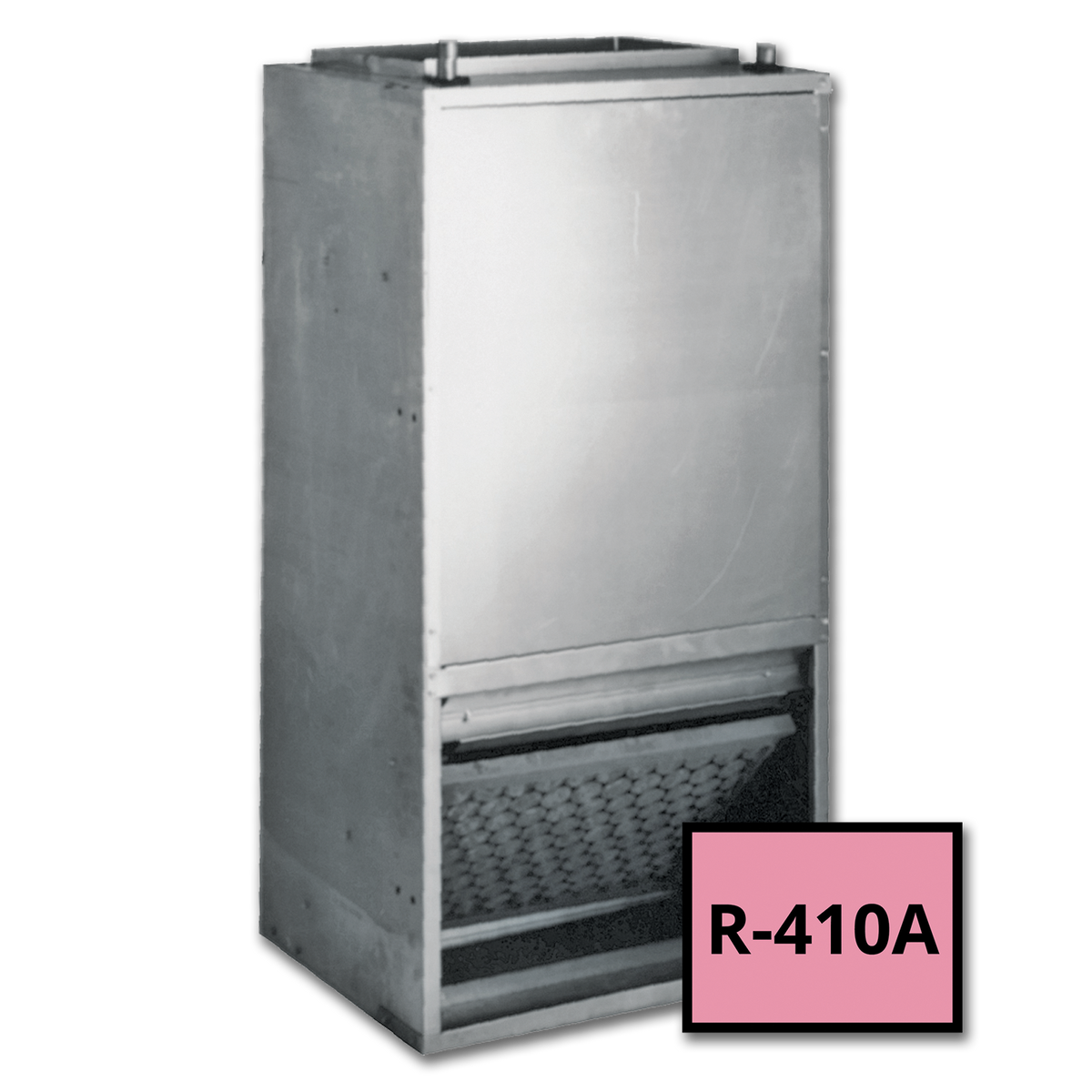

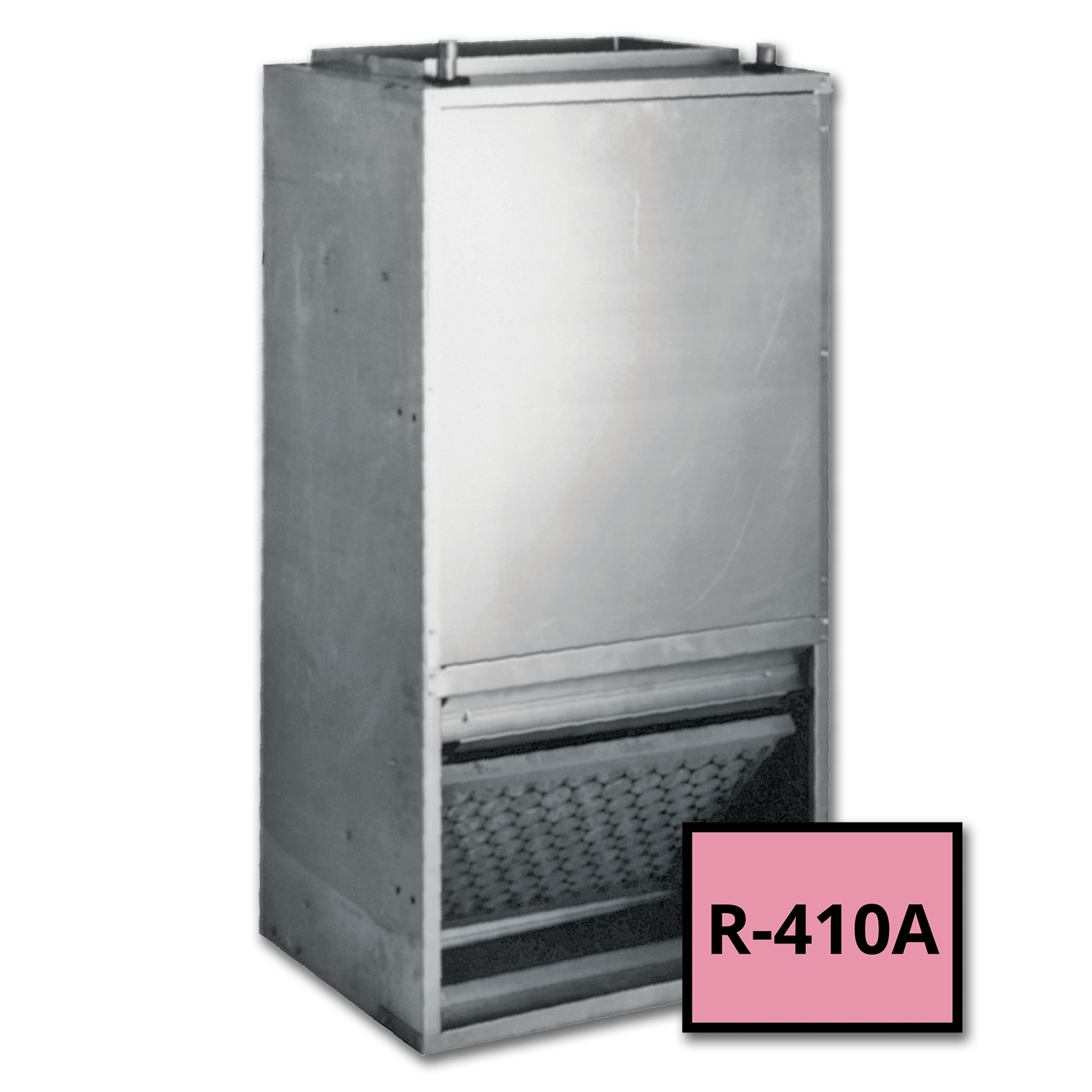

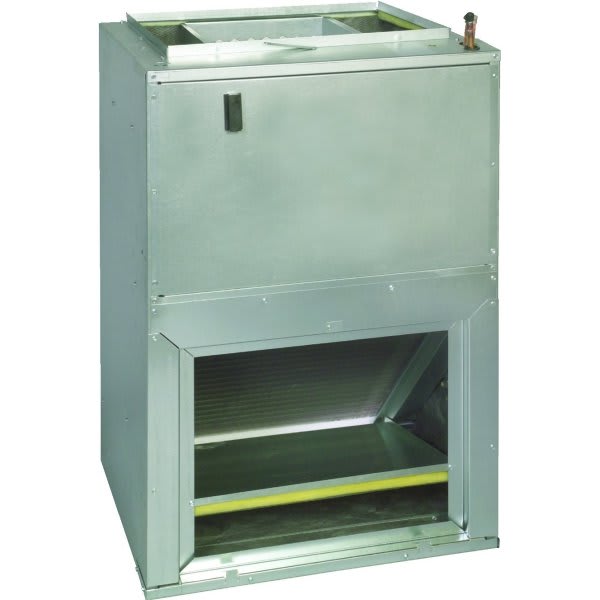

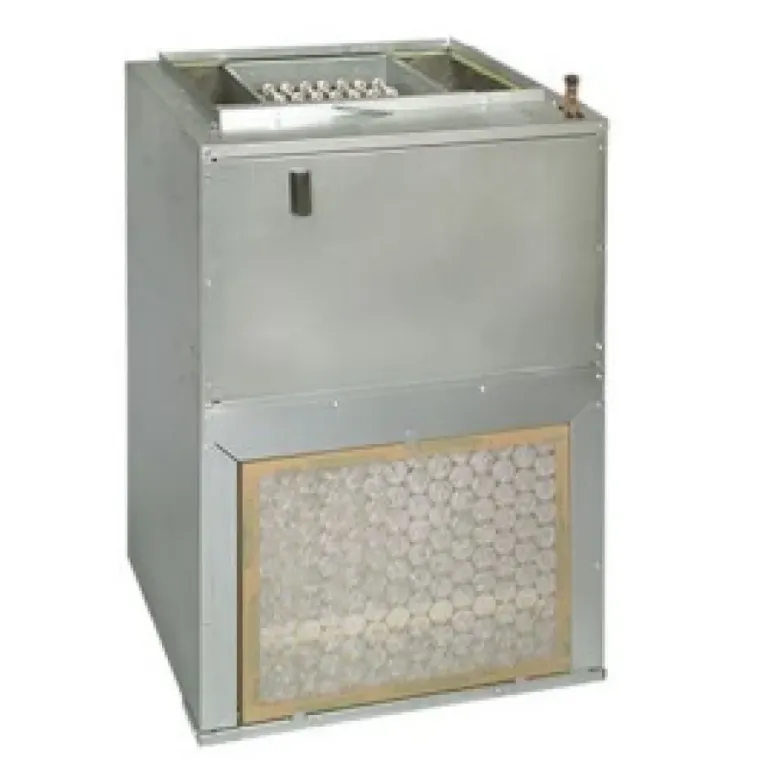

Goodman AWUF190516 1.5 Ton Wall Mount Air Handler

Product Description

The Goodman AWUF1905 is a wall-mounted air handler with a multi-speed ECM motor. It works with R-22 or R-410A refrigerants. The durable galvanized steel cabinet protects internal components. The all-aluminum evaporator coil ensures efficient cooling. This unit includes a built-in filter rack and a thermoplastic drain pan that supports both primary and secondary drain connections.Includes check flowrater for optimal performance.Sequence-controlled heating elements rated at 5 kW.Cabinet air leakage is less than 2.0% at 1.0 inch H2O in compliance with ASHRAE standard 193.

Product Highlights

Ideal for residential applications, the Goodman AWUF1905 provides efficient airflow and temperature control.

Product Information

Standard Information

• Manufacturer: Goodman

• MPN: AWUF190516

Technical Specifications

• Capacity: 1.5 Tons

• Cooling BTU: 18000

• Electric Heat Capacity: 5.0 kW

• Maximum Air Flow: 899 CFM

• Minimum Air Flow: 520 CFM

• Input Voltage: 208/230 Volts

• Phase: 1

• Frequency: 60 Hz

• Minimum Circuit Ampacity: 17 Amps

• Recommended Breaker Size: 20 Amps

• Suction Connection Size: 5/8 Inch

• Liquid Connection Size: 3/8 Inch

• Drain Outlet Diameter: 3/4 Inch

• Height: 36 Inches

• Width: 20.25 Inches

• Depth: 16.125 Inches

• Weight: 70 Pounds

• Mount Type: Wall Mounted

• Motor Type: ECM

• Blower Motor Type: Multi-Speed

• Refrigerant Type: R-410A

• Certifications: AHRI Certified, ETL Listed, ISO Certified
