Description

Product Description

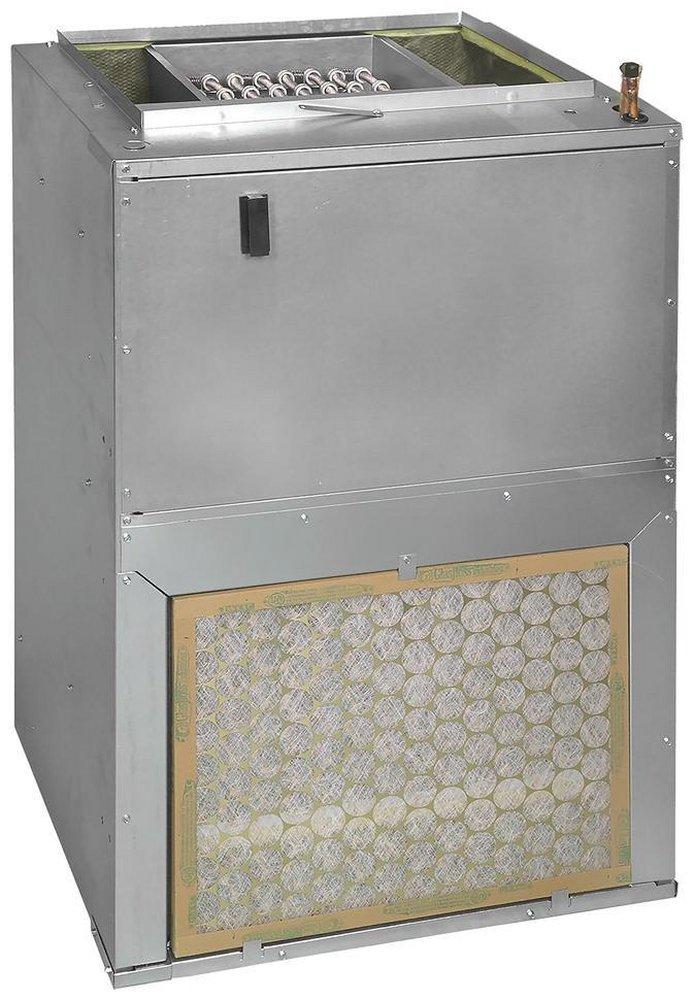

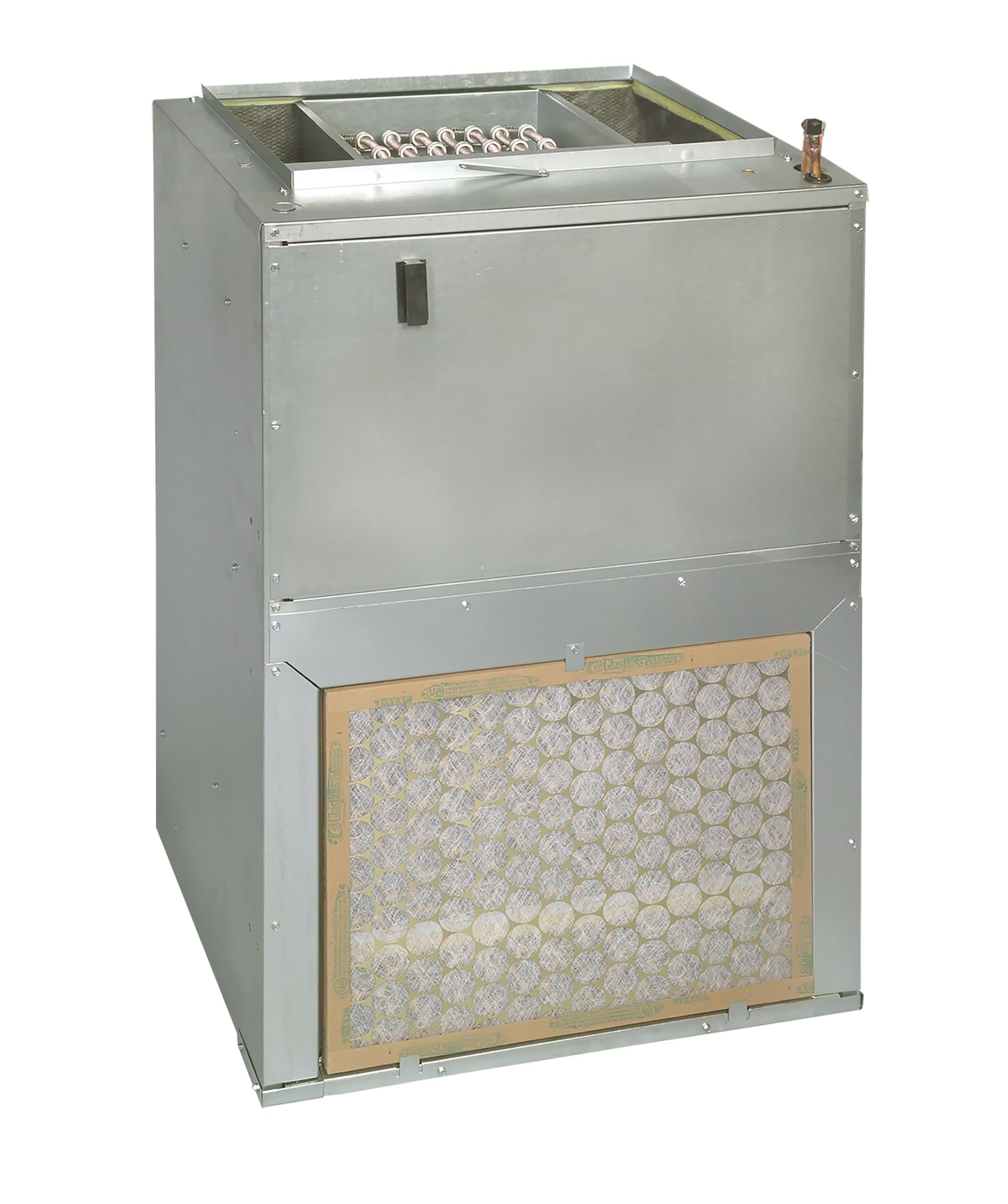

The GOODMAN AWST36LU1308 is a ducted wall-mounted air handler with a multi-speed ECM motor. Designed for residential single-family use, this unit features a 24-inch cabinet with TXV expansion and operates as a heat pump. It has a cooling capacity of 36000 Btu/H and is compatible with R-32 refrigerant.

Key Features

  • Equipped with a fully adjustable TXV for efficient refrigerant metering.
  • Direct-drive, multi-speed motors allow air volume variation for heating and cooling.
  • All-aluminum coil for improved reliability and quality.
Technical Specifications
Product Category
Unitary
Product Class - (PIM)
Air Handler
System Family
Unitary Split System
Function Category
Heat Pump
Product Type
AIR_CONDITIONER
Unit Type
Indoor
Market Type
Residential-Single Family
Product Family
AWST
Series Name
AWST
Installation Type
Ducted Wall Mounted
Communication Feature
No
Cooling Capacity - (Nominal)
36000 Btu/H
Dimensions - (Blower Diameter)
10 in
Dimensions - (Blower Width)
8 in
Dimensions - (Evap Wheel Diameter)
10 in
Dimensions - (Evap Wheel Width)
8 in
Dimensions - (Unit Depth)
21 in
Dimensions - (Unit Height)
36 in
Dimensions - (Unit Width)
24 in
Expansion Device
TXV
Motor Speed Type
Multi Speed ECM
Number of Speeds
5.0
Tonnage
3.0
Condensate Drain Outlet
3/4 in
Pipe Size Liquid
3/8 in
Power Voltage
208/230 V
Power Frequency
60 Hz
Power Phase
1 Ph
Indoor Blower FLA
3.8 A
Max Overcurrent Protection
40/45 A
Min. Circuit Amps
37.7/42.8 A
Min. Voltage
197 V
Evap Coil Face Area (ft_)
3.35
Evap Motor RPM
1200 r/min
Pipe Size Gas
3/4 in
Proposition 65 Label
Yes
Size
3 TON
Manufacturer
Goodman
Product Group
Home Improvement
Refrigerant
R-32
Type
Stud Mount
Ton
3
Electric Heat (kW)
8
Line Sizes (Liq x Suc)
3/8 in x 3/4 in
Catalog Page
HVAC: 15
Brand
GOODMAN
Manufacturer Part Number
AWST36LU1308
