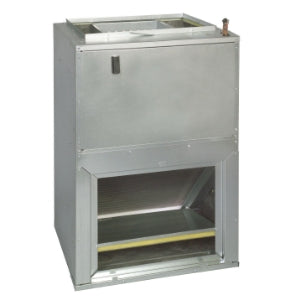

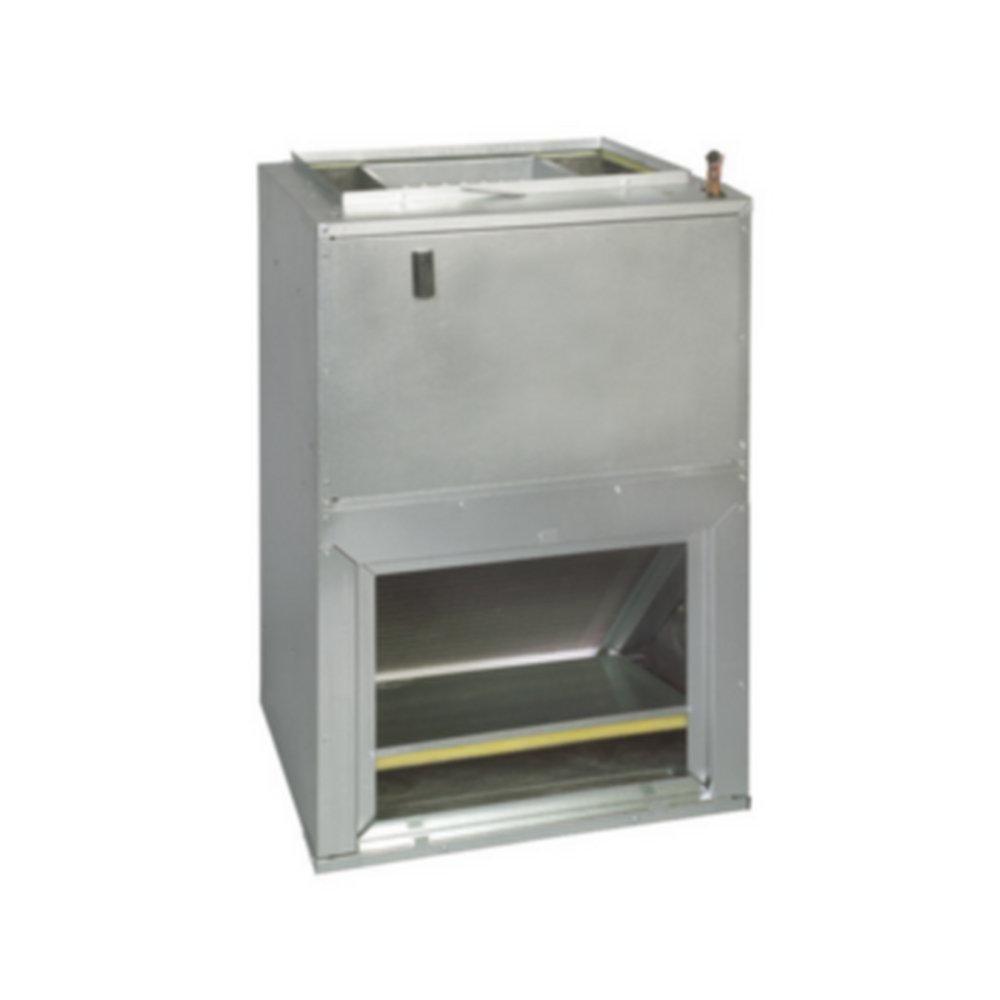

Goodman AWSF36LU1610 AWSF - 3.0 Ton - Air Handler - Wall Mount - 208-230/1/60 - ECM Motor - 10 kW

Product Description

The Goodman AWSF36LU1610 is an air handler designed for wall mounting. It features a multi-speed ECM motor that circulates air efficiently while controlling indoor humidity. The unit's all-aluminum evaporator coils and built-in filter rack enhance indoor air quality and comfort. It is suitable for both heating and cooling scenarios.

• All-aluminum evaporator coil enhances heat transfer.
• Wall mounting capability with included bracket for easy installation.
• Electric heat option with rust-resistant heating elements.

Product Highlights

The unit delivers consistent air circulation and comfort with its smart design and durable build. An extended warranty of ten years encourages product registration.

Product Information

Standard Information

• Type: Air Handler
• Mount Type: Wall Mounted

Technical Specifications

• Cooling Capacity: 36000 BTU
• Electric Heat Capacity: 10 kW
• Dimensions: 21 inches (depth) x 24 inches (width) x 36 inches (height)
• Air Flow: 1360 CFM (maximum), 1114 CFM (minimum)
• Voltage: 208/230 Volts
• Warranty: 10 years limited
• Refrigerant Type: R-410A
• Installation Location: Indoor
