Goodman AWSF36LU1608 Air Handler 3.0 Ton Wall Mount Replacement MPN

Product Description

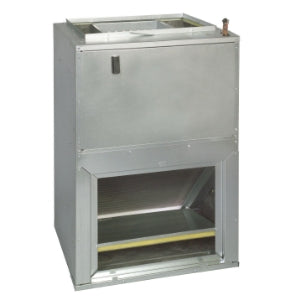

Goodman AWSF36LU1608 is a three-ton air handler designed for wall mounting. This unit is part of a complete home environment control system and effectively manages indoor humidity. The model features a multi-speed ECM motor to circulate cooled or heated air efficiently.

• Durable all-aluminum evaporator coil
• Fast installation with included wall hanging bracket
• Electric heat capability of eight kilowatts

Product Highlights

The Goodman AWSF36LU1608 ensures reliable indoor comfort with its energy-efficient components. It has a built-in filter rack and a thermoplastic drain pan that supports effective moisture control.

Product Information

Standard Information

• Brand: Goodman
• Model Number: AWSF36LU1608

Technical Specifications

• Cooling Capacity: 36,000 BTU
• Electric Heat Capacity: 8 kW
• Voltage: 208/230 Volts
• Phase: 1
• Dimensions: 21 inches (D) x 24 inches (W) x 36 inches (H)
• Shipping Weight: 109 pounds
• Maximum Air Flow: 1360 CFM
• Warranty: 10 Years (limited parts warranty)
• Refrigerant Type: R-410A
